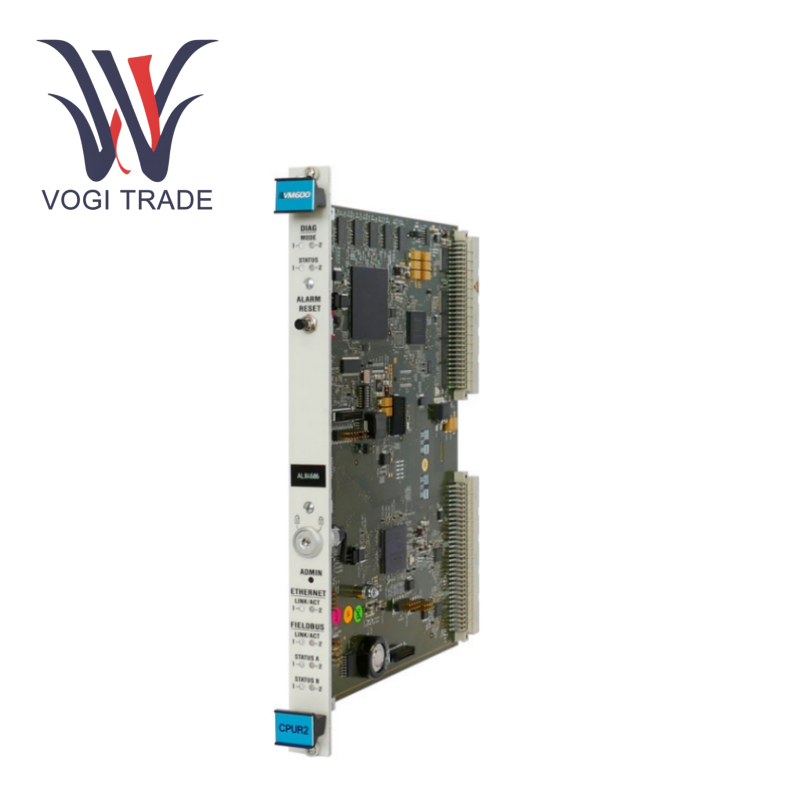

Brand: Vibro-Meter Description:Rack Controller Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: ShenZhen CPUR2 600-026-000-002 is a rack control and communication interface card that supports seamless system integration, hot-swap configuration and real-time data processing.
|
Manufacture |
Vibro-Meter |
|
Model Number |
CPUR2 |
|
Ordering Number |
600-026-000-002 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
85371090 |
|
Dimension |
187×262×30mm |
|
Packing Dimension |
460×350×150mm |
|
Weight |
1kg |
Core functions
1. Dual-role integrated architecture
Rack control center: manage hot-swap configuration of protection cards such as MPC4/XMx16 in VM600 system (automatic reload parameters)
2. Industrial protocol gateway: synchronously transmit raw data and health status through PROFIBUS DP (J1/J4 interface) and Modbus TCP (J2/J5 interface)
Performance parameters
Communication performance
•Dual Gigabit Ethernet (J6/J7): 1Gbps transmission rate, 100m transmission distance
• PROFIBUS DP: 12Mbps rate, 244 bytes/frame processing capability
Data processing
• 131,072 register capacity
•CPUR2 600-026-000-002 supports 32 mathematical functions such as arithmetic/logic operations/data freeze detection
Reliability
• Operating temperature: 0-65℃ (full load)
• Dual-channel communication redundancy switching time <50ms
Electrical characteristics • 5VDC power supply (7.5W peak)
• Relay load: 5A/240VAC (15,000 mechanical lifespan)
Differentiation
1. Innovation in operation and maintenance efficiency
One-touch reset: Front panel AR button clears the alarm of the protection card lock of the entire rack (instead of resetting each card)
Key security: Physical lock restricts MPSx software operation permissions (compliant with ISO 13849 security architecture)
2. Industrial-grade toughness design
700V RMS isolated RS-485 interface (EN 61326 immunity certification)
CPUR2 supports -20℃ cold start and 65℃ full load continuous operation
Configuration management
1. VibroSight® software support
Drag-and-drop field mapping: associate vibration/temperature and other measured values to Modbus registers
Automatically generate diagnostic logs: record card health status (support NTP time synchronization)
Drag-and-drop field mapping: associate vibration/temperature and other measured values to Modbus registers
Automatically generate diagnostic logs: record card health status (support NTP time synchronization)
Application scenario
Gas turbine protection: SGT-800 unit of a power plant passed Product full name: CPUR2 600-026-000-002 rack controller and communications interface card pair integrates 16-point vibration protection, PROFIBUS DP directly connected to Siemens PCS7 system
Hydropower station monitoring: single rack manages 12 groups of XMv16 cards (192 vibration channels), Modbus TCP uploads pre-processed data to the central control platform
