Brand: Vibro-Meter Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 36 Payment Term: T/T Shipping Port: ShenZhen EA401 913-401-000-013-A2-E085-F5-G000 is an extension cable that supports the construction of a 10-meter measurement system and can ensure stable monitoring with the TQ401 probe in high temperature and vibration scenarios.
|
Manufacture |
Vibro-Meter |
|
Model Number |
EA401 |
|
Ordering Number |
913-401-000-013-A2-E085-F5-G000 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031809090 |
|
Dimension |
8.5m |
|
Packing Dimension |
10×25cm |
|
Weight |
1.8 kg |
Core parameters
Length configuration:
Extension cable length: 8.5 meters
Total system length: Requires TQ401 probe cable (e.g. 1.5 meter probe cable + 8.5 meter extension cable = 10 meter system).
Note: The minimum supported TSL is 8.5 meters (10 meter system must meet this lower limit)
Explosion-proof certification:
Option A2: Meets Ex ia IIC T6-T3 Ga Intrinsically safe certification (applicable worldwide)
Protection configuration:
Option F5: Standard IP172 interconnect protection.
Cable protection: Optional stainless steel hose (KS107) or heat shrink tubing (need to be ordered separately).
Temperature Range:
Cable/Connector: -40°C to +200°C (operating)
Probe End : -40°C to +180°C (±5% accuracy)
Protection Rating: Probe head meets IP68 (completely dustproof and continuously submerged in water).
Vibration/Shock:
Vibration: 5g (10–500 Hz)
Shock: 15g (11ms half-sine wave)

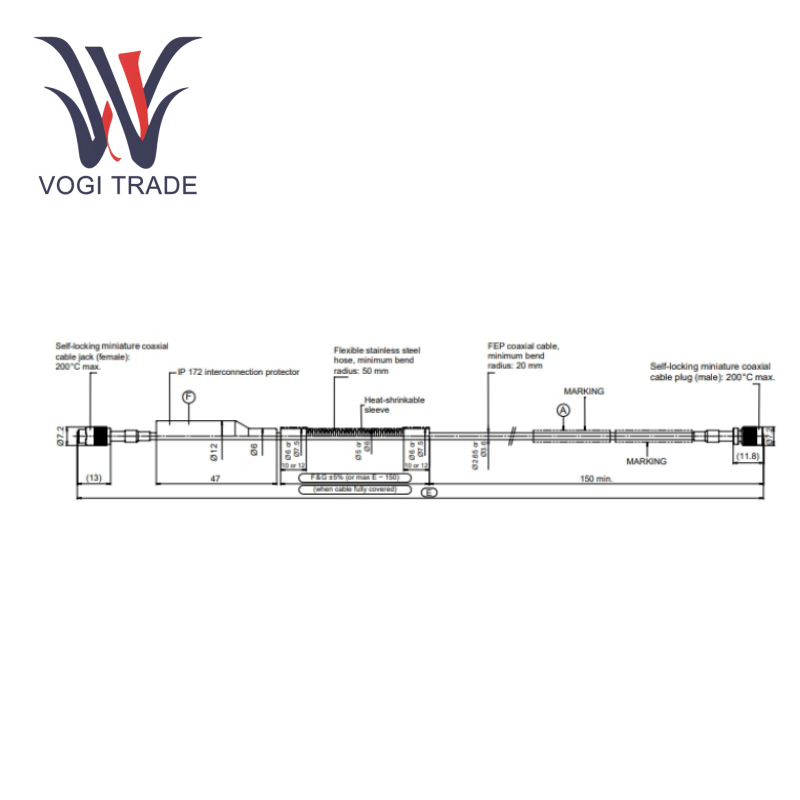

Physical Characteristics:
Cable Construction: FEP-jacketed 50Ω coaxial cable (2.65 or 3.6mm diameter).
Connector: Self-locking micro coaxial interface (manual locking is required).
System Compatibility:
Fully interchangeable with TQ401 probe and IQS450 signal conditioner.
This extension cable supports VM600/VibroSmart® monitoring system power supply.
Key Application Scenarios
Rotating Machinery Monitoring: Meggitt Vibro-Meter EA401 913-401-000-013-A2-E085-F5-G000 provides real-time measurement of vibration/axial displacement of turbine and compressor shafts (accuracy ±0.5% full scale, response DC-20kHz).
Explosion-proof Environment: Safe operation in Zone 0 (continuous explosive gas environment), Vibro-Meter 913-401-000-013-A2-E085-F5-G000 supporting key equipment in oil, gas and chemical industry.
Long-distance deployment: 10-meter system covers large units (such as hydropower turbines) without signal attenuation.
High-maintenance design: Vibro-Meter EA401 can quickly replace cables or probes to reduce downtime (compatible with VM600/VibroSmart® online monitoring system).
System Integration Instructions
Must be paired with: TQ401 probe + IQS450 signal conditioner (output: -1.6V~-17.6V or -15.5mA~-20.5mA).
Explosion-proof installation requirements: In Ex nA mode, IQS450 needs to be placed in a ≥IP54 housing
Calibration material: The default target material is VCL 140 steel (other alloys can be customized)
