Brand: Vibro-Meter Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 45 Payment Term: T/T Shipping Port: ShenZhen Product Introduction EA402 913-402-000-013-A2-E045-F5-G000 is an extension cable that ensures that the eddy current non-contact measurement system can stably transmit displacement signals.
|
Manufacture |
Vibro-Meter |
|
Model Number |
EA402 |
|
Ordering Number |
913-402-000-013-A2-E045-F5-G000 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031809090 |
|
Dimension |
1.5m |
|
Packing Dimension |
30×20×10cm |
|
Weight |
0.48 kg |
Core parameters and features advantages

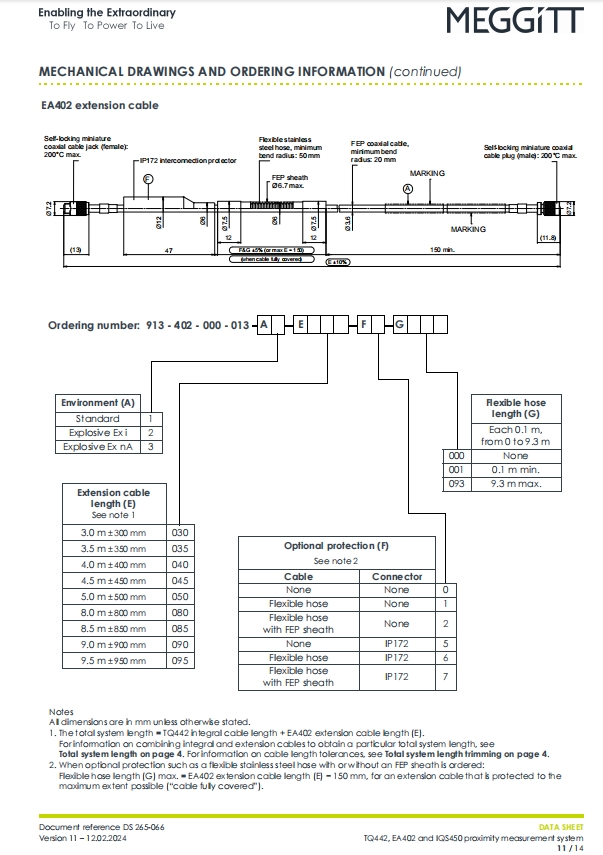

The core parameters of the EA402 913-402-000-013-A2-E045-F5-G000 include: 4.5 meters standard length (tolerance ±450mm), European ATEX (LCIE 11 ATEX 3091X) and international IECEx certification, and support for extreme temperature environments from -40℃ to +200℃.

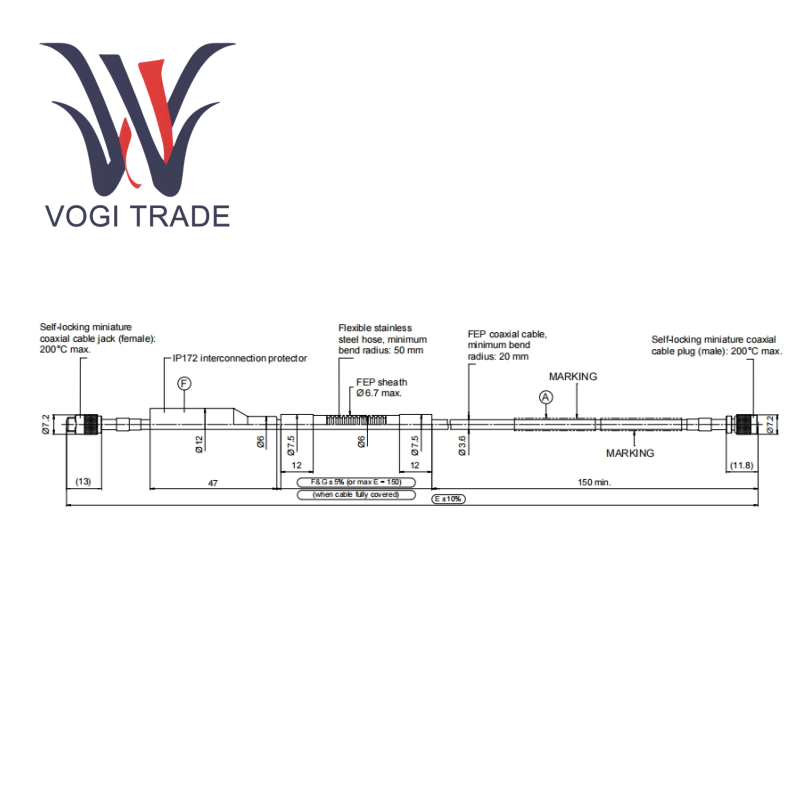

Its stainless steel hose provides IP68 protection (probe end) and mechanical shock resistance (15g peak acceleration), while the IP172 connector is self-locking and anti-loosening to ensure zero signal interruption.
The advantage of the Vibro-Meter 913-402-000-013-A2-E045-F5-G000 is its plug-and-play system compatibility - it can be interchanged with the TQ4xx probe at will without recalibration; at the same time, the FEP sheath design resists chemical corrosion and moisture, significantly reducing the maintenance cost of industrial scenarios.
Application Value
Meggitt Vibro-Meter EA402 913-402-000-013-A2-E045-F5-G000 provides high-precision signal extension for shaft vibration/displacement monitoring of rotating equipment such as turbines and compressors. It is especially suitable for energy and petrochemical fields with strict explosion-proof requirements, ensuring the continuous and safe operation of key equipment with reliability and environmental adaptability.
