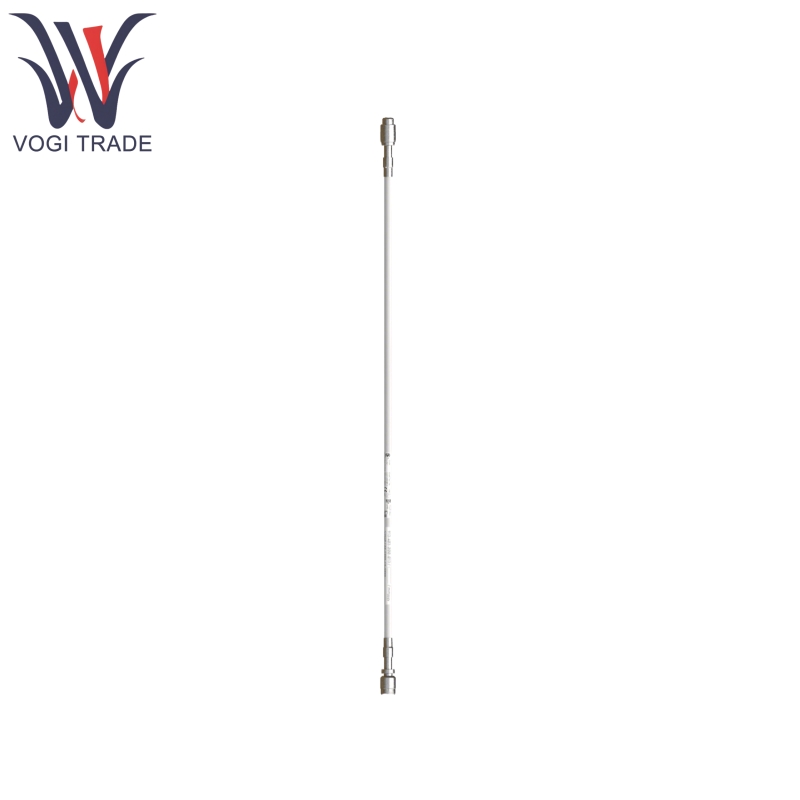

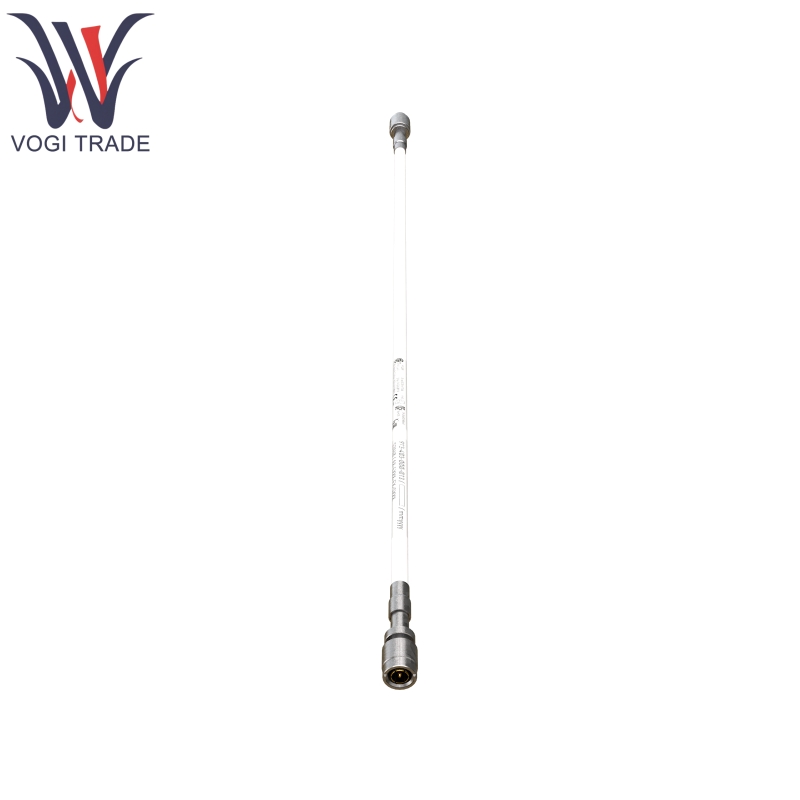

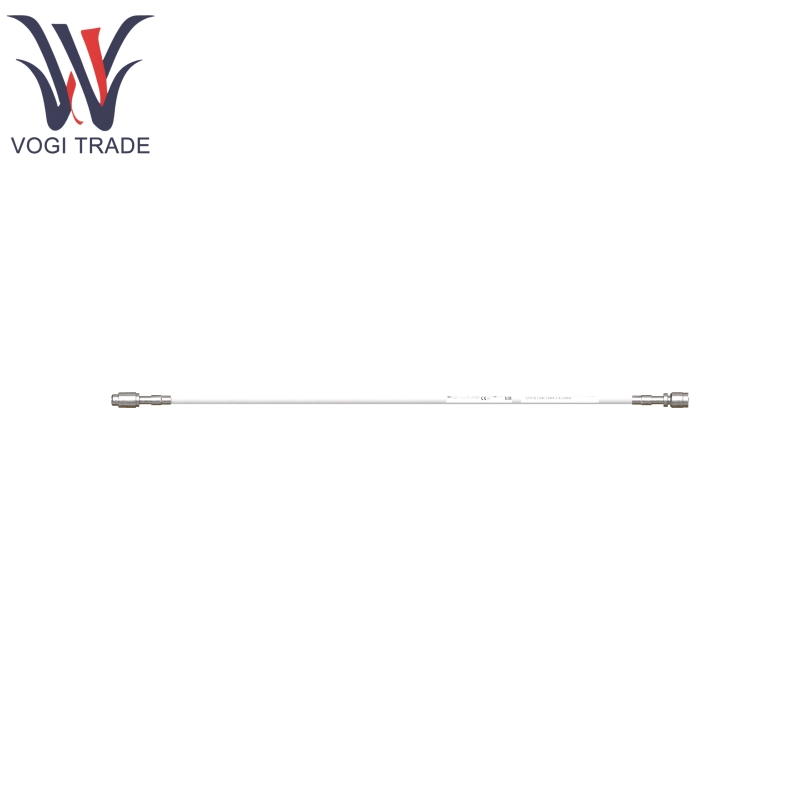

Brand: Vibro-Meter Description: Extension Cable Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen EA403 913-403-000-013 is an extension cable, alongside the TQ403 non-contact sensor and IQS450 signal conditioner. This system operates on the eddy-current principle for non-contact displacement measurement of moving machine components for industrial machinery protection and condition monitoring.
|
Manufacture |
Vibro-Meter |
|
Model Number |
EA403 |
|
Ordering Number |
913-403-000-013 |
|
Catalog |
Vibration Monitoring |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8544421100 |
|
Dimension |
16*16*12cm |
|
Weight |
0.6kg |
Product Feature
EA403 913-403-000-013 has system calibration as below
Calibration temperature: +23℃±5℃
Target material: VCL 140 steel (1.7225)
Note: If special calibration is required, please define the alloy precisely or supply a sample of alloy (minimum: Ø60 mm / 1 cm thick)
EA403 913-403-000-013 has different system lengths
The total system length (TSL) is the sum of the length of the TQ4xx transducer’s integral cable and the length of the EA40x extension cable. The supported TSLs can be obtained from different combinations of cables.
5 m:
1.0 m integral cable + 4.0 m extension cable.
5.0 m integral cable with no extension cable.
10 m:
1.0 m integral cable + 9.0 m extension cable.
5.0 m integral cable + 5.0 m extension cable.
10.0 m integral cable with no extension cable.
Note: The combination of cables selected for a particular total system length depends on the application. For example, to obtain the optimum location for the separation between the integral and extension cables or to eliminate the requirement for an extension cable.
EA403 913-403-000-013 has length trimming
Due to the characteristics of the coaxial cable, an "electrical trimming" of the nominal length of extension cables is necessary to optimize the system performance and the transducer interchangeability.
TSL for a 5 m measurement chain: 4.4 m minimum
TSL for a 10 m measurement chain: 8.8 m minimum
Product Application
Shaft Vibration and Position Measurement for Rotating Machinery:
EA403 913-403-000-013 Extension Cable is suitable for steam, gas and hydraulic turbines, as well as rotating machinery such as alternators, turbo-compressors and pumps. In these machines, the relative vibration and axial position of shafts can be measured, providing data to support machinery protection and condition monitoring, detecting potential problems in time and ensuring stable operation.
Complementary use of machinery monitoring system:
EA403 913-403-000-013 Extension Cable can be used in conjunction with VM600Mk2/VM600 and Vibro Smart machinery monitoring system to form a complete machinery monitoring system, realizing more comprehensive and accurate monitoring and management of machinery and equipment.

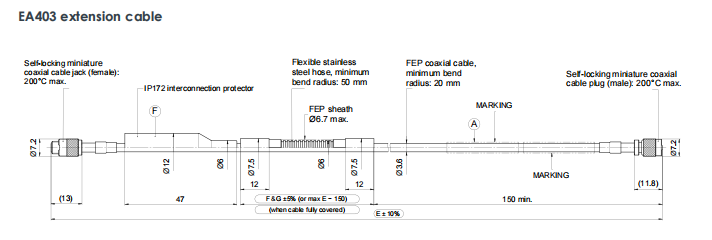

Mechanical Drawings
EA403 913-403-000-013 Extension Cable

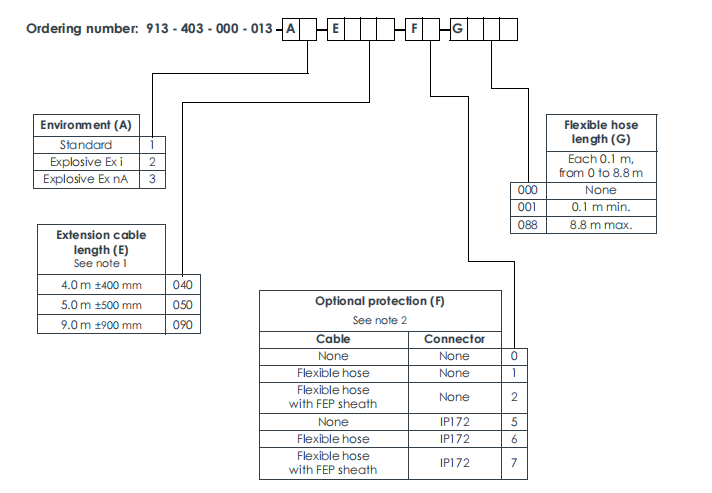

Ordering Information
