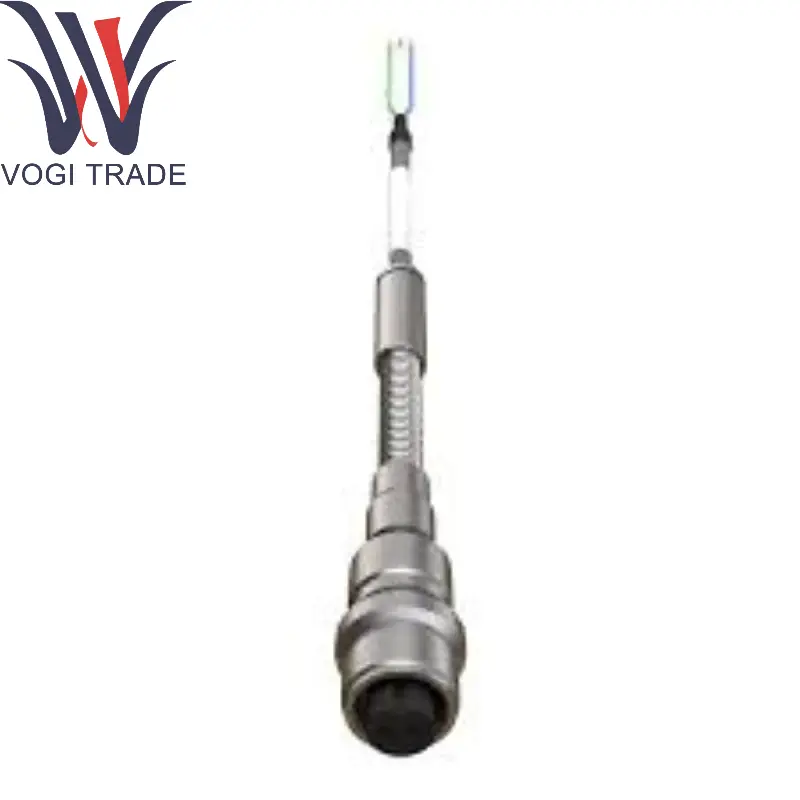

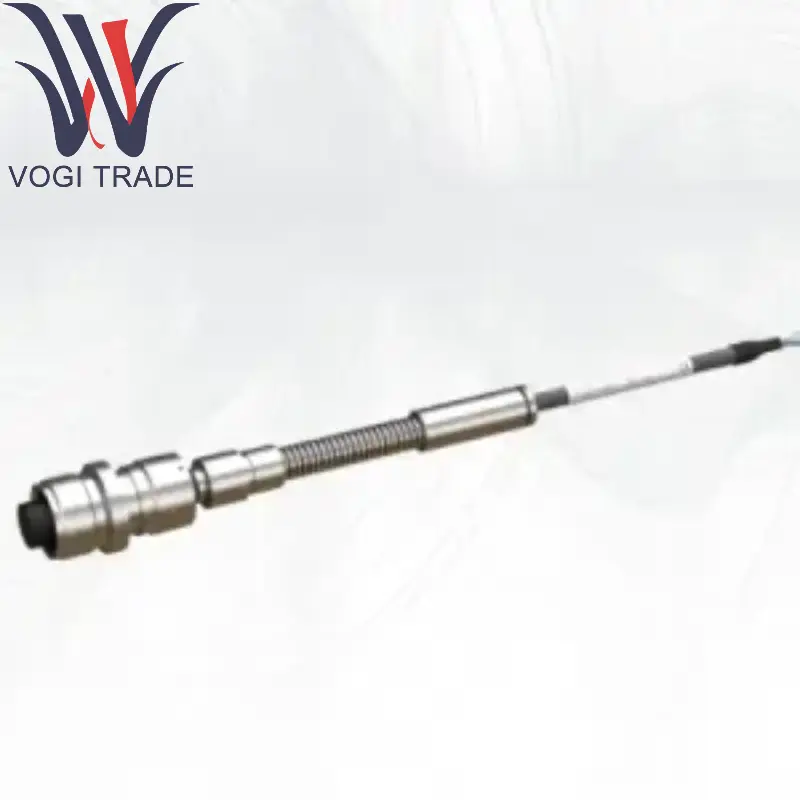

Brand: Vibro-Meter Description: Cable assemblies Condition: New Warranty: 1 year Inventory Qty: 1 Payment term: T/T Shipping Port: ShenZhen Vibro-Meter EC318 922-318-000-002 is an all-purpose vibration sensor designed for use in harsh industrial machinery environments.
|
Manufacture |
Vibro-Meter |
|
Model Number |
EC318 |
|
Ordering Number |
922-318-000-002 |
|
Catalog |
NIL |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9014800010 |
|
Dimension |
cm×8cm×3.5cm |
|
Packing Dimension |
7cm×6cm×5.5cm |
|
Weight |
0.1kg |
Key Parameters
Input Signal:
The Vibro-Meter EC318 922-318-000-002 supports ICP® (constant current source) accelerometers or magneto-electric velocity sensors.
Input Range: ±5V or 4–20mA.
Measurement Range:
Vibration Displacement: 0–1000 μm pk-pk.
Vibration Velocity: 0–100 mm/s RMS.
Frequency Response: 5 Hz–10 kHz.
Output Signal:
4–20mA or 0–10V analog output.
Alarm Relay Output (NO/NC) for the Vibro-Meter EC318 922-318-000-002.
Operating Environment:
Temperature: -30°C to +70°C.
Protection Rating: IP20.
Related matching products
Sensors:
Accelerometers: such as Vibro-Meter 200 series or PCB Piezotronics ICP sensors.
Speed sensors: such as Vibro-Meter VS-069.
System integration:
Vibro-Meter EC318 922-318-000-002 is used with VM600 monitoring system or other DCS/PLC control system.
Matching preamplifier: such as DM8 signal conditioner.
Accessories:
Cable: Vibro-Meter EC318 922-318-000-002 shielded twisted pair (such as 923-XXX-XXX series).
Mounting bracket or protective cover.
Application areas
Energy industry: gas turbine, steam turbine, wind turbine vibration monitoring.
Oil and gas: compressor, pump set, pipeline vibration protection.
Industrial manufacturing: motors, gearboxes, rolling mills and other rotating machinery.
Aerospace: Assists in test bench monitoring.
For more Vibro-Meter EC318 922-318-000-002 information, please click on the product datasheet below.
