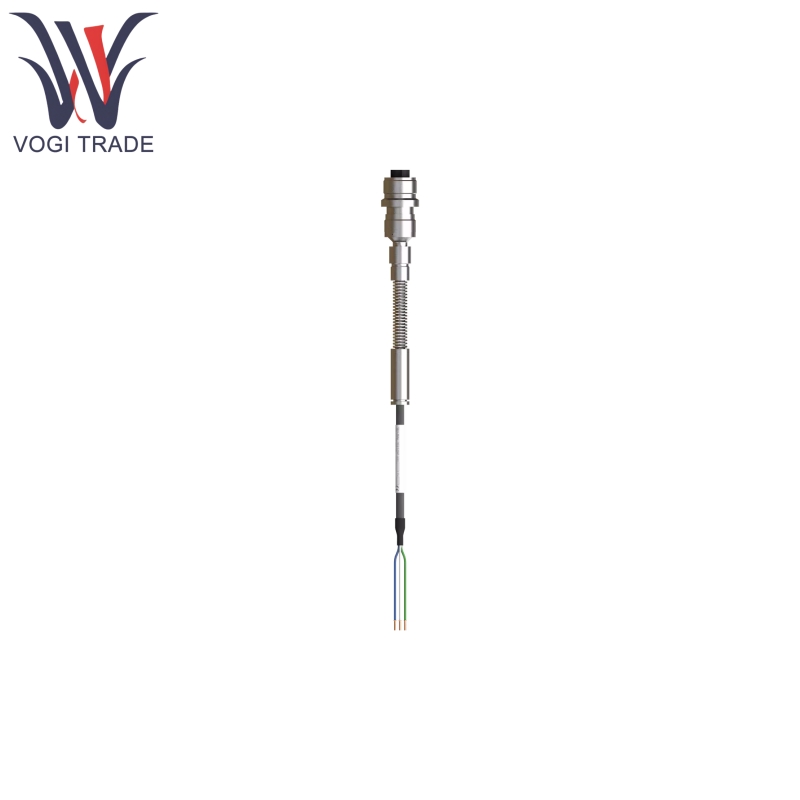

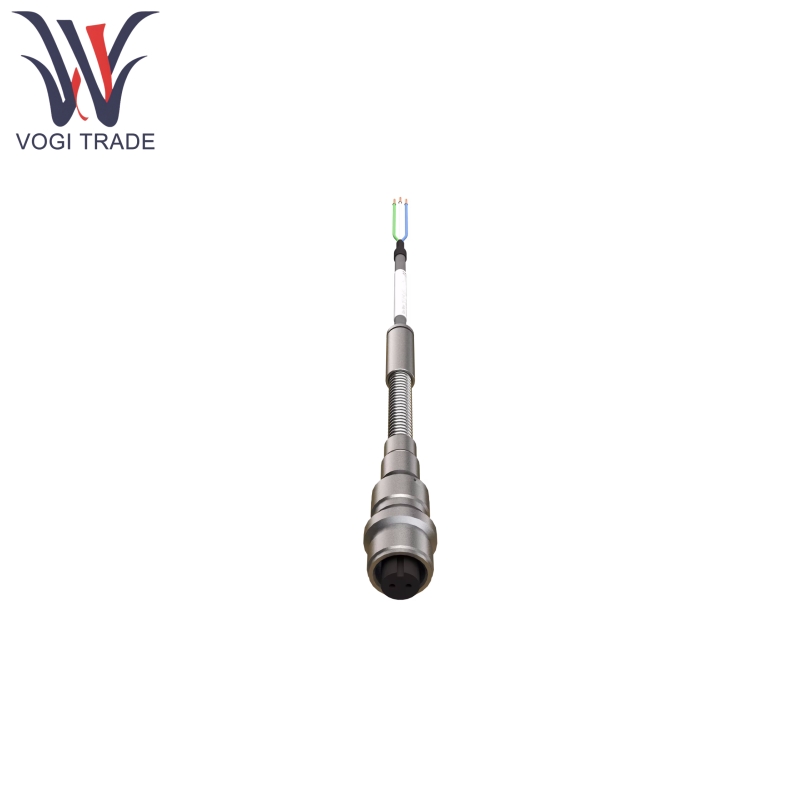

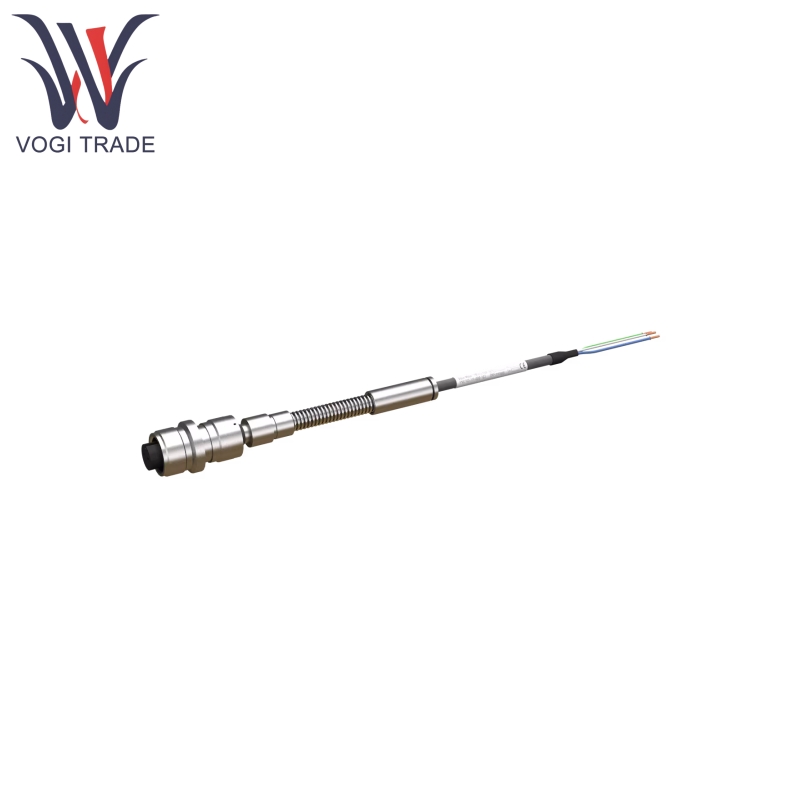

Brand: Vibro-Meter Description: Cable Assembly Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen EC319 922-319-000-002 is a splash-proof cable assembly using a 2-core Radox® insulated cable with a diameter of 4.8 mm and equipped with MS 3456L threaded connectors at both ends, suitable for harsh industrial environments. It is designed for CE series piezoelectric accelerometers to provide a reliable signal transmission link and support stable data transmission over long distances (up to 1000 meters).
|
Manufacture |
Vibro-Meter |
|
Model Number |
EC319 |
|
Ordering Number |
922-319-000-002 |
|
Catalog |
Vibration Monitoring |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8544421100 |
|
Dimension |
12*12*4cm |
|
Weight |
0.6kg |
Product Features
EC319 922-319-000-002 internal shielding layer effectively suppresses electromagnetic interference, ensuring signal integrity.
EC319 922-319-000-002 can accept 4-20mA current signal or voltage signal distal transmission, the maximum distance 1000 m, can be used in the monitoring of large industrial equipment.
EC319 922-319-000-002 operating temperature range is -50°C to +120°C, with an IP65 protection rating (splash-proof), making it suitable for humid and dusty environments.
EC319 922-319-000-002 is compatible with CE series piezoelectric accelerometers (like CE680 M511, CE110I) and PV series velocity sensors (like PV102), and is a perfect fit with Vibro-Meter signal conditioners (such as IPC704).
Product Using Principle
EC319 922-319-000-002 transforms the piezoelectric charge signals collected by the sensor (such as the 100 mV/g sensitivity signal of the CE680 M511) into voltage or current signals, which are transmitted via shielded cables to the signal conditioner. The signal conditioner then amplifies, filters, and performs analog-to-digital conversion on the signals, ultimately outputting them to the VM600 monitoring system.
Its shielding layer and insulating material reduce electromagnetic interference and ground loop effects, ensuring a signal-to-noise ratio better than 60dB.
Product Application
EC319 922-319-000-002 can be used to bearing vibration and shaft displacement monitoring in equipment such as gas turbines, compressors, pumps, and fans, and supports predictive maintenance (such as early warning of imbalance and misalignment faults).
EC319 922-319-000-002 can be used in high humidity ( >95% RH), high temperature ( >+120°C), and potentially explosive environments which requires Ex-certified sensors in industries such as petrochemicals, power, and metallurgy.
EC319 922-319-000-002 s designed to work with VM600 mechanical protection system to enable functions such as vibration limit alarms and shutdown interlocks, in compliance with API 670 standards.
