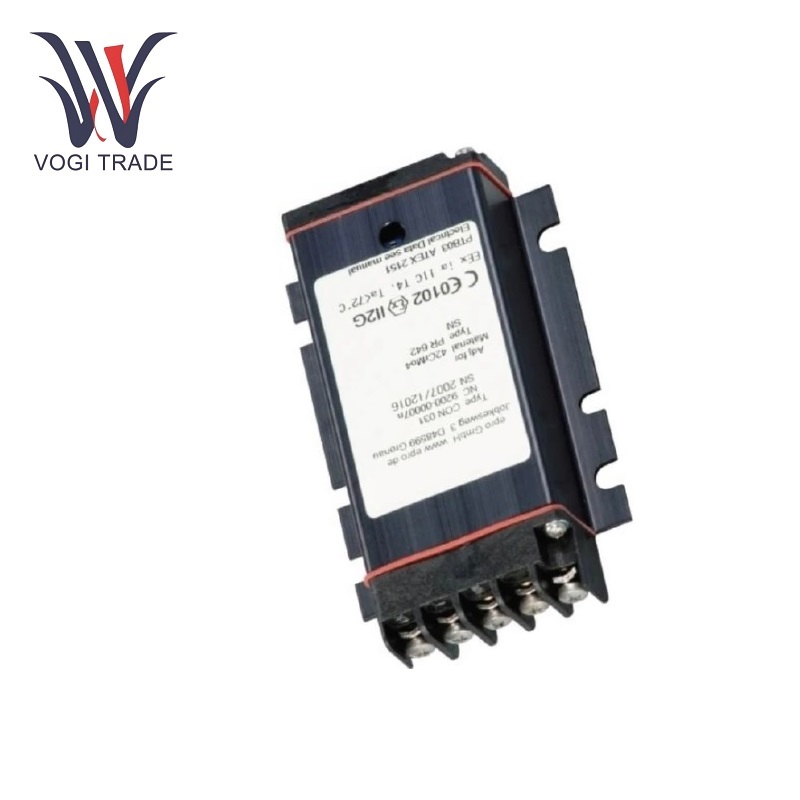

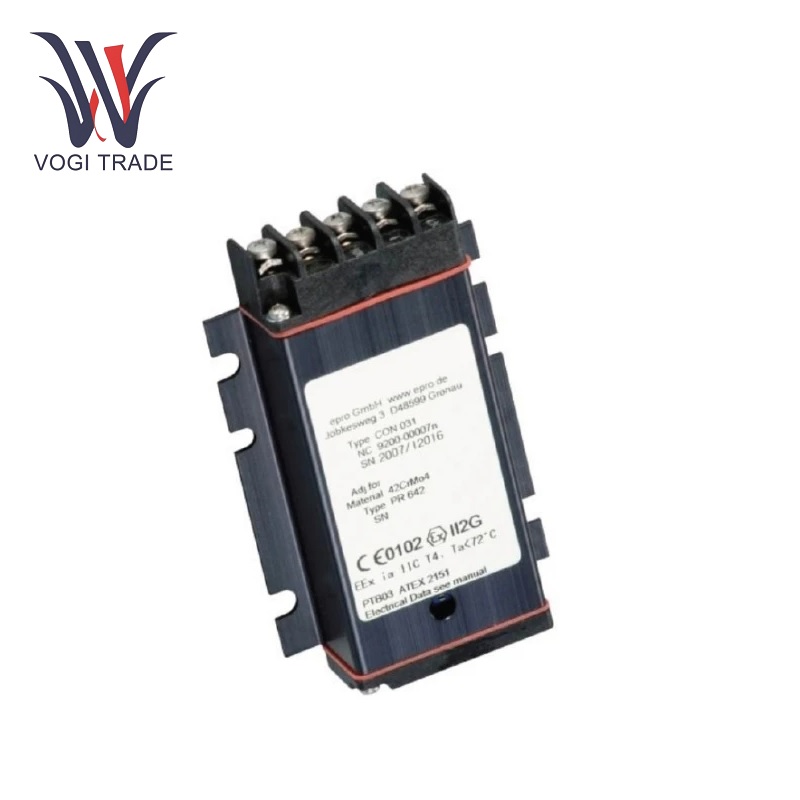

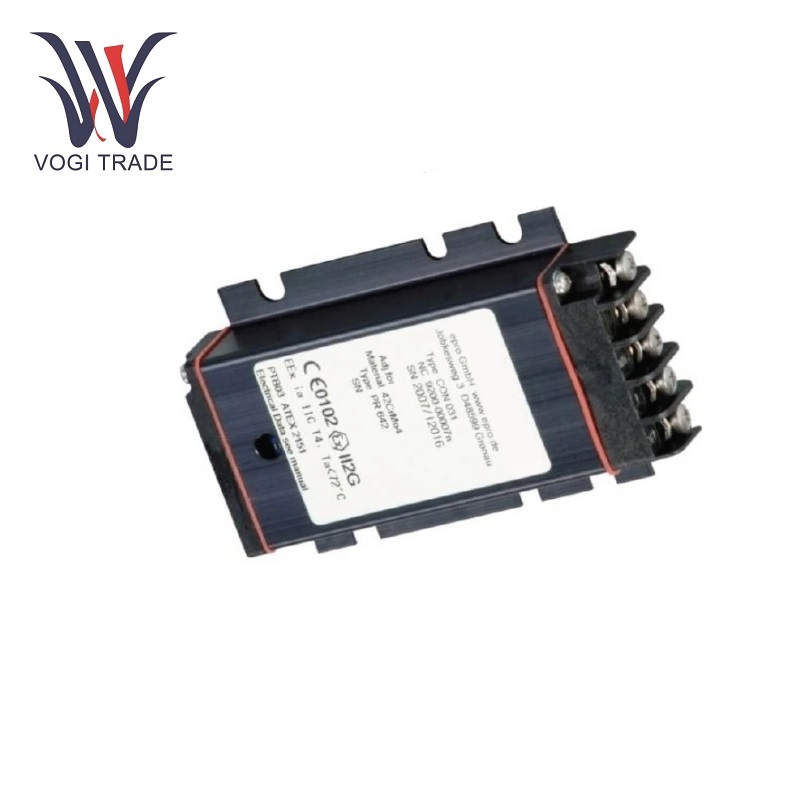

EPRO CON031

Technical Parameter

Signal type: The output DC voltage has an AC voltage superimposed that is proportional to shaft vibration, including built-in short-circuit and reverse-polarity protections.

Linear output voltage: -4V to -20V.

Output voltage maximum range: -1V to -22V.

Nominal output voltage: -12V measurement is symmetrical at both ends.

Internal resistance: 100kΩ.

Frequency range (-3dB): 0 to 20,000 Hz.

Rise time of less than 15 ms.

Temperature instability: Z point 200 mV/100 K, sensitivity values 2%/100 K.

Stability in drift max: 0.3%.

Supply voltage error: <0.2%/V.

Working temperature: -30°~100°C.

Protection level: IP20.

Features

Signal Adaptability: EPRO CON031 is capable of intuitively identifying and processing input signals of different types such as voltage, current conduction, and resistive signals, providing immense flexibility for the integration of various sensors.

Calibration Functionality: The built-in capacity to calibrate enables simple and periodic calibration of the device to guarantee long-term measurement accuracy.

Programmable Alarms: Alarms can be programmed by the user for specific thresholds of various parameters. When any of the monitored values pass these programmed limits, the system generates timely alarms for carrythrough maintenance or control of the process.

Communication Interface: EPRO CON031 works with many industrial communication protocols that include Profibus, Modbus, and Ethernet/IP and can be joined easily into a complex system for control and monitoring, ensuring good pass data and accessibility for remote access.

High Reliability: it has several redundant components and fault-tolerant circuitry to minimize the chances of failure of the system or an interruption of operation.

Wide working conditions: EPRO CON031 can successfully function across the temperature range of -30° to 100°, which making it the right fit for set-up in the varied working conditions of any factory or industry, whether indoors or out. Compact and Modular Design: Its diminutive size saves installation area, and the modular structure allows it to speed up installations and replacements while allowing ease of expansion or modification. New modules may be added or existing units changed to fulfil a shift in application needs.

Excellent EMC: EPRO CON031 shows withstanding the potential for interference of EMI from neighboring appliances, thus allowing unfaltering functioning in exposing electrically noisy surroundings.

Applications

Power Generation: EPRO CON031 is used for monitoring critical parameters of the generators and turbines such as vibration, temperature, or electrical signals. It thus helps detect faults early and perform predictive maintenance to truly enhance the overall reliability and efficiency of power plants.

Petrochemical Industry: Investigation into various processes run in refineries and chemical plants can put it to use. EPRO CON031 can handle pressures, flow rates, and temperatures of all types of fluids and gases assuring safe and optimal operation of pipelines, reactors, and other equipment.

Construction: The quality of production is monitored in the lines using this system. EPRO CON031 measures machine performance, detects any deviation from production parameters, and makes it possible for adjustments to be made in time to prevent any possible deviations that would affect product quality or production efficiency.

HVAC systems: Users can control humidity, temperature, and pressure through EPRO CON031. This allows precise control of the indoor environment while optimizing energy consumption and achieving occupant comfort.
