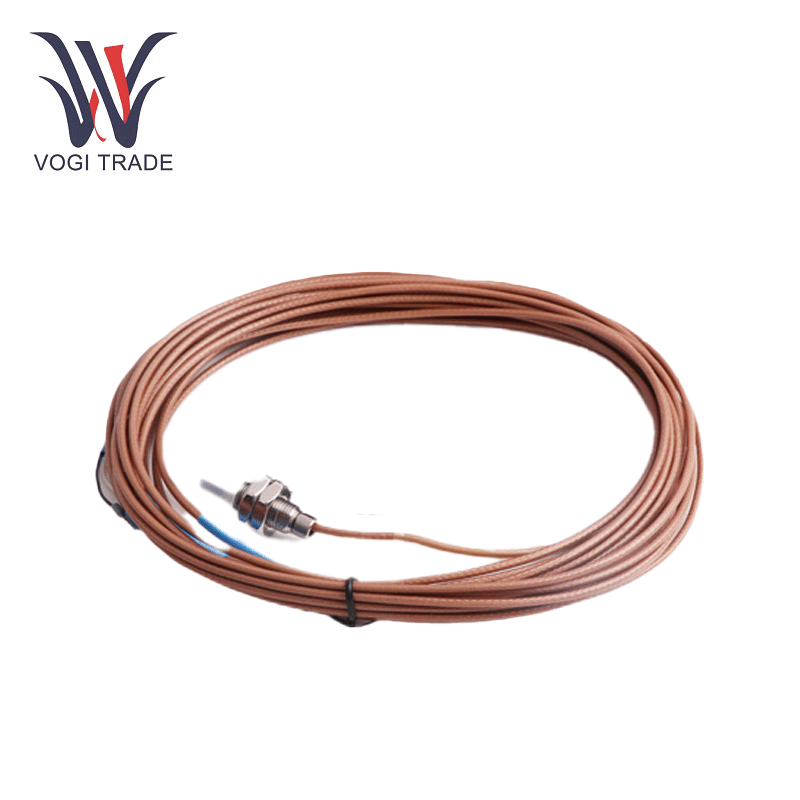

EPRO PR6423/001-010

Brand: EPRO
Description: 8mm Eddy Current Sensor
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 1
Payment Term: T/T
Shipping Port: Shenzhen
The EPRO PR6423/001-010 is a non-contact eddy current sensor designed for precise axial/radial displacement and vibration measurements in turbines, compliant with API 670 and Eex ib IIC T6/T4 standards.

Send Inquiry

Product Description

Manufacture	EPRO
Model Number	PR6423/001-010
Country Of Origin	Germany
HS CODE	9031809090
Dimension	5M
Packing Dimension	272710CM
Weight	0.15kg

Technical Parameters

Thread length: 35mm

Linear Measurement Range: 2 mm (80 mils)

Initial Air Gap: 0.5 mm (20 mils)

Minimum Shaft Diameter: 25 mm (0.79”)

Target Material (Ferromagnetic Steel) :42CrMo4 (AISI/SAE 4140) Standard Other (On Request)

Protection Class: IP66, IEC 60529

Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)

Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)

Compatible Equipment

The EPRO PR6423/001-010 integrates seamlessly with industrial monitoring systems:

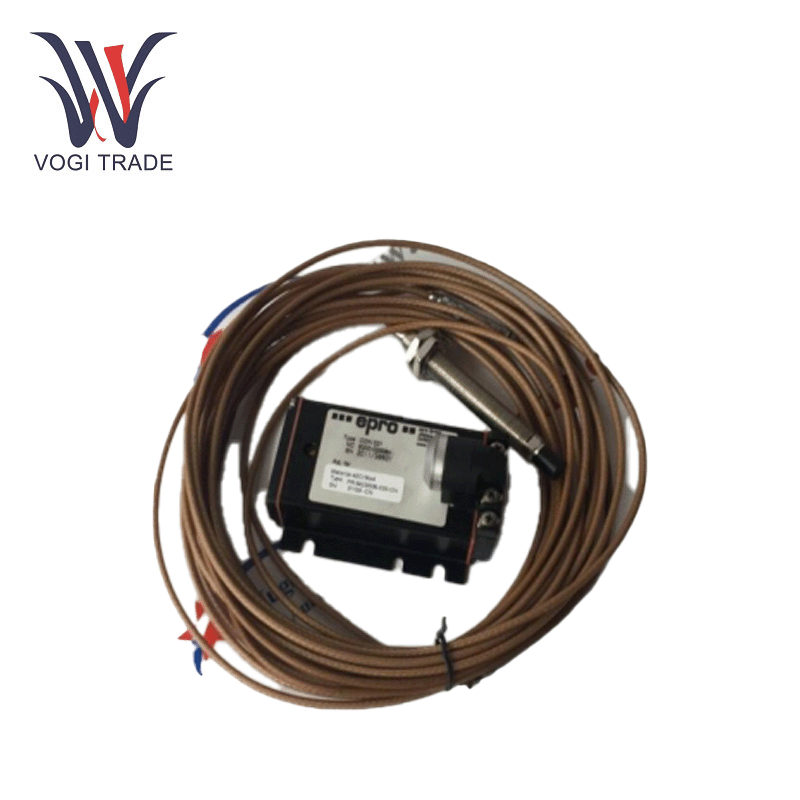

Signal Converters: Requires pairing with CON 021 converters to transform raw sensor signals into standardized outputs (e.g., 4–20 mA or 0–10 V) for integration with control systems.This ensures ISO-compliant measurement accuracy (±0.025 mm).

Monitoring Platforms: Compatible with MMS 6000/3000 machinery protection systems, enabling real-time tracking of vibration, shaft displacement, and eccentricity in turbines and compressors.

Installation Accessories: Use with MPT 064 metal protection tubes or EZ 1600 probe holders to enhance stability in high-vibration settings

Installation & Maintenance

Installation Best Practices:

Mounting: The EPRO PR6423/001-010 features an M10x1 or 3/8"-24UNF thread for flexible positioning. Ensure a minimum shaft diameter of 25 mm and an initial air gap of 0.5 mm (±0.1 mm) for optimal signal accuracy.

Cabling: Use armored cables (6 mm diameter) with a minimum bending radius of 35 mm to prevent damage in high-stress routing.

Maintenance Guidelines:

Routine Inspections: Check the sensor tip for debris buildup or corrosion quarterly. Verify cable integrity, especially near connectors, to maintain IP66 protection.

Recalibration: Perform biennial calibration using CON series converters to ensure long-term accuracy (±0.01 mm repeatability) and minimize drift.

We also supply other models of this products: PR6423/00R-010, PR6423/ 009-030, PR6423/007-010. They are the same in specifications, features and application range. The difference is the length of the thread and cable length, refer to the table for details.
