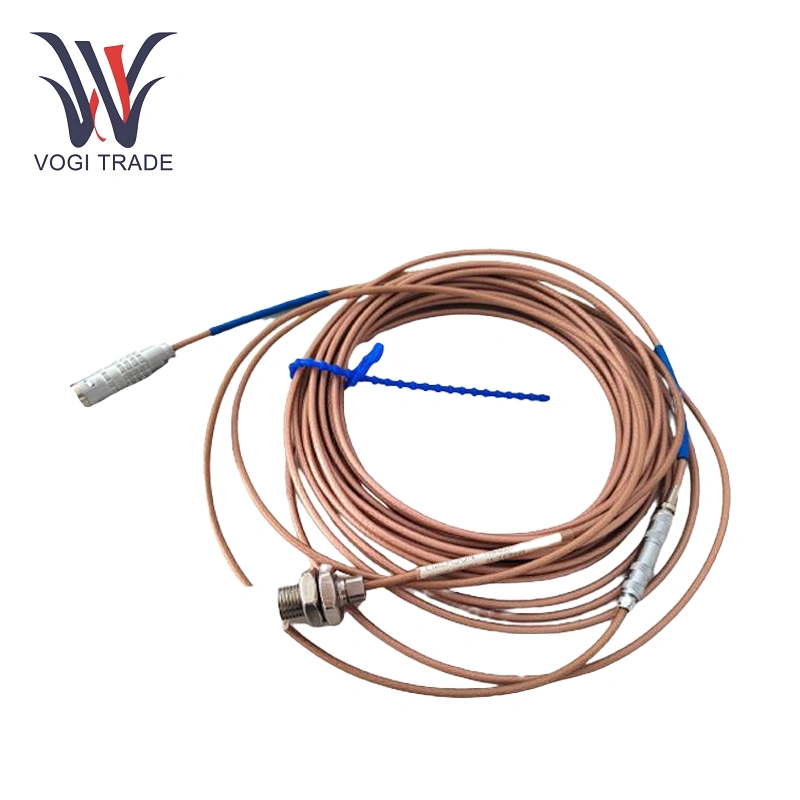

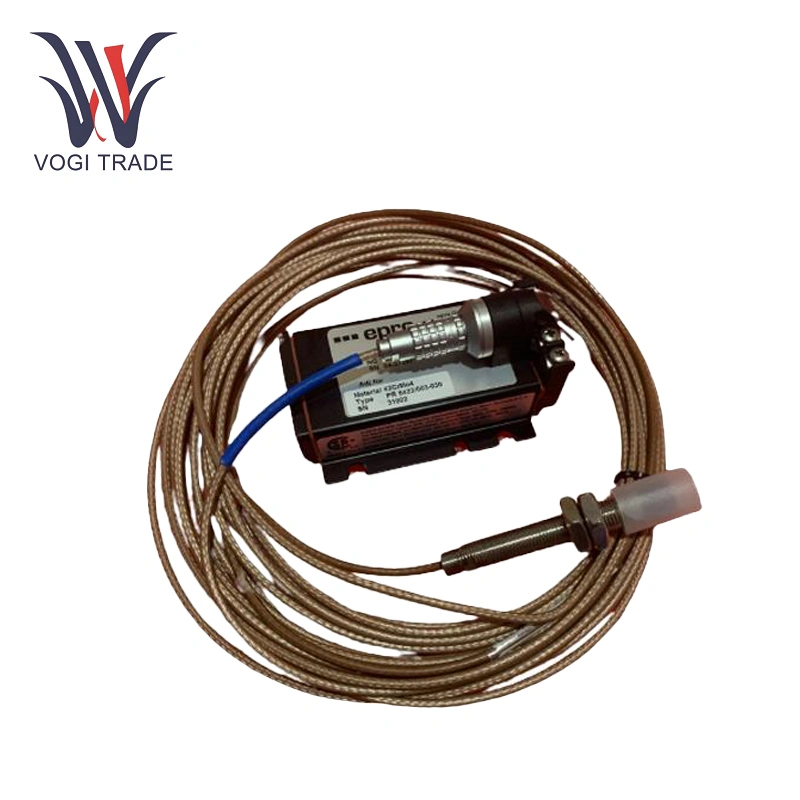

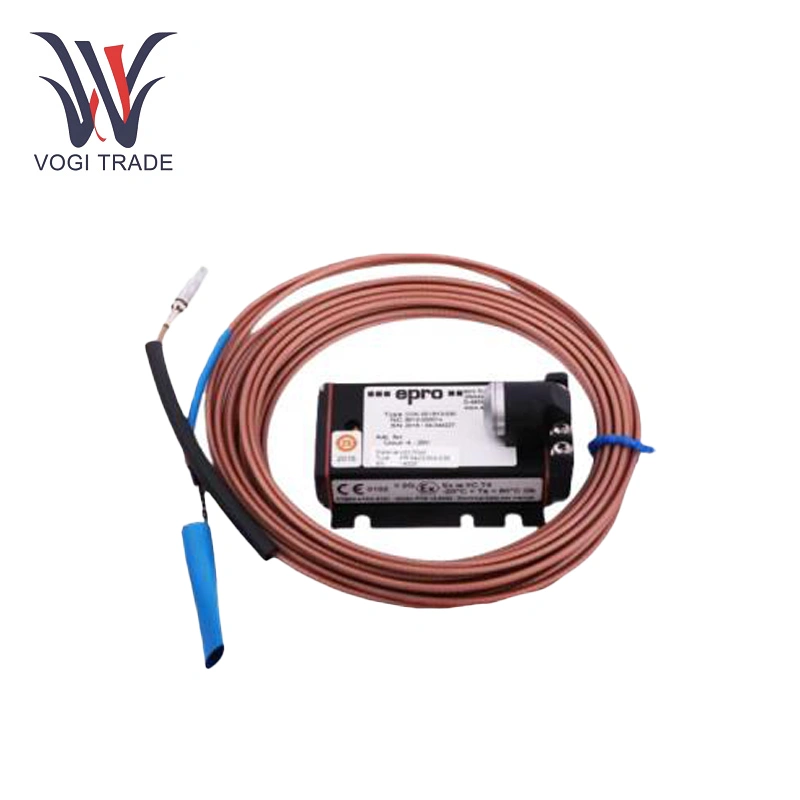

Brand: EPRO Description: 8mm Eddy Current Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen The EPRO PR6423/00B-030 is a rugged, high-sensitivity eddy current sensor designed for non-contact displacement and vibration measurement in critical industrial applications. Built to withstand extreme conditions, this sensor enhances predictive maintenance strategies while ensuring operational safety. Below is a detailed breakdown of its capabilities and use cases.
|
Manufacture |
EPRO |
|
Model Number |
PR6423/00B-030 |
|
Catalog |
/ |
|
Country Of Origin |
Germany |
|
HS CODE |
9031809090 |
|
Dimension |
8M |
|
Packing Dimension |
27*27*10CM |
|
Weight |
0.15kg |
Technical Parameters
Thread length: 25 mm
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) :42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Operating Environments
The EPRO PR6423/00B-030 performs reliably in diverse industrial settings:
Ultra-Low Temperature Resilience: Operates flawlessly in environments as cold as -50°C, making it ideal for cryogenic facilities, LNG plants, and Arctic offshore drilling rigs .
Explosive Atmospheres: Certified for ATEX Zone 1 and IECEx, the EPRO PR6423/00B-030 safely monitors gas turbines or compressors in oil refineries and chemical plants .
High-Humidity Zones: With IP66 protection and hermetically sealed housing, it resists moisture ingress in pulp and paper mills or coastal hydropower installations .
Application Scenarios
The EPRO PR6423/00B-030 addresses unique industrial challenges:
Aerospace Testing: Measures turbine blade vibrations in jet engine test benches, ensuring compliance with ISO 1940 balance standards .
Water Treatment Plants: Safeguards high-speed pumps against cavitation damage in desalination units, even in saltwater-saturated environments .
Automotive Manufacturing: Monitors robotic assembly line vibrations to prevent precision errors in EV battery production, maintaining ISO/TS 16949 quality standards .
We also supply other models of this products: PR6423/00C-030,PR6423/002-030. They are the same in specifications, features and application range. The difference is the length of the thread, refer to the table for details.
|
Module Number |
Thread Length |
|
PR6423/00B-030 |
125mm |
|
PR6423/00C-030 |
160mm |
|
PR6423/002-030 |
45mm |
