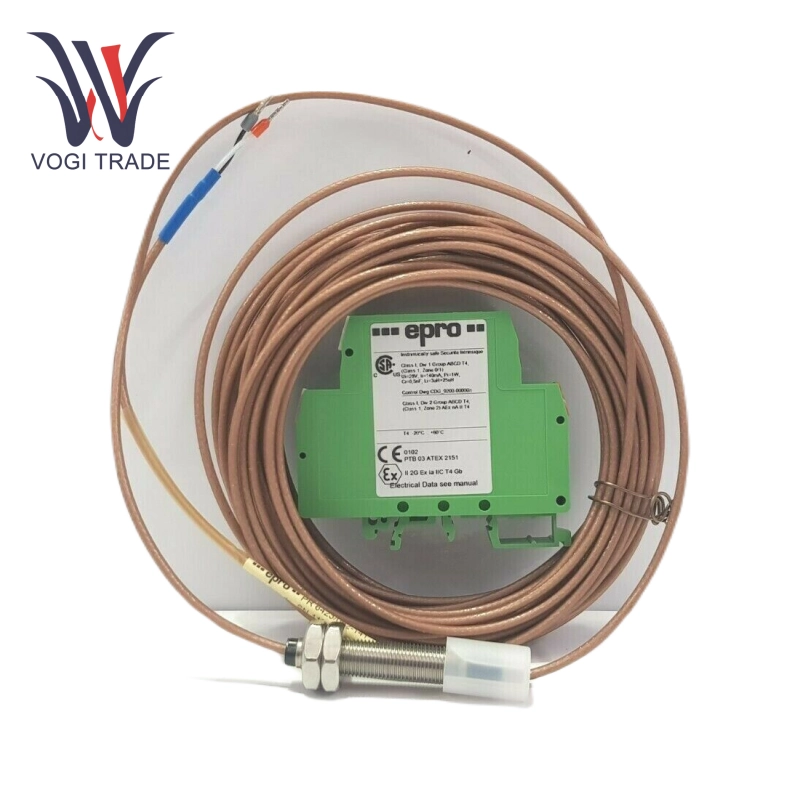

EPRO PR6423/10R-030

Technical Parameters

Radial displacement: ±10 mm

Axial displacement: ±5 mm

Linear measurement range: 2 mm (80 mils)

Initial air gap: 0.5 mm (20 mils)

Position measurement accuracy: ±0.05 mm

Eccentricity measurement accuracy: ±0.025 mm

Velocity measurement accuracy: ±1% full scale

Sensitivity: 8 V/mm (203.2 mV/mil), in accordance with ISO standards

Operating temperature: -40°C to +85°C

Humidity range: 0-100%

Vibration resistance: 20 g (peak, 10-2000 Hz)

Shock resistance: 50 g (peak, 11 ms duration)

Thread specification: M10×1.55 mm (standard) or reverse mount option (3/8”–24–UNF–2A)

Cable configuration: 8.0 m armored cable (optional adapter plug), or 0.3 m Cable (M12×1-5 interface)

Principle of Use

PR6423/10R-030 realizes non-contact measurement based on eddy current effect.

Working mechanism: EPRO PR6423/10R-030 has a built-in high-frequency coil (1-2 MHz), which generates an alternating magnetic field on the surface of the metal shaft and forms a closed eddy current.

Shaft vibration or displacement causes eddy current changes, causing coil impedance changes. The preamplifier converts the impedance signal into a voltage/current signal, which corresponds to the gap change linearly

Signal processing: The preamplifier demodulates, amplifies and linearizes the original signal, outputs a standardized signal (such as 4-20 mA or 0-10 V), and integrates a temperature compensation module to eliminate the influence of ambient temperature on accuracy (error <±1% FS).

Note: EPRO PR6423/10R-030 is often used in conjunction with CON021 signal converter to enhance signal processing capabilities.

EPRO PR6423 provides different cable lengths (0.3 m to 10 m), interface types (Lemo or M12) and installation method (standard/reverse).
