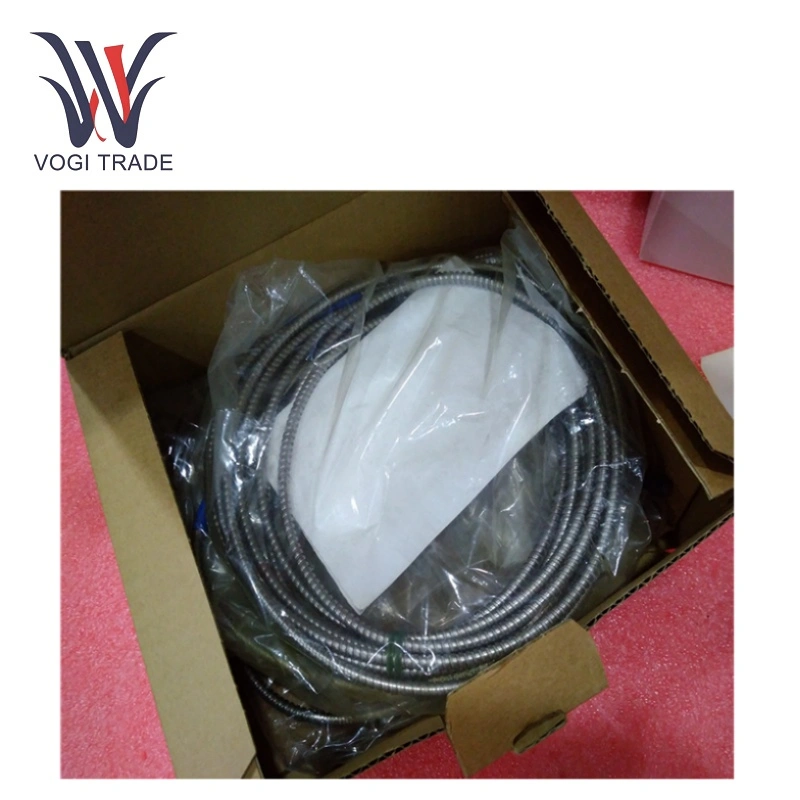

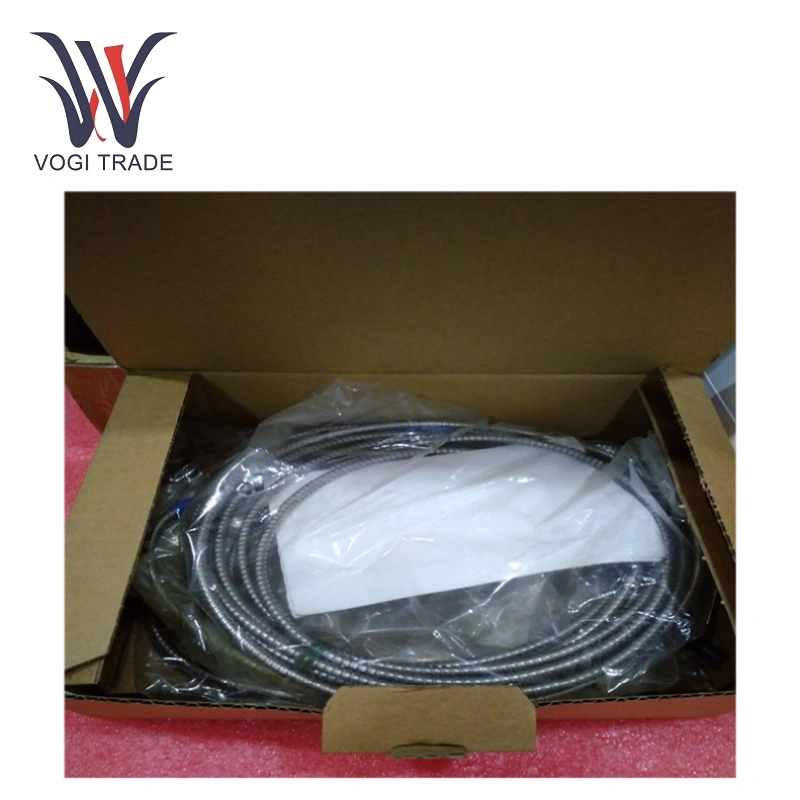

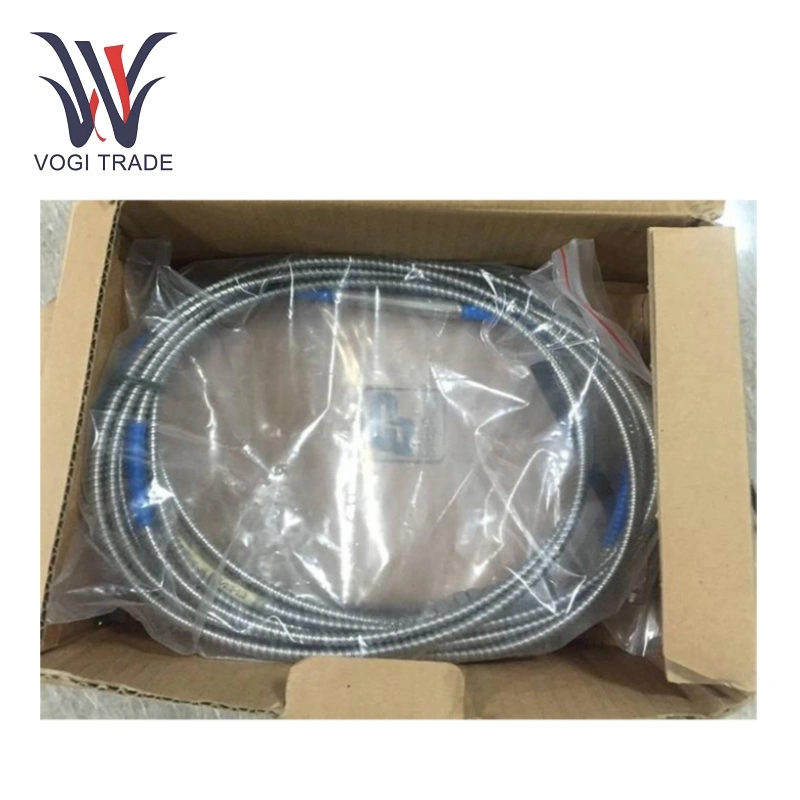

EPRO PR6423/110-100

Technical Parameters

Thread length:25mm

Linear Measurement Range: 2 mm (80 mils)

Initial Air Gap: 0.5 mm (20 mils)

Minimum Shaft Diameter: 25 mm (0.79”)

Target Material (Ferromagnetic Steel) :42CrMo4 (AISI/SAE 4140) Standard Other (On Request)

Protection Class: IP66, IEC 60529

Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)

Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)

Application Environment

The EPRO PR6423/110-100 is specifically designed for precise measurement in hostile industrial environments with non-contact measurement and high reliability.

Turbomachinery & Heavy Industry: The EPRO PR6423/110-100 is the optimum answer for critical applications in steam turbines, gas turbines and centrifugal compressors where the shaft displacement, vibration and eccentricity is measured 24/7 and is subject to mechanical continuous stress.

Brave the Elements: IP66 protection grade, anti-high humidity, anti-oil, anti-electromagnetic interference, -35 to +180°C (sensor body) operating temp, used in power plants, oil refineries, heavy manufacturing facilities.

Key Features

The EPRO PR6423/110-100 offers unprecedented performance through a combination of advanced technology and rugged data acquisition:

Very high precision measurement: Eddy current technology with accuracy of ±0.025 mm over 2 mm linear range & 0.5 mm standard initial air gap aids the measurement of minimal shaft misalignment or wear.

Rugged Design: SS casing and armored cable (optional) resist mechanical abrasion and chemical corrosion in an abrasive environment. 3/8-24UNF threads enable secure mounting in confined areas.

Versatile Integration: Encompasses 4–20 mA analog signal and RS485 digital communication spectrum, ensuring compatibility with PLC/DCS systems for real-time data analysis and predictive maintenance.

We also supply other models of this products: PR6423/100-100, PR6423/110-000, PR6423/100-001.They are the same in specifications, features and application range. The difference is Armor, whether the cable ends with a plug and whether there is a connector at 1 meter , refer to the table for details.
