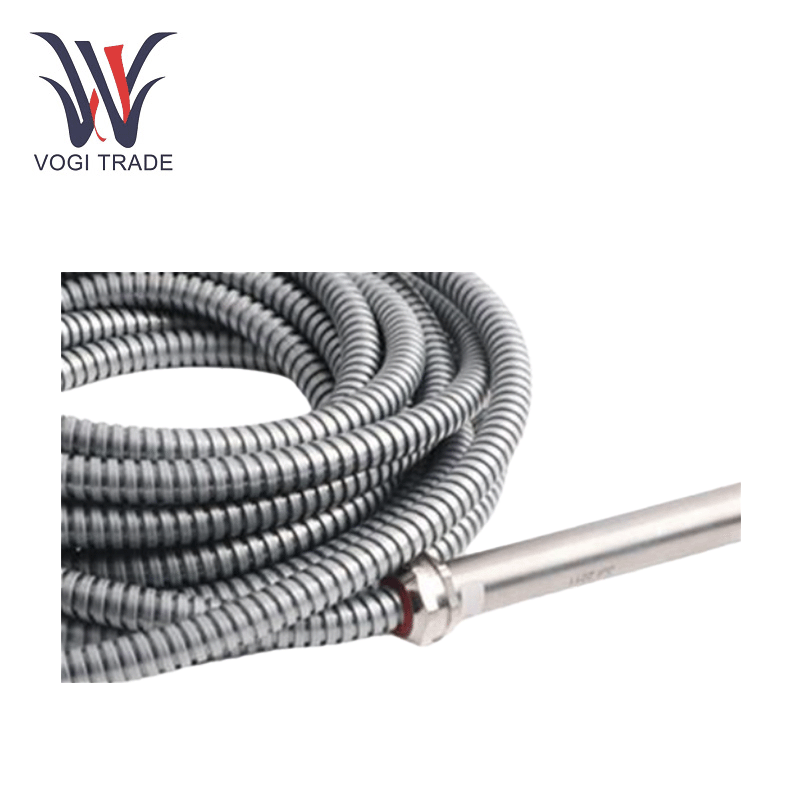

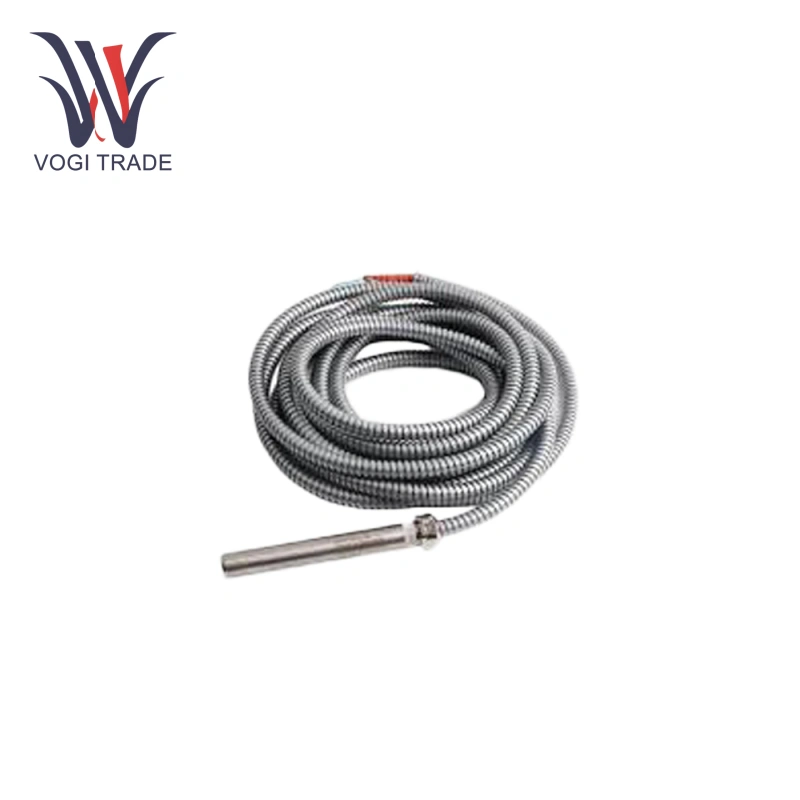

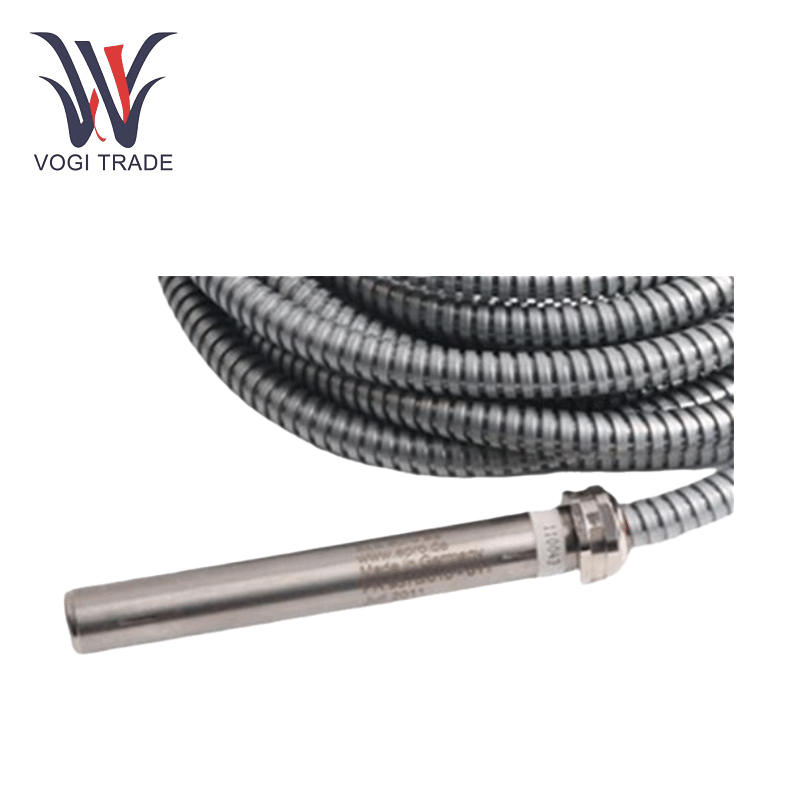

EPRO PR9376/010-011

Technical Parameters

Output: 1 AC cycle per revolution/gear tooth

Rise/Fall Time: 1 µs

Output Voltage (12 VDC at 100 Kload): High >10 V / Low

Air Gap: 1 mm (Module 1); 1.5 mm (Module ≥2)

Maximum Operating Frequency: 12 kHz (720,000 cpm)

Trigger Mark Limited to: Spur Wheel, Involute Gearing Module 1; Material ST37

Target/Surface Material: Magnetic soft iron or steel (non stainless steel)

Reference Temperature: 25°C (77°F)

Operating Temperature Range: -25 to 100°C (-13 to 212°F)

Storage Temperature: -40 to 100°C (-40 to 212°F)

Sealing Rating: IP67

Power Supply: 10 to 30 VDC @ max. 25mA

Resistance: Max. 400 Ohms

Material: Sensor – Stainless steel; Cable – PTFE

Key Features

High Accuracy: EPRO PR9376/010-011 has high accuracy with the ability to determine speeds as high as 20 kHz with a ±0.5mm resolution, enabling predictive-maintenance quality data.

Wide Compatibility: Compatibility with analog and digital outputs (e.g., 4–20 mA, pulse signals), suitable for PLCs and control systems such as Emerson MMS 3000/6000.

User Friendly : The compact dimensions (Φ14×155 mm) and M6x1 threaded sleeve make it easy to find a place to install even when the space is limited.

We also supply other models of this products: PR9376/010-001.They are the same in specifications, features and application range. The difference is the total length of cable ,refer to the table for details.
