Brand: GE Description: 04220FL11232A Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 19 Payment Term: T/T Shipping Port: Shenzhen The GE 04220FL11232A Serves as the primary control processor in GE Speedtronic Mark VIe and VIeS turbine-control systems.
|
Manufacture |
GE |
|
Model Number |
MPU50 |
|
Ordering Number |
04220FL11232A |
|
Catalog |
Mark Vie |
|
Description |

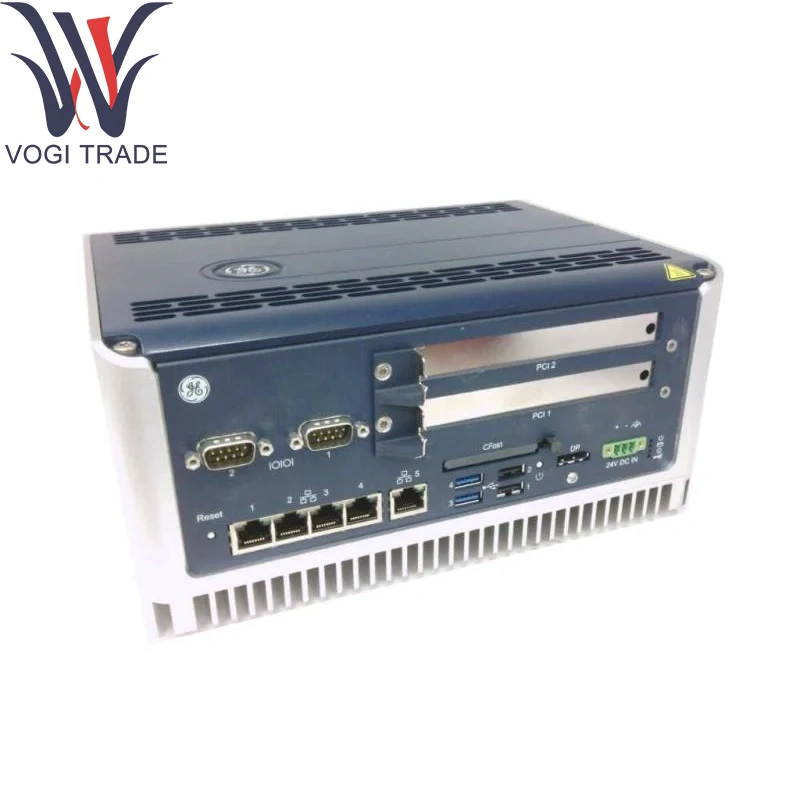

GE 04220FL11232A Controller Module |
|
Country Of Origin |
USA |
|
HS CODE |
7326909000 |
|
Dimension |
233 × 160 × 50 mm |
|
Weight |
0.32 kg |
Technical Parameters
Processor: Dual-core industrial CPU, 1.2 GHz per core
Memory: 1 GB DDR3 RAM; 8 GB eMMC flash for OS and application storage
Operating System: Real-time Linux kernel with GE control-framework layer
I/O & Communications:
2 × 10/100 Mbps IONet Ethernet ports (RJ-45)
1 × 100 Mbps engineering Ethernet port (RJ-45)
1 × RS-232/RS-422 console port (DB-9)
2 × USB 2.0 Type-A for firmware or removable storage
Status Indicators: LEDs for Power, Run, IONet Link/Activity (x2), Fault
Power: 5 V DC via backplane; 600 mA max
Environmental:
Operating Temp: –20 °C to +65 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing
Certifications: CE, UL/cUL, ATEX Zone 2 when installed per enclosure guidelines
Product function
Hosts and runs the core control application for turbine start, load control, speed regulation, and protective trips. GE 04220FL11232A Manages communications with distributed I/O packs over IONet, aggregates diagnostic and sequence-of-events data, and provides an engineering interface for real-time tuning, firmware updates, and system health monitoring.
Core supporting modules
Power/Carrier Board: IS42xPSCAH1B – provides backplane power and IONet connectivity GE 04220FL11232A
I/O Packs: Discrete, analog, relay, and safety I/O modules (e.g., IS200TICIH2A, IS220PAICH1A, IS400TRLYS1B, IS220YSILS1B)
Ethernet Switches: IS420ESWB series for network topology and redundancy
Extension components
Redundant-CPU Kit: Second GE 04220FL11232A plus fail-over backplane and Logic Controller Sync link
HMI Panel Module: MPU50 iDPU for local operator interface and graphics
Console Cable Kit: DB-9 to USB adapters and RJ-45 patch cables for engineering access
DIN-Rail Adapter: Clips for non-VME retrofit installations
Software support
Configuration & Engineering: GE ToolboxST™ for control‐logic configuration, I/O mapping, and calibration wizards
Firmware Management: USB or network-based firmware loader with CRC and rollback support
Diagnostics & Monitoring:
Built-in self-test at power-up with fault logging
Real-time health and performance metrics accessible via HMI or OPC-DA/Gateway
Documentation: Covered in GE Speedtronic Mark VIe/VIeS System and Installation Manuals
