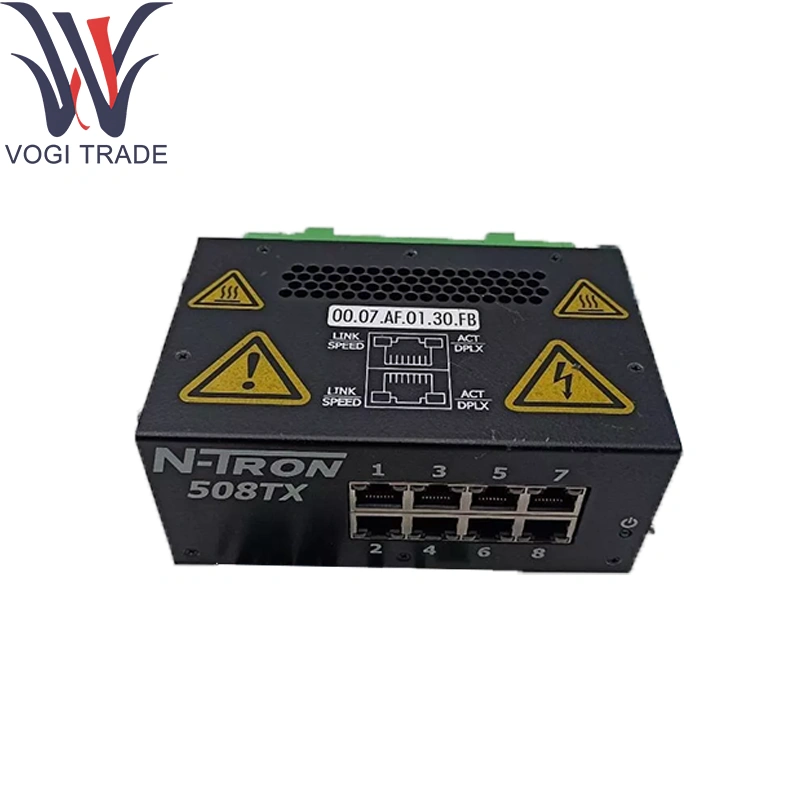

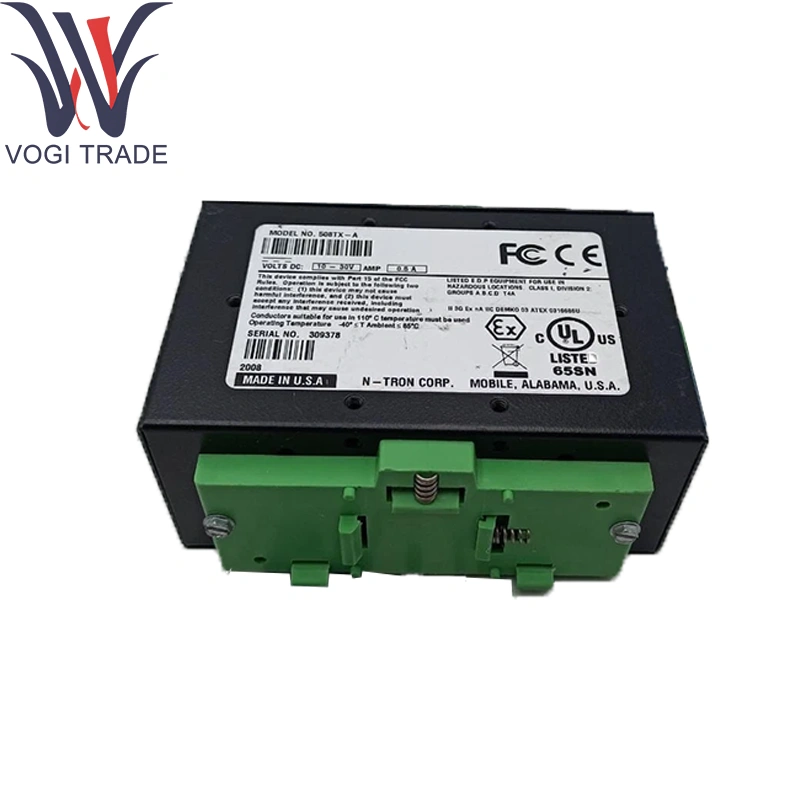

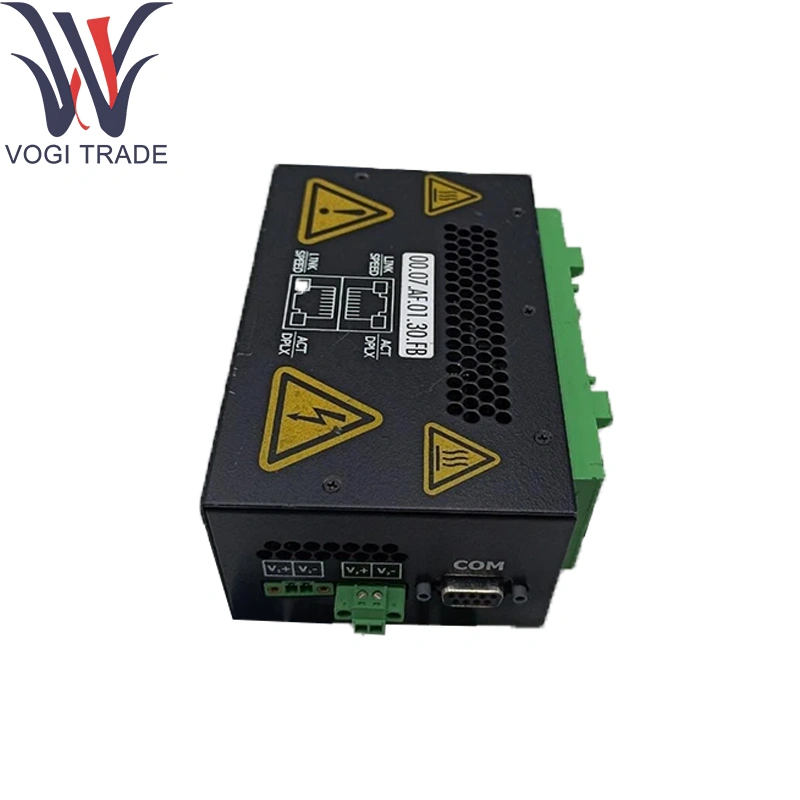

Brand: GE Description: 336A4940DNP508TX Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 20 Payment Term: T/T Shipping Port: Shenzhen GE 336A4940DNP508TX A rugged, DIN-rail mountable unmanaged Ethernet switch for industrial control networks.
|
Manufacture |
GE |
|
Model Number |
336A4940DNP508TX |
|
Ordering Number |
336A4940DNP508TX |
|
Catalog |
Mark VI |
|
Description |
GE 336A4940DNP508TX N-TRON Switch |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
100 × 45 × 120 mm |
|
Weight |
0.35 kg |
Technical Parameters
Ports:
8 × 10/100Base-TX RJ-45 (auto-MDIX, full/half-duplex)
2 × 100Base-FX SFP slots (fiber-optic uplinks)
Switching Capacity: 2 Gbps non-blocking
MAC Addresses: 4 K entry table
Latency: < 5 µs typical
MTBF: ≥ 500 000 hours
Connector: Integrated GE 336A4940DNP508TX circular D-sub adapter for field I/O cables
Power Input: 12–48 V DC (terminal block), 5 W max
Environmental:
Operating Temp: –40 °C to +75 °C
Storage Temp: –40 °C to +85 °C
Humidity: 0–95 % RH, non-condensing
Product function
An unmanaged Layer 2 switch delivering plug-and-play Ethernet connectivity. GE 336A4940DNP508TX It buffers and forwards packets at wire speed, supports fiber uplinks for long-haul or redundant links, and provides link/activity LEDs per port for diagnostics. The circular-connector interface enables quick-disconnect field wiring with IP67 cabling.
Core supporting modules
Controllers: GE Mark VIe CPU or N-Tron managed switches for uplink aggregation
I/O Racks: GE IONet switches (e.g.,IS420ESWBH3AE) and remote I/O modules
Fiber Transceivers: SFP modules for multimode/single-mode fiber links
Extension components
DIN-Rail Mounting Kit: Included for standard 35 mm rail installation
GE 336A4940DNP508TX
Redundant Power Module: Field-installable dual-feed diode-OR board
Protective Backshell: For securing circular-connector cable assemblies
SFP Modules: User-selectable fiber-optic transceivers (LC-type)
Software support
Configuration: Unmanaged; no software configuration required
Monitoring: Link/activity LED indicators; optional SNMP via external N-Tron console unit
Diagnostics: Port-status LEDs and fault relay output (via accessory module)
Documentation: GE/N-Tron 336 Series Quick Start Guide and Use’s Manual
