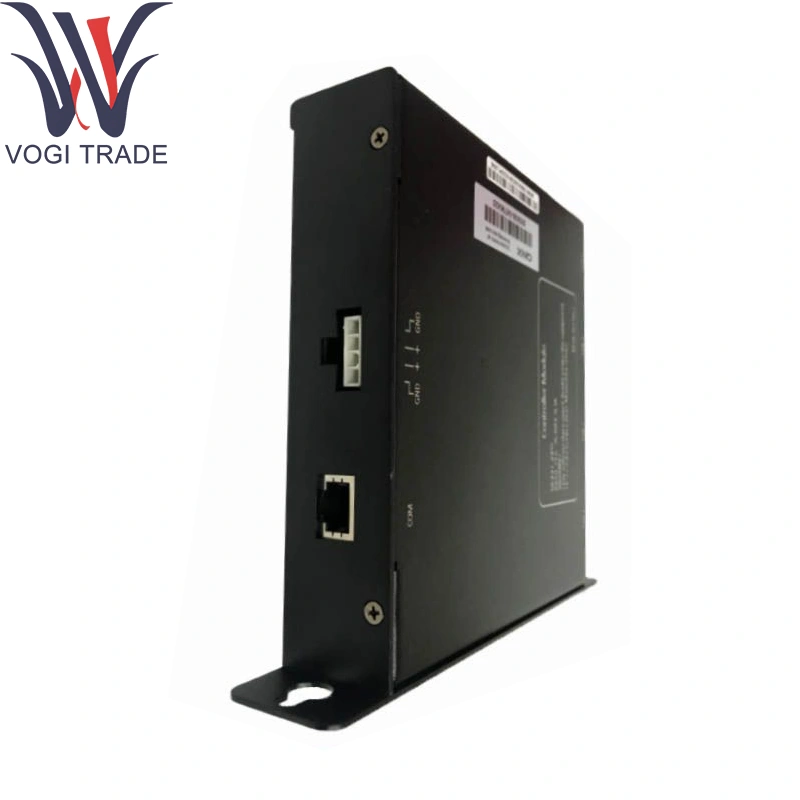

Brand: GE Description: MPU50 369B1860G0026 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 20 Payment Term: T/T Shipping Port: Shenzhen The GE MPU50 369B1860G0026 iDPU module provides the core graphics processing and data-handling for operator-interface panels in GE Speedtronic Mark VIe/VIeS control rooms and local control kiosks.
|
Manufacture |
GE |
|
Model Number |
MPU50 |
|
Ordering Number |
369B1860G0026 |
|
Catalog |
531X |
|
Description |
GE 369B1860G0026 iDPU Module |
|
Country Of Origin |
USA |
|
HS CODE |
8471800000 |
|
Dimension |
240 × 160 × 40 mm |
|
Weight |
0.65 kg |
Technical Parameters
Processor: ARM-based dual-core 1 GHz with FPGA-accelerated graphics in the GE MPU50 369B1860G0026
Memory: 1 GB DDR3 RAM; 4 GB onboard flash storage
Display Interface: LVDS for up to 1920 × 1080 @60 Hz TFT panels
Touch/Input: Resistive or capacitive touchscreen support plus 4 × hardware pushbuttons
Ethernet: Dual 10/100/1000Base-T RJ-45 (primary control network + engineering port)
Serial: 1 × RS-232/422/485 port for legacy device integration
USB: 2 × USB 2.0 Type-A for keyboard, mouse, or USB storage
Video Output: 1 × HDMI out (for auxiliary monitor)
Power: 24 V DC nominal (18–32 V DC range), 15 W max for GE MPU50 369B1860G0026
Operating Temp: 0 °C to +55 °C
Storage Temp: –20 °C to +70 °C
Humidity: 10–90 % RH, non-condensing
Certifications: CE, UL/cUL, ATEX Zone 2 (when installed per GE cabinet standard)
Product function
HMI Execution: Hosts and executes CIMPLICITY, Proficy, or GE's HTML5-based operator applications on the GE MPU50 369B1860G0026.
Graphics Processing: Renders dynamic mimic diagrams using FPGA-offloaded rendering
Local I/O: Scans touchscreen/key inputs via the GE MPU50 369B1860G0026; outputs status to GE CPU
Web Services: Embedded HTTP/S server for remote configuration
Core supporting modules
Power Supply: Integrated from MPU-50-PSU or via backplane connector
Mounting Frame: GE standard bezel with gasketed housing for the GE MPU50 369B1860G0026
Cabling Harness: 369A-1767Hxx assembly for interfaces
Extension components
External Keypad: 12-key rubber-keypanel (369A-1872G0011)
Spare Bezel Kits: Replacement front facia (369B-1861G0027)
USB Backup Kit: 8 GB industrial USB stick with imager utility
Mounting Clips: Panel-clip set (369A-1734G0012)
Software support
Configuration Tools: GE ToolboxST™ Panel Designer
Firmware Management: Updates via USB/network utility
Diagnostics: Self-test with health logs in "System Diagnostics"
Remote Access: SSH/Telnet/VNC capabilities
Documentation: Detailed in GE Document 369B1860G0026 (MPU50 iDPU User & Installation Guide)
