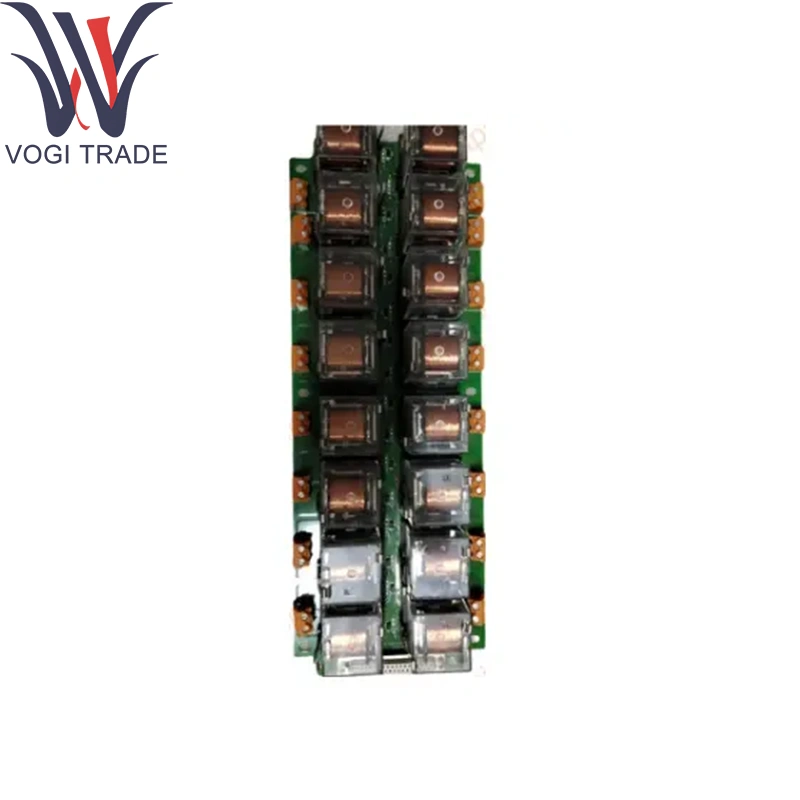

Brand: GE Description: BDO20 388A2275P0176V1 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 20 Payment Term: T/T Shipping Port: Shenzhen The GE BDO20 388A2275P0176V1 Used as the primary field-wiring interface for GE’s BDO20 I/O-pack carriers in Speedtronic Mark VIe/VIeS control cabinets.
|
Manufacture |
GE |
|
Model Number |
BDO20 |
|
Ordering Number |
388A2275P0176V1 |
|
Catalog |
531X |
|
Description |
GE BDO20 388A2275P0176V1 Terminol Board |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
233 × 160 × 50 mm |
|
Weight |
0.3 kg |
Technical Parameters
Backplane Connectors: Two 50-pin DIN-style connectors matching BDO20 carrier
Terminal Blocks:
Pluggable screw-clamp type, 52-position design of GE BDO20 388A2275P0176V1
Ratings: 300 V AC/DC, 10 A per pole
Breakout Design: Passive signal passthrough; no active components or power conversion
Electrical Isolation: Provided by individual I/O modules; terminal board carries only unaltered signals
Environmental:
Operating Temp: –40 °C to +85 °C
Storage Temp: –55 °C to +100 °C
Humidity: Up to 95 % RH, non-condensing for GE BDO20 388A2275P0176V1
Product function
Consolidates and labels all field-wiring terminations for mixed I/O packs in the GE BDO20 388A2275P0176V1, maintaining signal integrity while simplifying installation and maintenance. Field wiring remains on terminal blocks during I/O-pack swaps, minimizing downtime and wiring errors.
Core supporting modules
BDO20 I/O-Pack Carrier: Provides power, IONet backplane, and mechanical support
I/O Modules: Discrete-input, discrete-output, analog-input, analog-output, and specialty boards that plug into the carrier of GE BDO20 388A2275P0176V1
Controller CPU: GE Mark VIe CPU modules processing I/O data via the IONet network
Extension components
Alternate Terminal Blocks: Available in 16-, 32- and 52-pole configurations; spring-clamp variants for vibration-resistant wiring
Mounting Kits: DIN-rail and flat-panel adapter clips for 35 mm rails or chassis panels
Cable Management: Wire-duct channels, strain-relief clamps, and labeling tags for harness organization
Spare Parts: Replacement backplane connector assemblies and terminal-block kits for GE BDO20 388A2275P0176V1 field service
Software support
Configuration: None—fully passive hardware; no firmware or software on the terminal board itself
Diagnostics: Presence verified at power-up via carrier ID; missing or incorrect modules flagged in controller diagnostics
Documentation: Installation and wiring guidance in the GE BDO20 I/O Installation Guide and Terminal-Board Reference Manual for GE BDO20 388A2275P0176V1.
