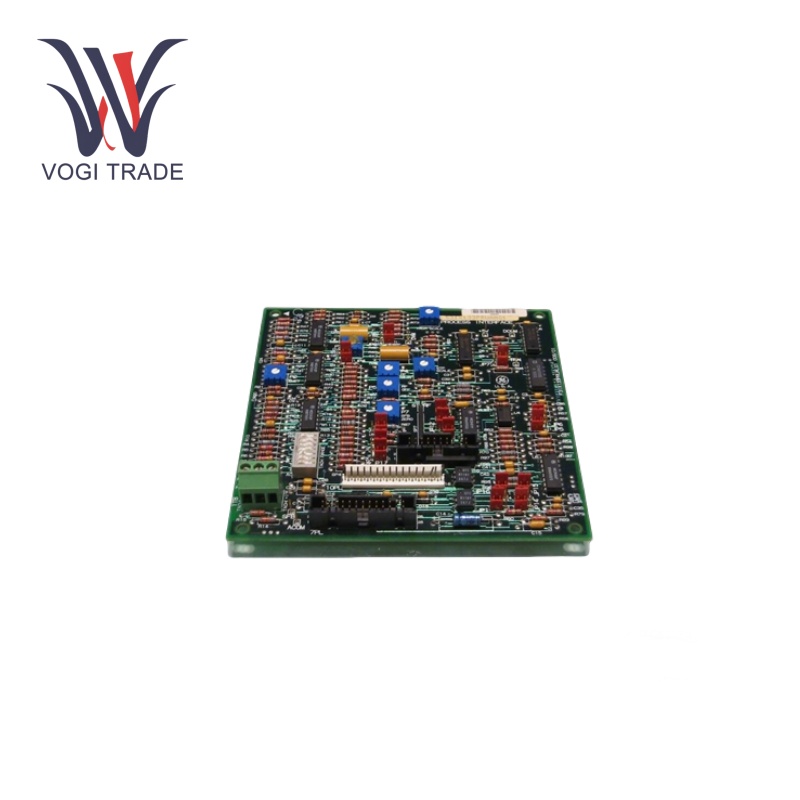

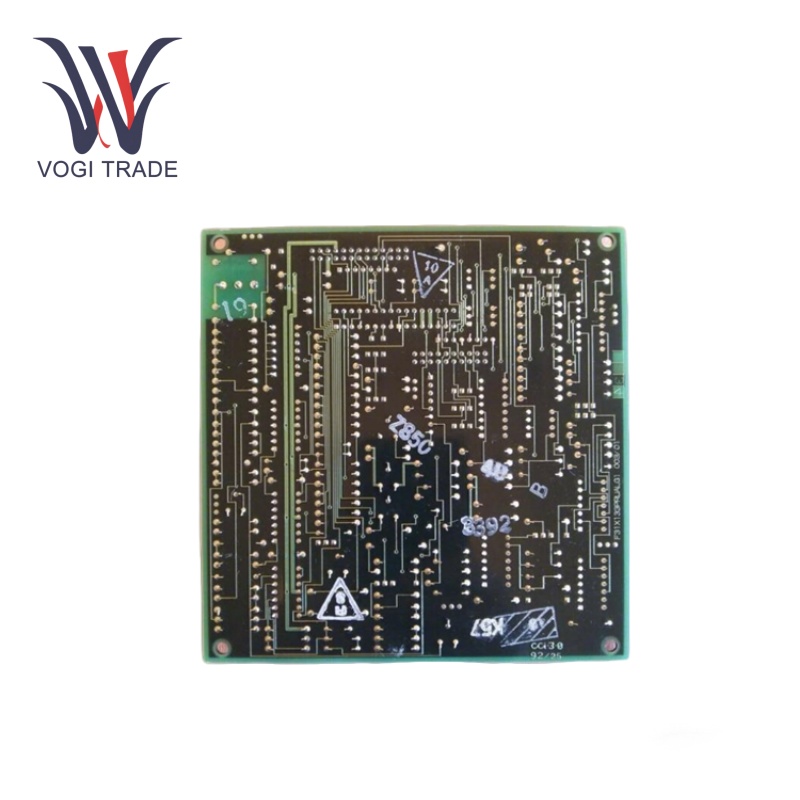

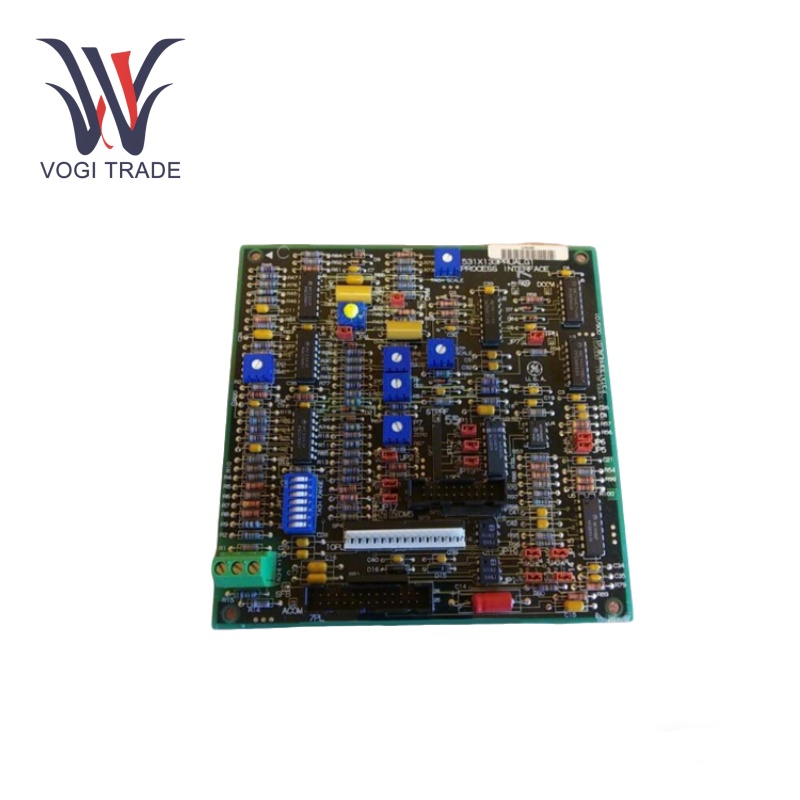

Brand: GE Description: PROCESS INTERFACE BOARD Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: ShenZhen GE 531X133PRUALG1 is a process interface board designed by General Electric, which has a 28V DC typical power supply with an internal solid-state circuit breaker and soft start. Equipped with a 32-bit RISC CPU running at 266MHz, it ensures efficient data processing.
|
Manufacture |
GE |
|
Model Number |
531X133PRUALG1 |
|
Ordering Number |
531X133PRUALG1 |
|
Catalog |
531X |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
43cm*17.7cm*2cm |
|
Packing Dimension |
45cm*20cm*4cm |
|
Weight |
0.62kg |
Technical Parameter
Input Voltage: 28V DC.
Processor: 32-bit RISC CPU, 266MHz.
Operating Temperature: -30°C to 65°C.
I/O Pack Rating: Class 1, Div. 2.
Equipped with: Ambient temperature sensor.
Potentiometer: 7.
Resistor Network Arrays: 5.
Aluminum Electrolytic Capacitor: 1
Terminal Strip: 1 three-position.
Cable Connectors: 2 male vertical pin.
Functional Features
Signal Processing: GE 531X133PRUALG1 isolates and converts the input signal to the appropriate one that the connected control systems require.
Easy Installation: Comes with drilled holes in all four corners for simple installation. GE 531X133PRUALG1 also has a 3-position terminal strip as well as two male vertical pin cable connector and header connector to allow various wiring and connection methods.
Jumper & Test Point: GE 531X133PRUALG1 has jumper switches for configuration and a lot of test points for trouble shooting. Gen-2 also adds a seven-position "tach range" switch allowing the user to set the appropriate input range for the tachometer.
The CPU is a high-speed processing unit that can read and write millions of words as data, with a maximum of 32K I/O that can be handled under different programming languages, completing various complex applications effortlessly.
Application Fields
Industrial Control: GE 531X133PRUALG1 is used for industrial production, processing and controlling various motor, sensor and other equipment signals, like motor speed control, position detection.
Process Control and Monitoring:：In chemical, petroleum and other process industries, it is used to monitor and control process parameters such as temperature, pressure and flow, ensuring the stability and safety of the production process.
Factory Automation: GE 531X133PRUALG1 is used in the control and monitoring of conveyor belts, robotic arms and other equipment in factory automation systems, increasing production efficiency and quality.
Data Acquisition Systems: It can collect and process data from various sensors, and provide data support for data analysis and decision-making in the industrial field.
