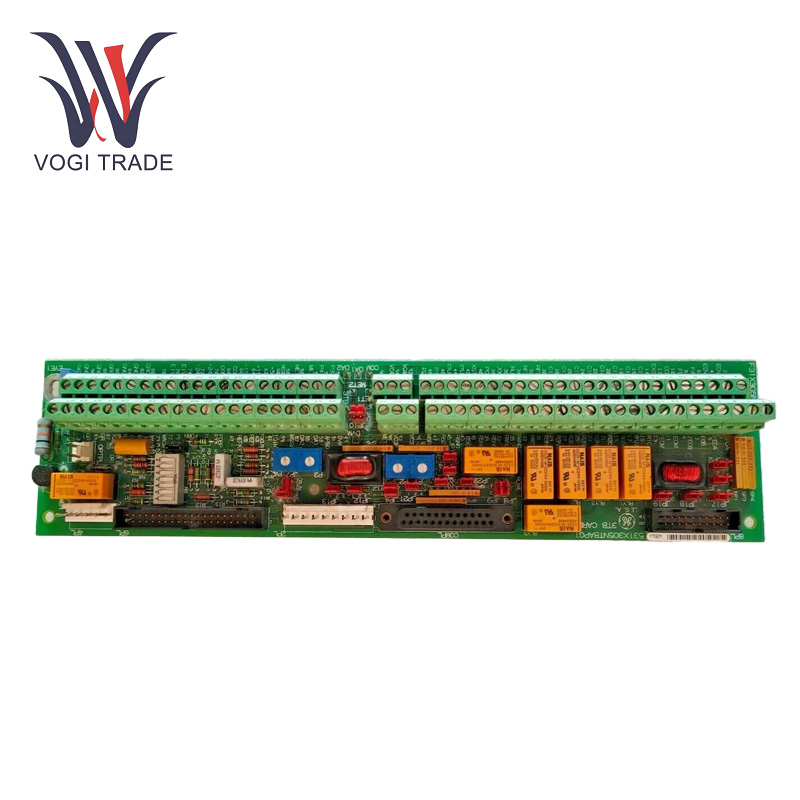

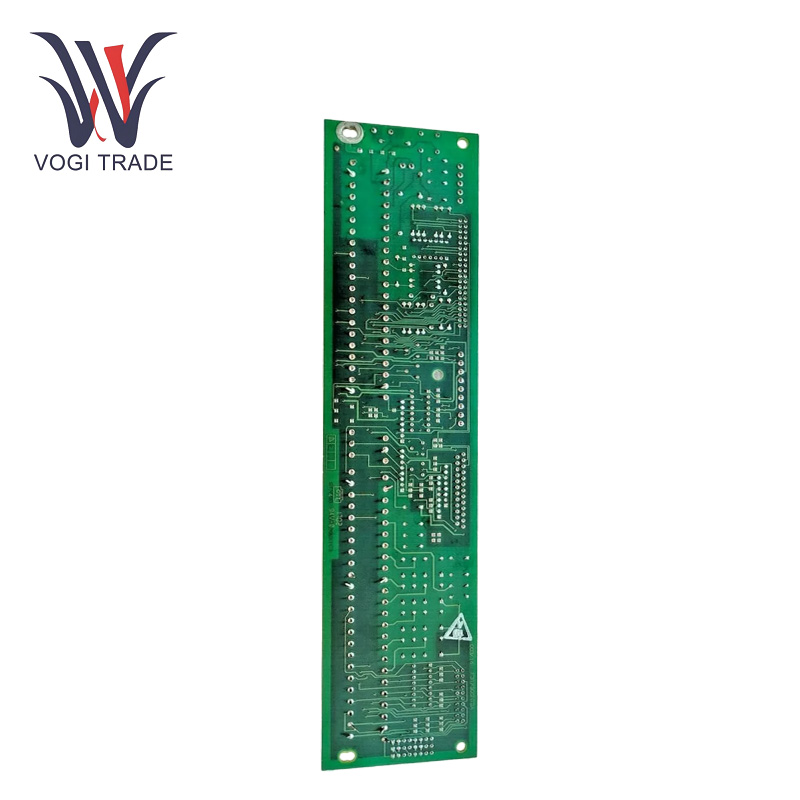

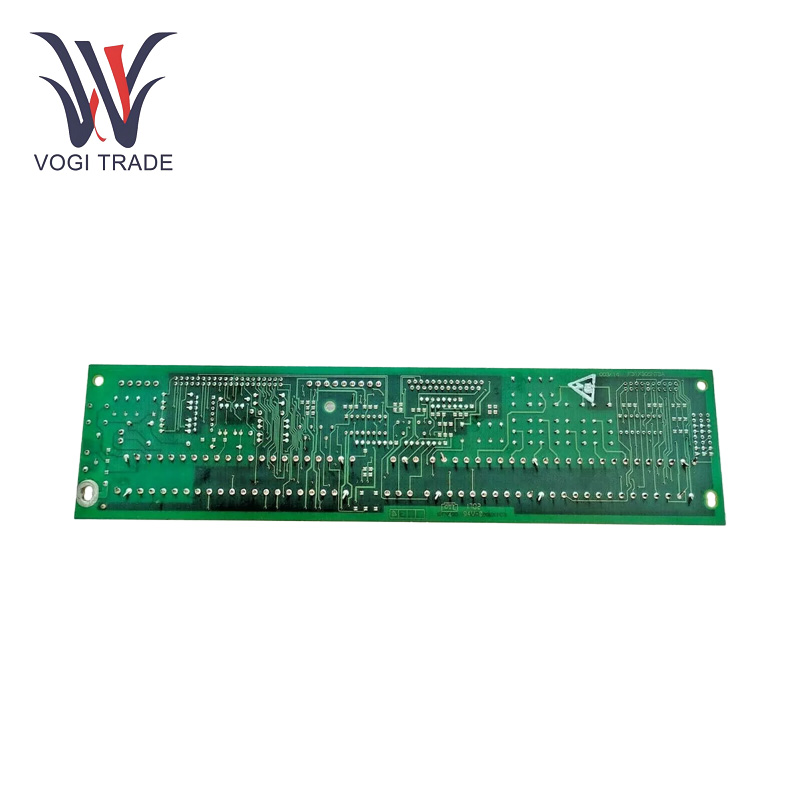

GE 531X305NTBAPG1

Technical Parameters

Temperature: -40°C to +85°C

Humidity: 5% to 95%

Protection Level: IP20 or above

Regulated Power Supply Output: +5VDC and 15VDC regulated, current capacity is 300mA.

Unregulated Power Supply Output: 24VDC, current capacity is 500mA; 120VAC can also be output, current capacity is 0.5A.

Digital Input: Accepts 12 general control inputs, input voltage can reach up to 24VDC, GE 531X305NTBAPG1 can receive discrete signals. The other side of the input can be used in the disconnected state and biased to +24V or -24V DC through hardware jumpers to meet different logic requirements.

Digital Outputs: 7 relay outputs, all with 120VAC contact rating, can manipulate the switch or state switching of external devices

Analog Inputs and Outputs: Contains a differential A-Quad-B encoder interface with labeled channels for connection with the drive and optically isolated on the drive control board to effectively prevent interference. The GE 531X305NTBAPG1 has four potentiometers for scaling low-level analog I/O signals.

Features

Data transmission reliability: It ensures that the signals sent to other connected devices are transmitted with high reliability. Whether sending commands from the control unit to the motor or receiving feedback signals from the sensor, the GE 531X305NTBAPG1 can help reduce signal loss, interference and ensure data integrity.

Industrial Equipment Compatibility: The product has good compatibility with some different types of industrial equipment, such as motors, sensors and controllers. The GE 531X305NTBAPG1 can be seamlessly integrated into existing systems, reducing the complexity of system upgrades or expansions.

Fast response: In motor drive control systems, GE 531X305NTBAPG1 can accurately control motor speed, torque and position. The user-friendly interface of the servo system allows the operator to assign parameters very precisely, and the connected software program can do the same and adjust the motor's functions according to the highest production requirements.

Fault detection and protection: It can identify potential faults or abnormal operating conditions in the connected circuit or equipment. After detecting the problem, the GE 531X305NTBAPG1 can implement appropriate protection mechanisms, which may include disconnecting the power supply to the motor in the event of an overload or short circuit to avoid damage to the equipment and cause further damage.

Application range

Industrial automation: The GE 531X305NTBAPG1 can control the motors of conveyor belts, robotic arms and various mechanical moving parts to ensure that the entire production process runs smoothly and harmoniously.

Process control: It is used to regulate pumps, valves and other systems in industries such as chemical plants, refineries and water treatment facilities. It accurately regulates the operation of these equipment to ensure the stability of process parameters and improve production efficiency.

Manufacturing equipment: The GE 531X305NTBAPG1 is used in a variety of manufacturing equipment, including CNC machine tools, because it enables precise motor and actuator control, helping to produce high-quality products with precise dimensions and finish.

Building automation: In building automation systems, GE 531X305NTBAPG1 can be used to control and monitor lighting systems, air conditioning systems, ventilation systems, and security systems to achieve automated management and energy-saving control of building equipment, and improve building comfort and safety.
