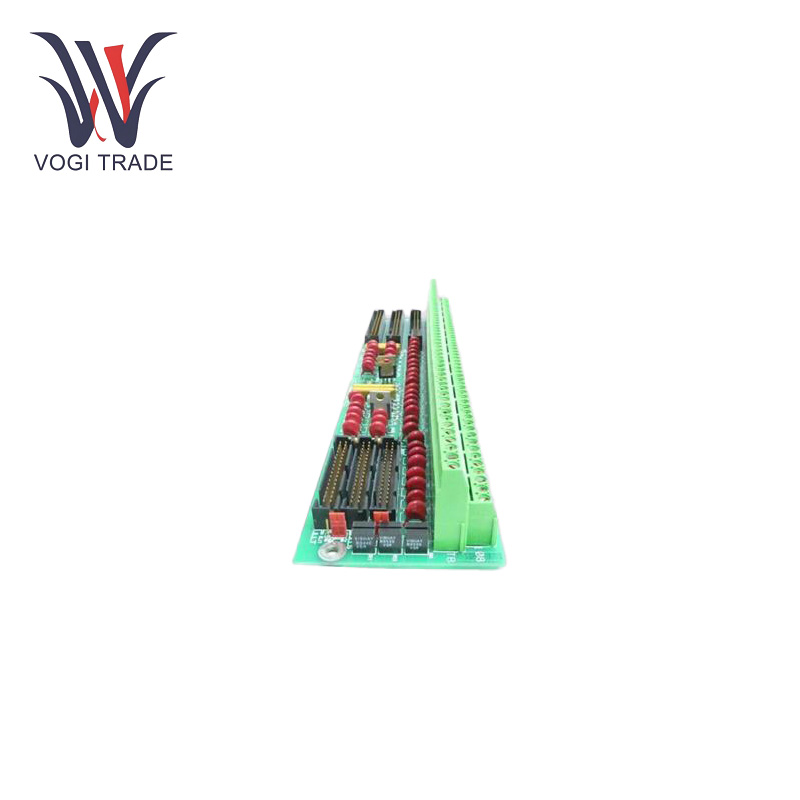

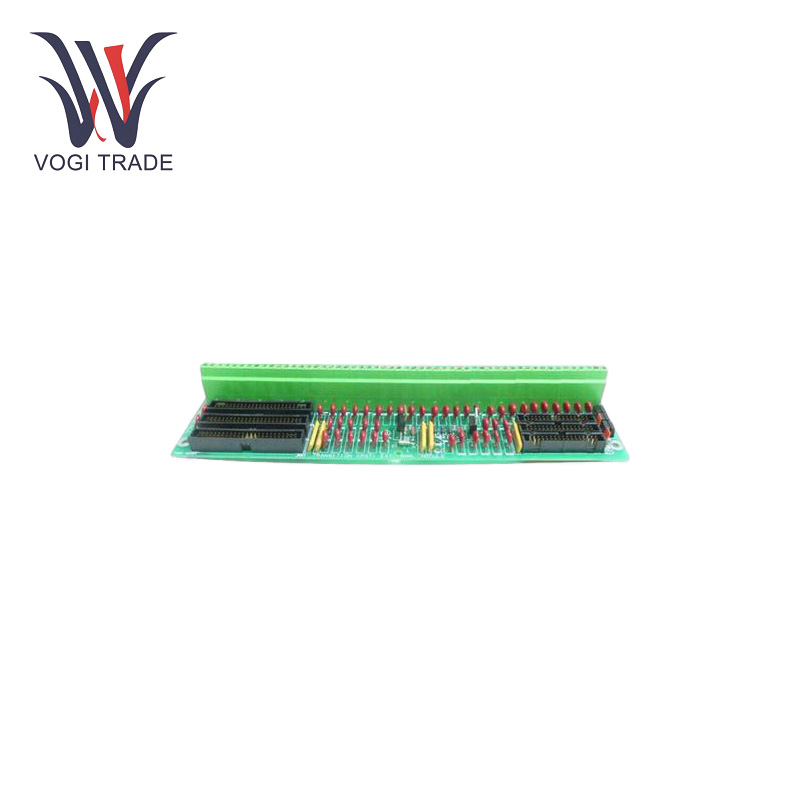

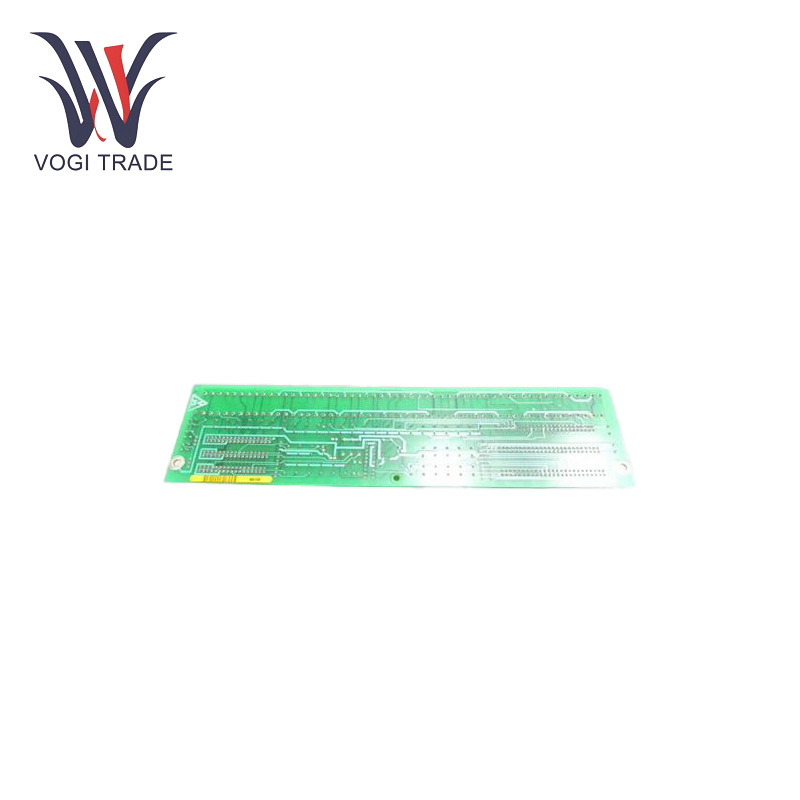

GE DS200CTBAG1ACC

Operating Parameters

Input Voltage: 24V DC.

Operating Temperature Range: -28°C to 55°C.

Connectors: 8pl stca board ionet signal connector, jaa tcca board output signal connector, jai corebus connector, jaj corebus connector, jbb tcca board axis voltage and current signal connector, jee stca board corebus connector, jpd tcpd board power signal connector, jx tcda board ionet signal connector

Ports: RS-232 serial port There is a TIMN diagnostic RS-232 9-pin D-shell connection serial port on the card.

Resistors, Capacitors and Diodes: There are a total of 23 red varistors, 7 diodes and several resistors on the board.

Board Size: The board is 6.25 x 4.25, standard size, which can be easily installed and integrated into the system.

Product Features

Analog Type END: As an analog terminal module, it is used as a terminal board for the universal data processor in the GE Mark V Speedtronic system. It terminates analog signals from system sensors and actuators and maintains the integrity of signal transmission and processing.

Communication: The GE DS200CTBAG1ACC has links for ionet and arcnet processors. The jx tcda board ionet signal connector transmits the ionet signal when the ionet signal is connected to the 8pl stca board.

Power Signal Transmission: The jpd tcpd board power signal connector is responsible for carrying the 24V DC power signal output by the tcpd board, providing power supply and distribution for the board and other terminal components.

Jumpers: There are some hardware jumpers on the board that can be moved manually, including bj1-bj14 and bj15. These jumpers allow the neg input of its corresponding ma input to be connected to dcom, and dcom to be connected to the RS-232 monitoring port, which are identified by ordinary copper pads wrapped in colored silk screen pads, allowing different application configurations.

Application Scope

Power generation: GE DS200CTBAG1ACC controls gas, steam and wind turbines in power plants. It can accurately receive and process analog signals from various sensors, including temperature sensors, pressure sensors, speed sensors, etc., to ensure safe and efficient operation of steam turbines and power generation processes.

Oil and gas: GE DS200CTBAG1ACC is used in the control systems of pumps, compressors and other equipment in the process of oil and gas exploration and production, receiving and processing analog signals from sensors, actuators, etc. to ensure the normal operation and safety of equipment.

Petrochemical: In the process of petrochemical equipment, it can receive and process analog signals from control systems such as reactors and distillation towers, accurately control and monitor the production process, and improve production efficiency and product quality.
