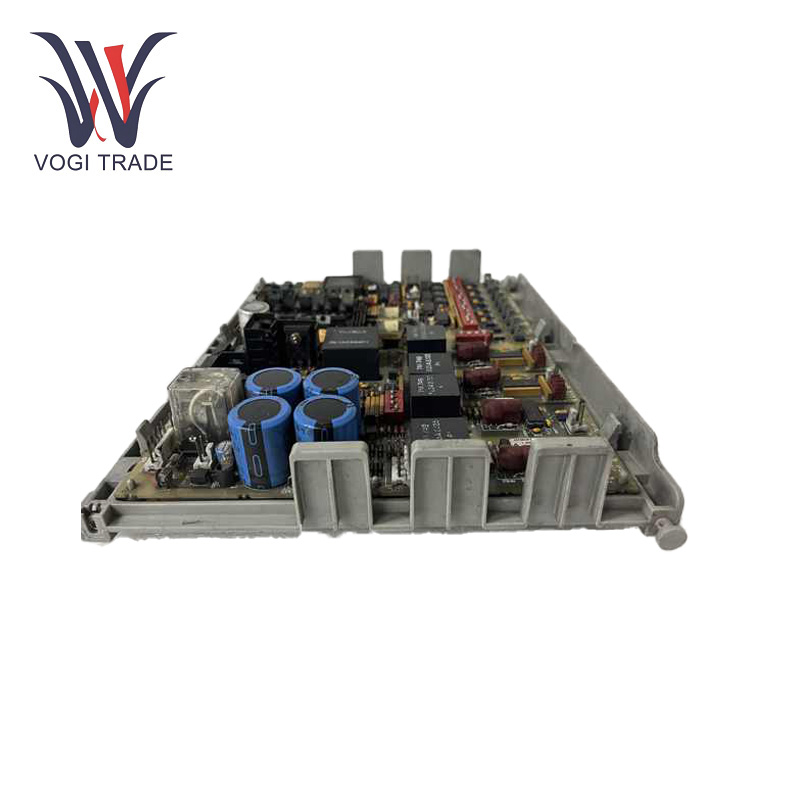

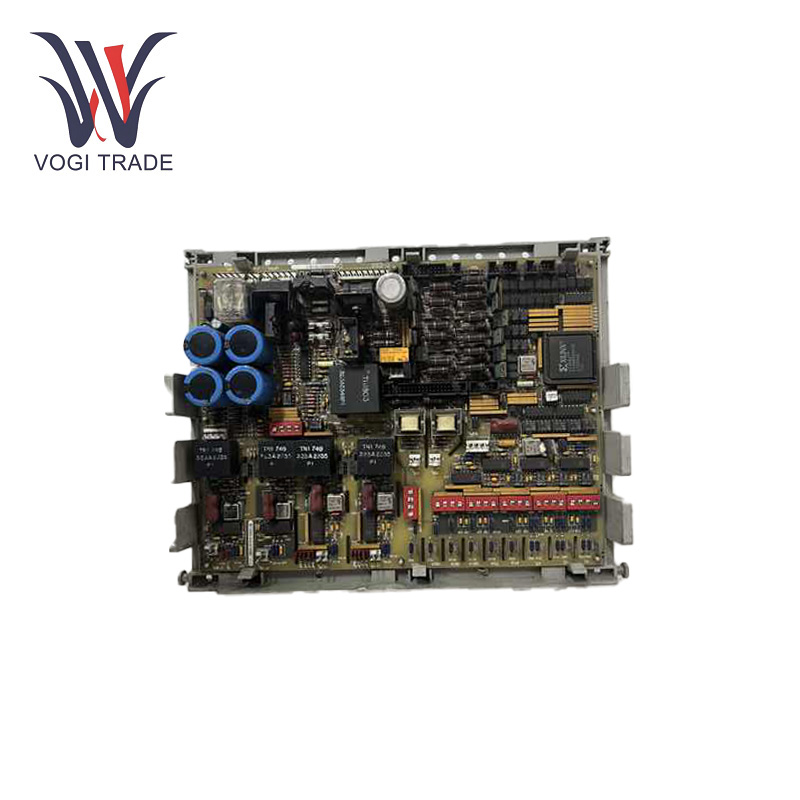

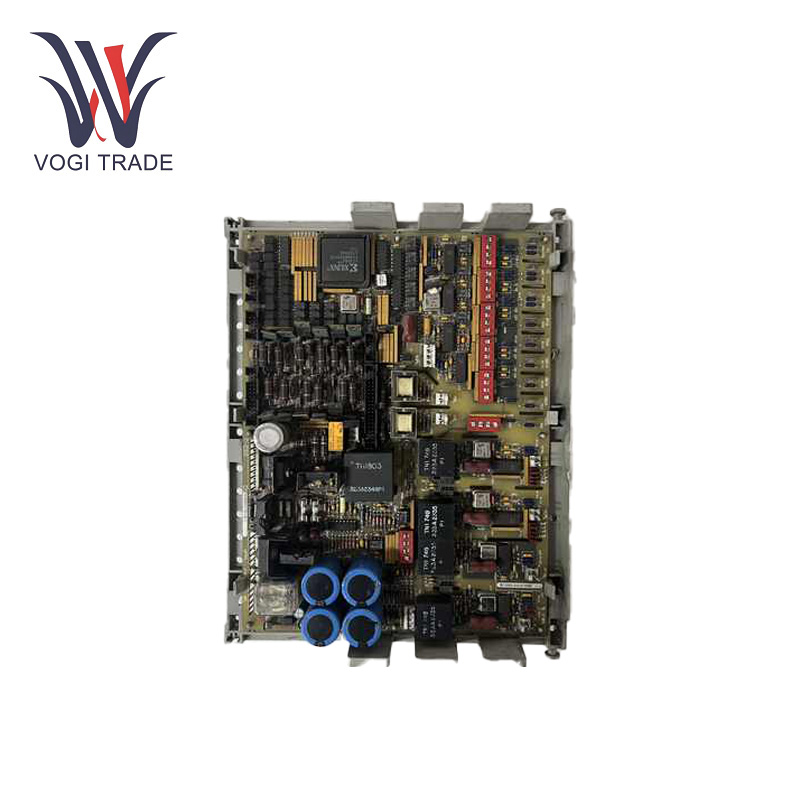

Brand: GE Description: DC Feedback Power Supply Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE DS200DCFBG1BLC is a reliable and efficient DC power supply board, whose primary function is to convert incoming AC power into regulated DC outputs to maintain the functionality of turbines in power generation, oil and gas, and various industrial applications.
|
Manufacture |
GE |
|
Model Number |
DS200DCFBG1BLC |
|
Ordering Number |
DS200DCFBG1BLC |
|
Catalog |
Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
35cm*35cm*5cm |
|
Packing Dimension |
37cm*37cm*7cm |
|
Weight |
1.5kg |
Technical Parameter
Input voltage: 38VAC to 115VAC.
Input frequency: 0 to 500kHz.
Output voltage: 24VDC.
Output current: 5A.
Output power: 120W.
Operating Temperature Range: 0°C to +60°C.
Storage Temperature Range: -40°C to +85°C.
Humidity: 5% to 95% non-condensing.
Circuit system: Contains AC/DC monitoring circuit, control level power supply circuit, motor excitation power supply circuit and drive circuit, etc. Users can configure twelve jumpers and seven dip switches to meet external needs.
Functional Characteristics
Versatile Power Supply: GE DS200DCFBG1BLC can handle from as low as 38 to 115 VAC inputs at 0 to 500 kHz. It offers all control-level DC voltage power inputs to the installed drive for the enclosure cooling fans.
Comprehensive Circuit Systems: It has AC and DC monitoring loops, a control level supply loop, a motor field power loop, an everyday driver loop. GE DS200DCFBG1BLC is capable of tracking a wide range of AC line and DC motor or generator signals including but not limited to armature current and voltage, field current, AC line current, and the magnitude and phase sequence of AC line voltage.
Configurable Hardware: The twelve jumpers and seven dip switches on the card allow for configurable design to meet specific external needs.
Effective Protection Mechanisms: GE DS200DCFBG1BLC provides for heavy interruption or surge protection working by three fuses on board to protect currents from strong interruption on board and the entire Mark V series automated drive assembly.
Operation Methods
Insert: With the board in mind, insert GE DS200DCFBG1BLC into the respective place or mount unit and make sure it is firmly placed. Notices that guide the direction that the board is connected will prevent a wrong installation. Power lines signal connection on the map. Make sure the contacts are secure so that there are no loose contacts or signals.
Configuration: Adjust twelve jumpers and seven dip switches mounted on the card according to the needs of the specific application and external to meet different work conditions.
Application Fields
Power Generation Industry: It is usefully used in power generation industry in the control systems of steam turbines, rapid gas turbines, and generators. GE DS200DCFBG1BLC is capable of controlling turbine servo motors, monitoring sensor position and flow rate, and safe and efficient generator equipment operation.
Industrial Automation: It can be used to control and monitor servo motors, position sensors, and flow meters, etc., in industrial automation production line, such as automotive manufacturing, mechanical processing, and food processing industries, improving the automation level and production efficiency of the production line.
Petrochemical: In petrochemical production, GE DS200DCFBG1BLC can be used in the control and monitoring of pumps, compressors and valves to ensure accurate control of key equipment, safe operation and improved stability and reliability of the production process.
