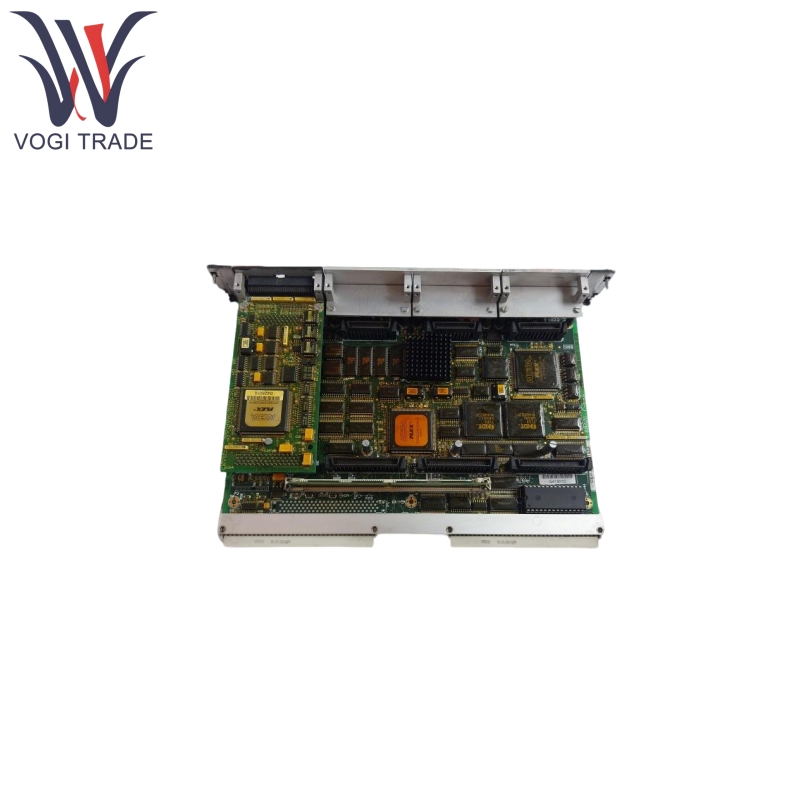

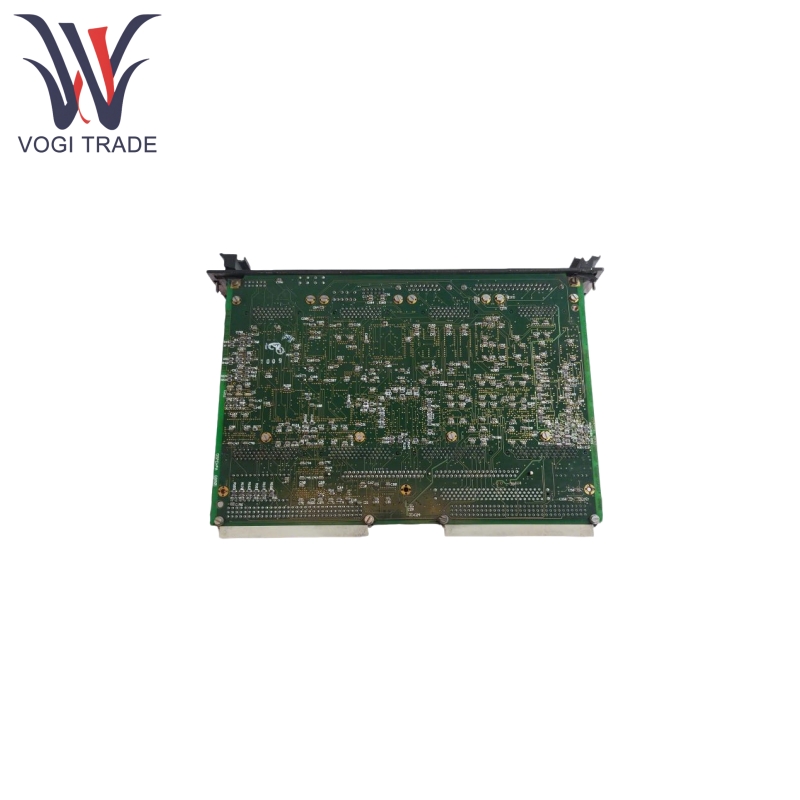

Brand: GE Description: Digital Signal Processor Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen GE DS200DSPCH1AEA integrates real-time signal processing, communication protocol conversion, and high-speed control functions, and is mainly used in gas turbine control, high-power converter management, wind power generation systems, and other scenarios. Its core function is to achieve precise control and monitoring of complex industrial equipment through digital signal processing technology, supporting multi-channel data interaction and real-time feedback.
|
Manufacture |
GE |
|
Model Number |
DS200DSPCH1AEA |
|
Ordering Number |
DS200DSPCH1AEA |
|
Catalog |
DS200 |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8543709990 |
|
Dimension |
16*10*6cm |
|
Weight |
1.4kg |
Product Features
GE DS200DSPCH1AEA can be equipped with the TI TMS320C6203BGT200 processor, operating at a clock frequency of 200 MHz, supporting complex algorithms and real-time data processing, making it suitable for high-precision control applications.
GE DS200DSPCH1AEA provides 4 analog inputs (±10V, 12-bit resolution) and 8 digital outputs, supporting signal conditioning, isolation, and buffering functions, enabling direct connection to sensors, actuators, and other control modules.
GE DS200DSPCH1AEA integrates interfaces such as Ethernet, RS-485, and RS-232, and is compatible with industrial protocols like Modbus TCP/IP and EtherNet/IP, enabling seamless communication with upper-level computers, PLCs, or DCS systems.

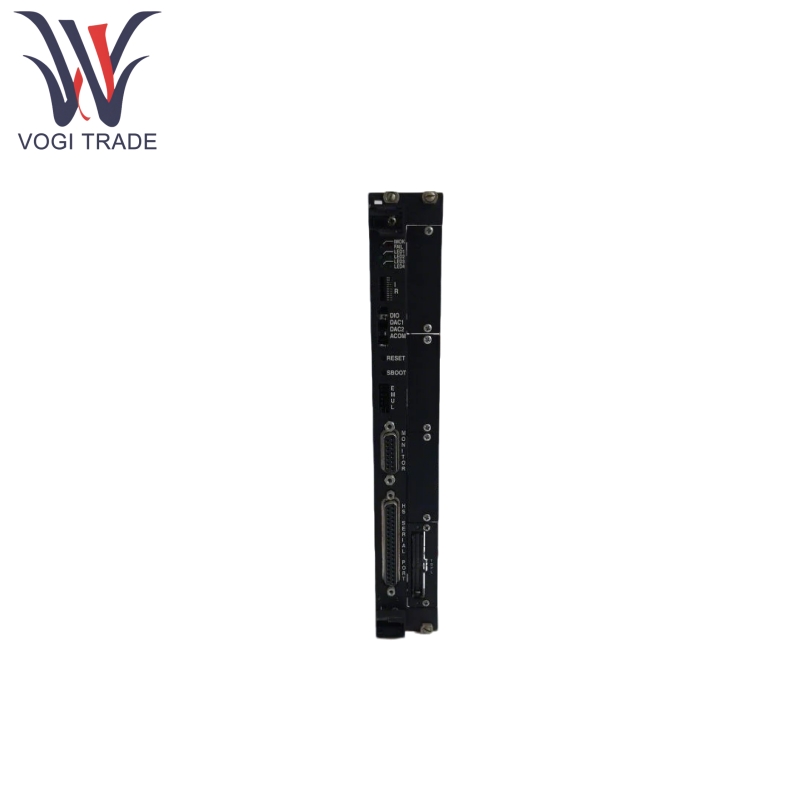

GE DS200DSPCH1AEA features 6 status indicator LEDs that display the module's operational status in real time, includes hardware overcurrent protection and software watchdog functionality, and supports hot-swap maintenance to ensure system stability.
Product Using Principle
GE DS200DSPCH1AEA receives sensor data through analog input channels and converts it into digital signals.
GE DS200DSPCH1AEA uses a DSP chip to execute preset algorithms and generate control commands.
GE DS200DSPCH1AEA sends signals to actuators through digital output channels and transmits data to host computers or other modules through communication interfaces.
GE DS200DSPCH1AEA receives device status feedback and dynamically adjusts control strategies to ensure system stability and efficiency.
GE DS200DSPCH1AEA interacts with other GE modules via the VME bus to achieve collaborative operation within a distributed control system (DCS).
Product Applications
Gas turbine control: GE DS200DSPCH1AEA can be used for speed regulation, fuel distribution, and fault protection in steam or gas turbines.
Wind power generation: It can manage grid connection control of converters and generators to optimize power quality.
Uninterruptible power supply: It can achieve multi-module redundant control and load balancing.
Machine tools and robots: It can perform high-precision motion control and trajectory planning.
Petrochemical Industry: It can monitor process parameters and regulate valves, pumps, and other equipment.
Energy Storage Systems: It can coordinate battery pack charging/discharging management and energy scheduling.
