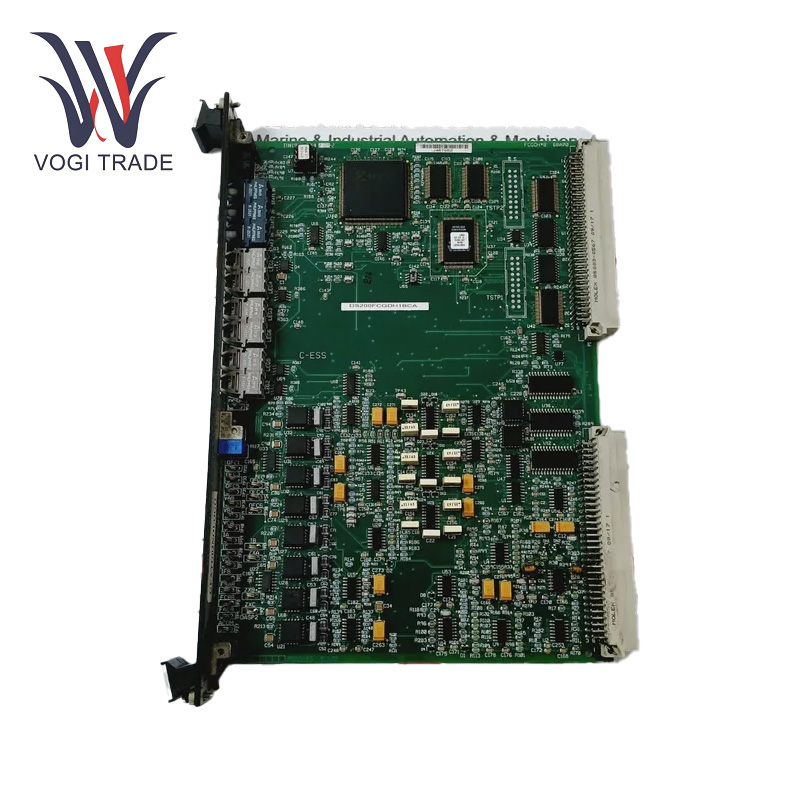

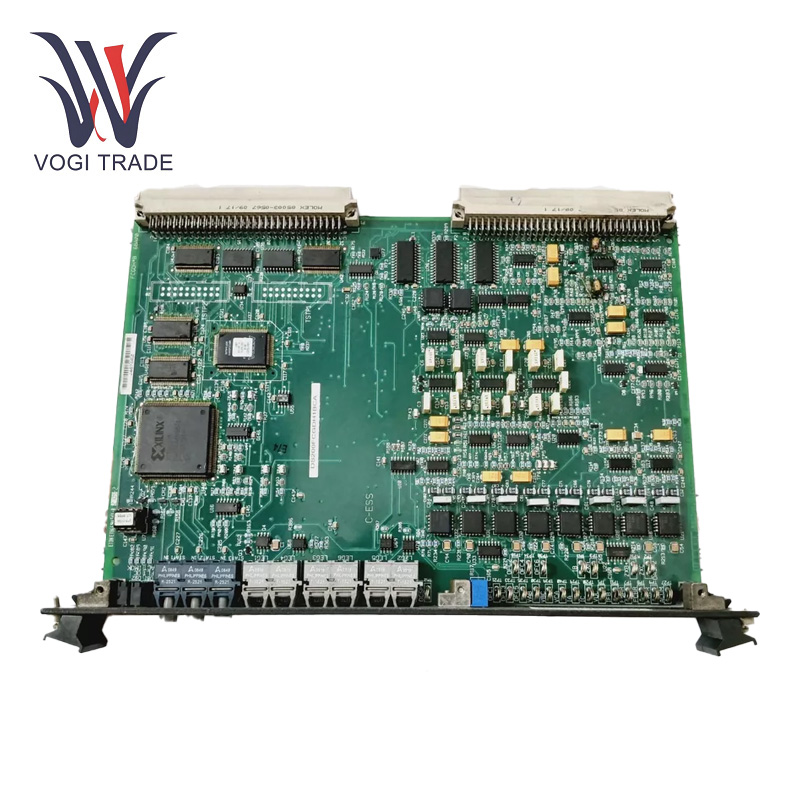

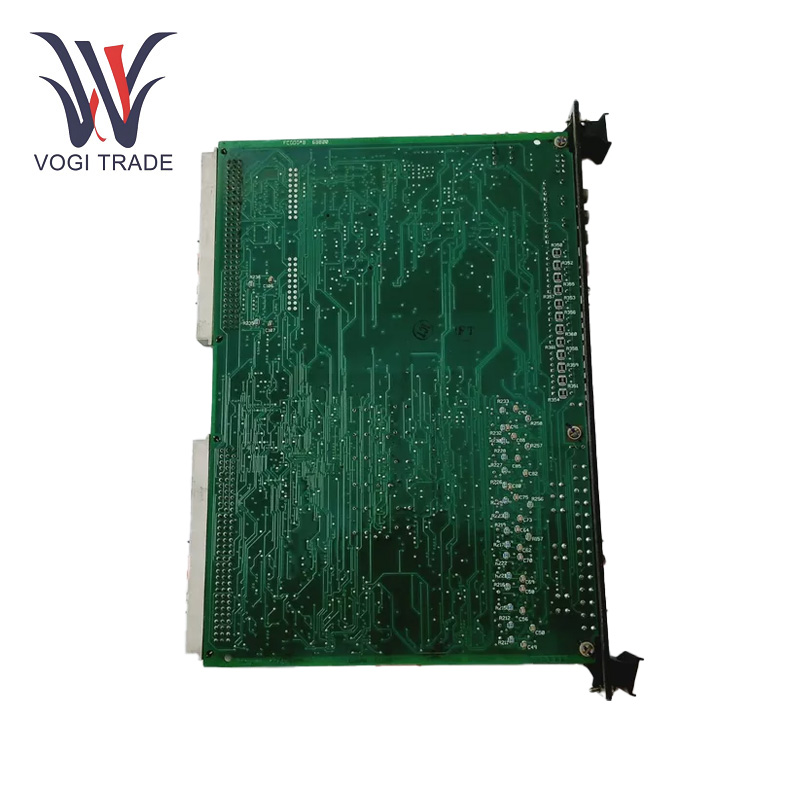

Brand: GE Description: Control Module PC Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: ShenZhen GE DS200FCGDH1BCA is a gate distribution and status card. It acts as an interface between the load-commutated inverter control system and the power conversion bridge, handling SCR firing decoding, gate signal distribution, bridge feedback processing and status communications.
|
Manufacture |
GE |
|
Model Number |
DS200FCGDH1BCA |
|
Ordering Number |
DS200FCGDH1BCA |
|
Catalog |
Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*30cm*8cm |
|
Packing Dimension |
42cm*32cm*10cm |
|
Weight |
1.2kg |
Operating Parameters
Input Voltage: 24V DC
Maximum Input Current: 0.5A
Operating Temperature Range: -40°C to 70°C
Storage Temperature Range: -40°C to 85°C
Humidity Tolerance: GE DS200FCGDH1BCA can operate in environments with up to 95% relative humidity, non-condensing.
Communication Protocols: Supports industry-standard protocols such as Ethernet, RS-232, or RS-485 for seamless integration into control systems.
Product Features
Signal Processing: The GE DS200FCGDH1BCA interprets analog and digital signals coming from sensors and other input devices, processing this information accurately.
Control Logic Execution: GE DS200FCGDH1BCA executes control logic for turbine operations, including speed, temperature, and pressure regulation.
Fault Detection: The GE DS200FCGDH1BCA can report the faults in the system which helps in getting timely maintenance.
Data Communication: Handles communication between the turbine control system and any external devices or networks.
Redundant Support: Designed for redundancy configurations to ensure higher system availability.
Installation
Remarks Before Installation:Confirm that the electric power supply is cut off. Check if compatible with existing control system (Mark V or Mark VI). Check for physical damage or defects on the board.
Mounting on:Insert board properly in its specific slot in control cabinet. Use of the right screws and brackets to ensure stability,It is important to ground the unit properly to minimize electrical noise.
Power-Up: installed, power the system on and make sure the board is recognized by the control system. Run a diagnostic test to ensure that it works properly.
Application range
Power Generation: GE DS200FCGDH1BCA makes sure of the reliable and efficient operation of turbines in the power plants.
Oil and Gas: Implemented in turbine control systems at compressor stations and refineries.
Industrial Manufacturing: Facilitates the functioning of turbines in broad manufacturing locations.
Renewable Energy: GE DS200FCGDH1BCA Integrates with hybrid energy systems for optimal performance.
Troubleshooting
No power:Verify power supply connections and ensure power is supplied at the correct voltage. Check the board where the fuse is for any signs of burn.
Communication Failure: Check the communication cables and connectors. Make sure to set it up with the appropriate communication protocol.
Overheating: Make sure the control cabinet has proper ventilation/cooling. Look for built-up dust and debris that may block airflow.
Signal Errors:Inspect input and output connections for loose or damaged wires.Calibrate sensors and input devices to ensure accurate signal transmission.
