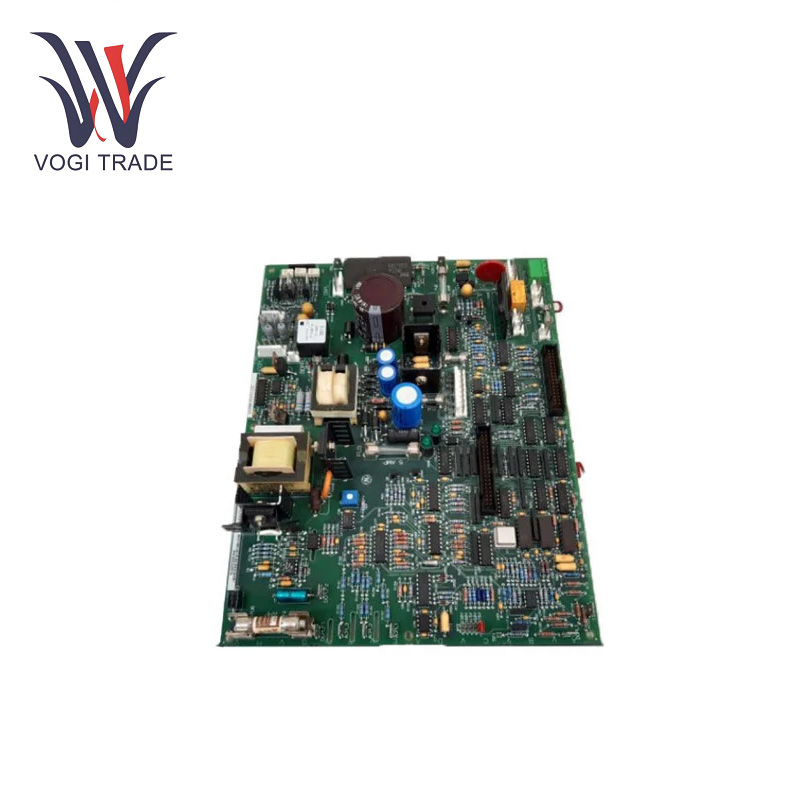

GE DS200IMCPG1CCA

Operating Parameters

Operating Voltage: 110V - 240V AC

Current Draw: Varies with operating conditions

Operating Temperature Range: -20°C to +60°C

Storage Temperature Range: -40°C to +85°C

Communication Protocols: Ethernet, RS - 232, RS – 485

Product Features

High Precision Control: Using advanced microprocessor-based control technology, the GE DS200IMCPG1CCA provides high precision control. It can monitor parameters like speed, torque, and position, allowing for maximum efficiency and extremely low error rates in industrial automation processes.

Robust Construction: GE DS200IMCPG1CCA Comes in a dustproof, waterproof and shockproof enclosure made with heavy duty materials. Its durability allows it to function in rigorous, industrial conditions, where machinery is subject to vibrations, corrosive materials, and frequent handling.

Multiple Communication Interfaces: Ethernet, RS-232, and RS-485 are also supported. These interfaces also allow for integration with other industrial devices, including programmable logic controllers (PLCs), human-machine interfaces ,, and Supervisory Control and Data Acquisition systems, ensuring efficient data communication and overall control of the system.

Installation

Mechanical installation: GE DS200IMCPG1CCA is designed with standardized mounting brackets or holes for easy attachment to DIN rails or control panels. All parts of the construction must be aligned and fastened carefully using the appropriate screws and washers so that, when deployed, it doesn't vibrate or shift easily.

Install Properly: The user manual should indicate the recommended installation orientation. Many of the components within the device may work best in either a vertical or horizontal position to allow for adequate heat dissipation and fluid dynamics.

Wiring: Make sure to wire it all per the provided wiring diagrams. Connect thepower supply wires to the appropriate terminals, making sure the polarity iscorrect. Use shielded cables of signal and communication wires, if possible, to reduce EMF and separate from high-power lines.

Ground: Ensure a solid ground connection to the equipment chassis. This is important for safety and to avoid electrical noise impacting performance. When using a dedicated ground wire, it should be bonded to an appropriate grounding point within the facility.

Application Scope

Power Generation: Used in power plants to control turbine generators and as a control system to regulate voltage and frequency output from the plant thus ensuring stable power supply to the grid. GE DS200IMCPG1CCA is capable of responding rapidly to load perturbations whilst providing the necessary power quality indexes.

Industrial Automation: Used extensively in production processes like conveyor belt systems, robotic arms, and CNC machines. This provides the ability to control motion with great precision, to synchronize multiple axes, and to automate complex production processes, which leads to improved productivity and product quality.

Oil and Gas Industry: In refineries and drilling platforms, GE DS200IMCPG1CCA controls pumps, compressors and valves. It meets the stringent operating requirements like high pressure, corrosive fluids, and explosive environment, resulting in safe and efficient operation of critical equipment.

Troubleshooting

Power related issues:If the device does not turn on, check the power supply connections and input terminals for voltage. Check that the power switch is in the proper position and that there are no blown fuses or tripped circuit breakers. If the voltages are within tolerance but the device still fails to turn on, it usually means the internal power supply needs to be diagnosed and inspected by a qualified technician.

Communication Errors:If you are having problems communicating with other devices, check the communication settings  on the GE DS200IMCPG1CCA and the connected device. Look for any loosely connected cables or damaged cables. If able, utilize a communication tester to help identify the issue between hardware and software layers.

Performance Anomalies: If the device exhibits any lack of precision in controls or anomalous behavior, check for interference effectors, such as strong magnetic or electrical fields close to the device. Ensure proper feedback by inspecting the sensor connections associated with the controlled parameters. Reviewing the control algorithm settings and parameters to ensure they are appropriate given the current operating conditions is also advised.
