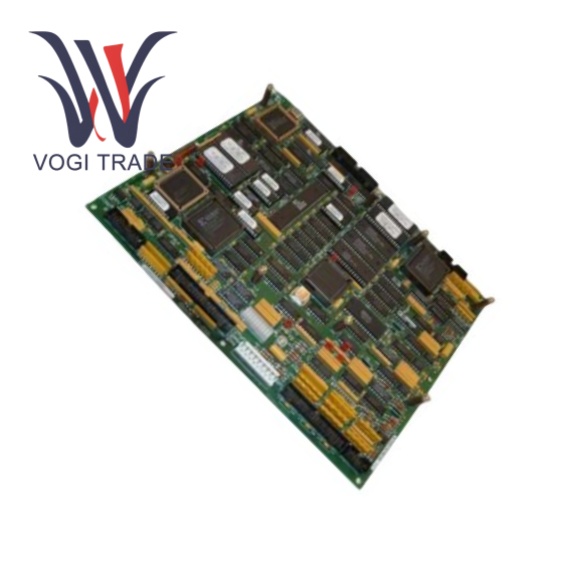

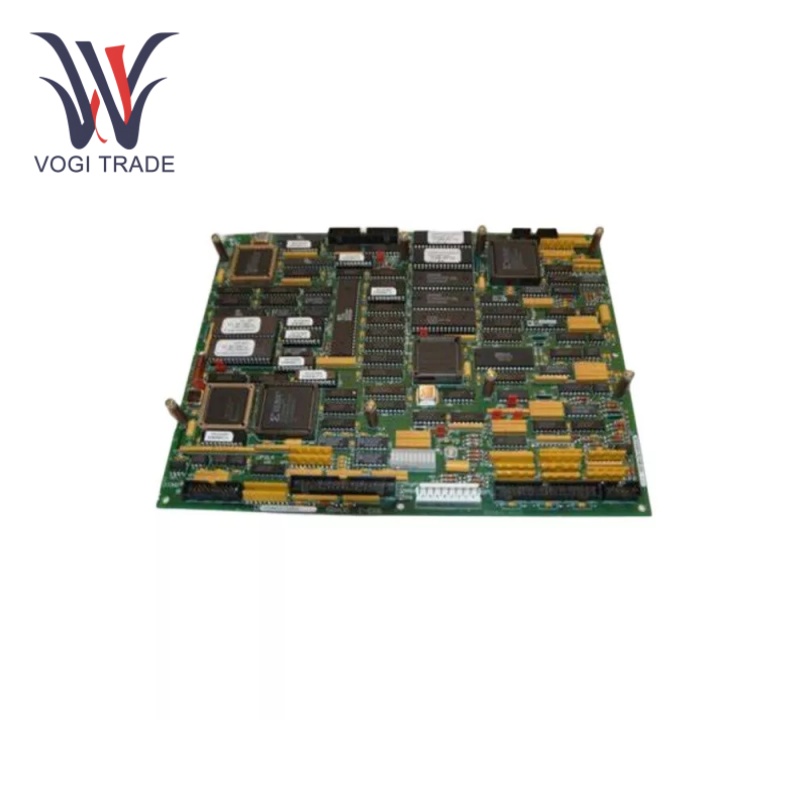

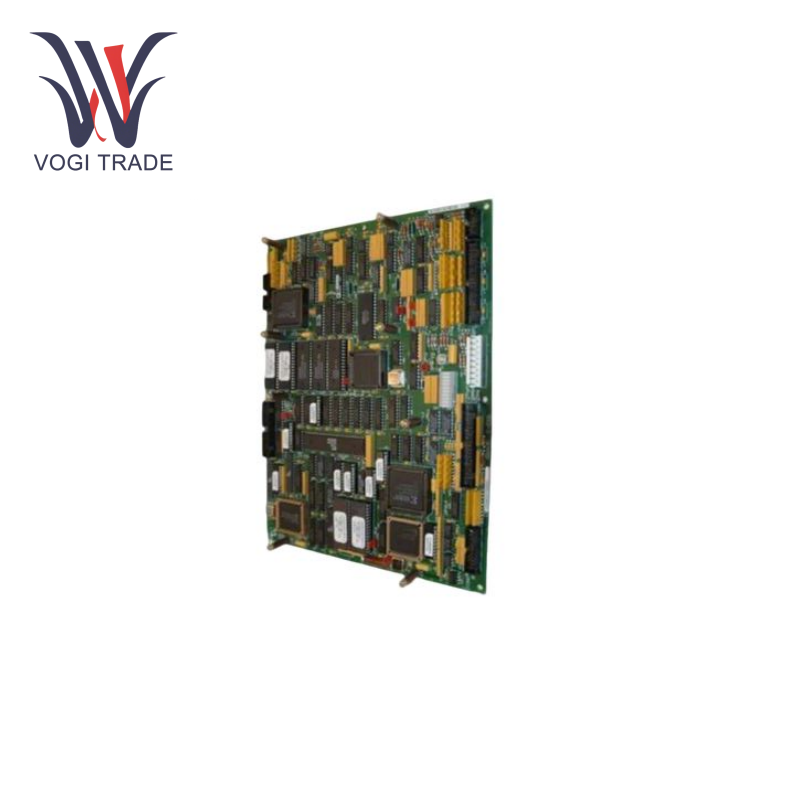

GE DS200IPCSG1ABB

Operating Parameters

Operating Temperature Range: -20°C to +60°.

Power Supply Voltage: 24V DC input.

Processor Clock Speed: 500 MHz.

Memory Capacity: 128 MB of RAM and 256 MB of flash memory.

Communication Protocols: Modbus, Ethernet/IP, and Profibus.

Input/Output Channels: 16 digital inputs, 16 digital outputs, 8 analog inputs, and 8 analog outputs.

MTBF (Mean Time Between Failures): Ove 100,000 hrs.

Product Features

Robust communication interface: GE DS200IPCSG1ABB has several communication ports. Hence, it can easily interact with parallel devices in the network because of data exchange. As a result, the data exchange supports monitoring and taking real-time actions with the interaction of the discussed device and input sensors.

Advanced computing capability: The processor can perform complex calculations automatically. Therefore, the descriptions of the actual process can be executed with the necessary speed and make the necessary changes with other parameters changes to preserve stability.

Data storage: GE DS200IPCSG1ABB has a large storage capacity. Data log, therefore, facilitates the storage of historical performance to raise a report on the system’s performance, which can then be analyzed further.

Diagnostic functions: In case of faults, the it will be able to perform a complete diagnostic self-check. This check raises fault error codes on the screen when a fault is detected.

Installation

DIN Rail-Mount: GE DS200IPCSG1ABB is designed to be mounted on standard DIN rail inside a control cabinet. It features mounting clips that rapidly snap on the rail to create a solid, vibration-free installation. Keep the area around the device clear for heat dissipation.

Troubleshooting

Communication Failure: In the case of a communication failure with other devices, it is necessary to check the communication settings. Specifically, it is recommended to ascertain whether the correct protocol is chosen and the IP addresses or device IDs are properly configured. Additionally, the network cables should be inspected for potential damage. A network analyzer tool may be employed to conduct enhanced diagnosis.

Erratic Input/Output Behavior: GE DS200IPCSG1ABB is crucial first to examine the attached sensors and actuators. If possible, test them separately to ensure that they are not at fault. One should also verify the input/output channel configuration in the device settings because an incorrect configuration is likely to cause random behavior. The wiring should be inspected for potential shorts or open circuits.

Application range

Power Generation: GE DS200IPCSG1ABB is utilized in power plants where it controls systems involved in turbines. It monitors and control systems such as rotor speed, temperature, and vibration. By regulating these parameters, it is able to safely and efficiently control turbines, ensuring power generation remains stable.

Oil and Gas: It is engineered to be used in refineries and drilling processes control where it is used to monitor and control fluid flow, pressure, as well as chemicals dosing. Its ability to perform in unforgiving environments is instrumental in protecting production processes allowing manufacturers to meet set quality standards.

Manufacturing: In manufacturing, it is used in industrial plants ranging from automotive assembly plants to food processing facilities. It is used to assess machinery and can be used to control robotic arms to ensure syncing, conveyor belt speed regulation, and monitor temperature and calmness in atmospheric chambers.
