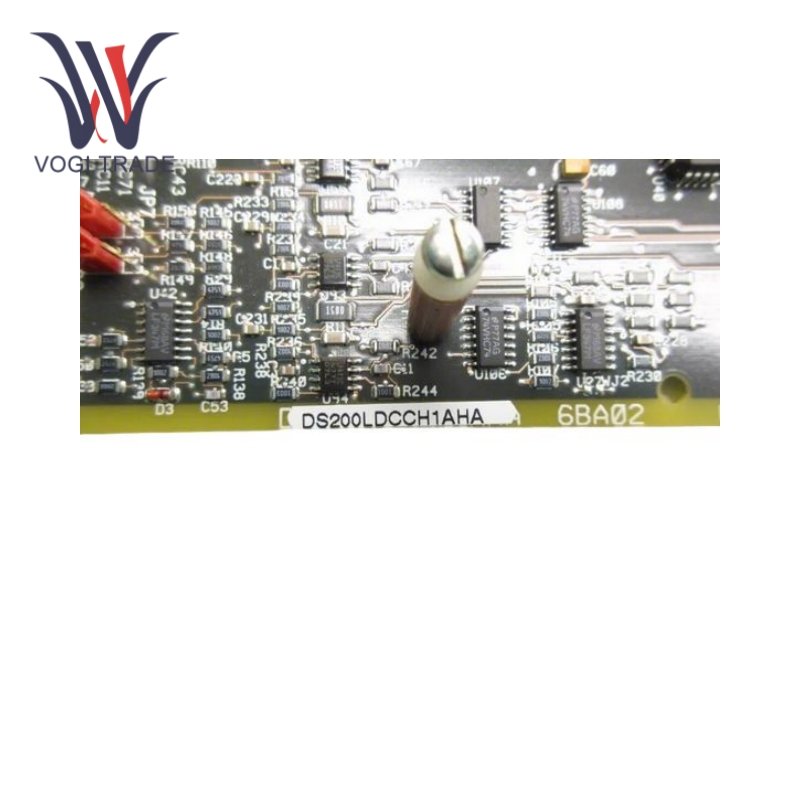

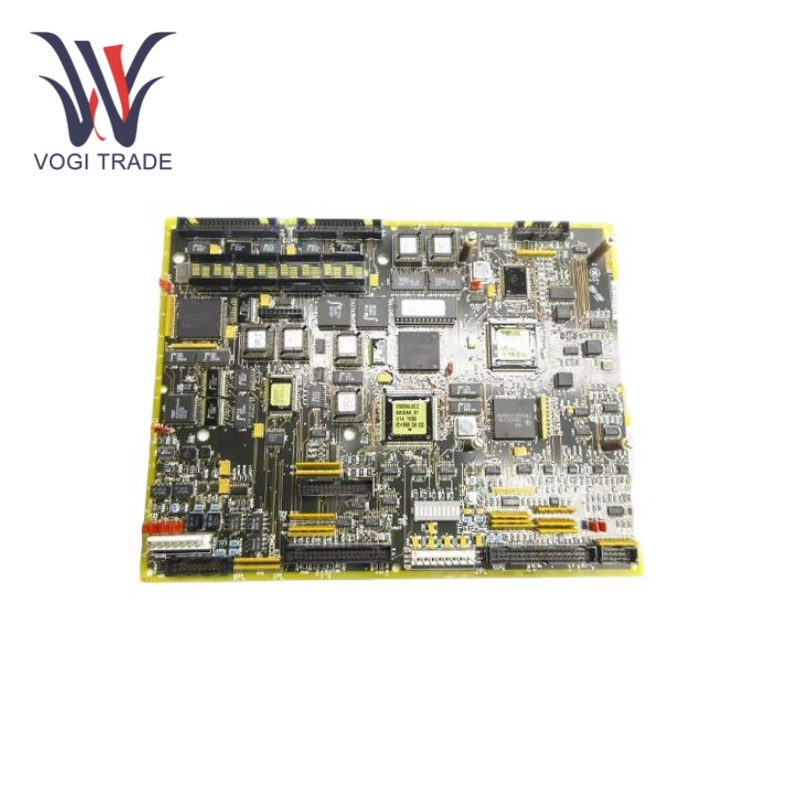

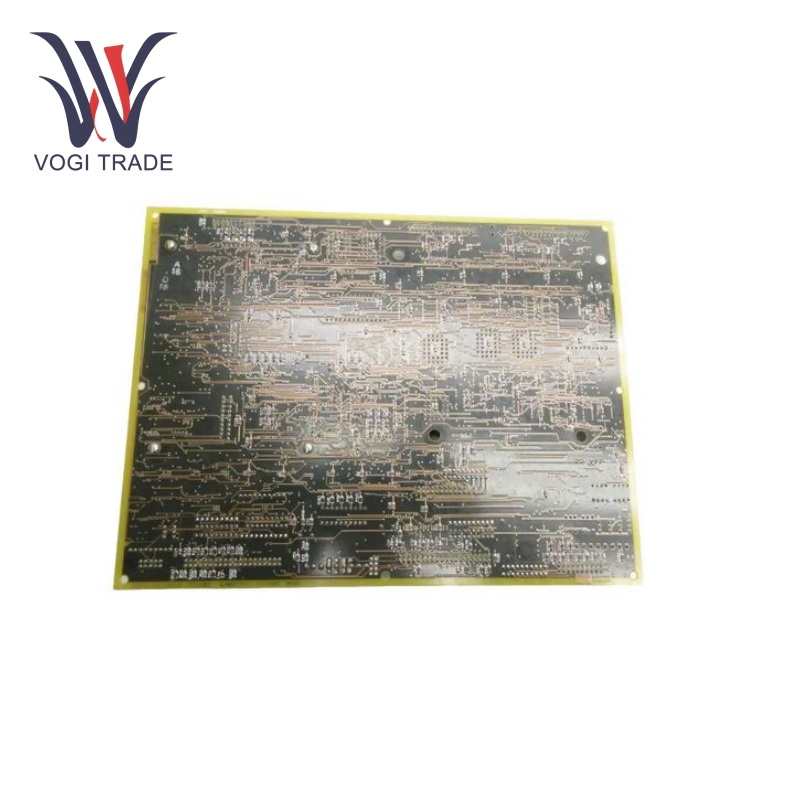

GE DS200LDCCH1AHA

Operation Parameters

Input Voltage: Typically 120/240 V AC.

Operating Temperature Range: 0°C to 65°C.

Dimensions: Approximately 6.5 inches x 6.5 inches x 2 inches.

Weight: Approximately 0.6 kg.

Functionality: Data transmission and reception, communication protocol conversion.

Communication Interface: Facilitates external device communication.

Product Features

Advanced Control Algorithms: Provides precise control over numerous variables. For manufacturing applications,GE DS200LDCCH1AHA can provide accurate control over motor speed, position, and torque, allowing for high-precision manufacturing, such as CNC machining, robotic assembly, and other fields.

Flexible Communication Interfaces: Ethernet, RS-232, and RS-485 communication protocols. The interfaces facilitate smooth interaction with other industrial systems such as PLCs, HMIs, and SCADA systems. GE DS200LDCCH1AHA allows for fast transfer of data and control in a synchronized manner.

Self-Monitoring and Diagnostic Features: This device has a self-monitoring feature built into it. GE DS200LDCCH1AHA can sense internal faults, abnormal voltage levels and overheating conditions. It offers precise failure codes and diagnostic messages in the event of an error, enabling the ICD to quickly pinpoint and address errors.

Installation

Mechanical Installation: Equipped with standardized mounting brackets or holes, it can be easily mounted on DIN rails or control panels. Keep in mind alignment and use good clean range of movement and fastening hardware to avoid vibrations in operation.

Orientation: Install according to the manufacturer’s recommendations. Certain internal parts, such as heat sinks or cooling fans, may need to be positioned correctly to operate efficiently and dissipate heat.A messy installation of these components can impede the proper circulation of air, which can then lead to overheating.

Wiring: Make sure to follow the supplied wiring diagrams closely. Make sure you connect the power supply wires to their respective terminals, ensuring correct polarity. Use shielded cables including those for signal and communication wires and route them away from high power lines.

Earth: Ensure a reliable connection to ground on the device chassis. This is not only for safety, but also for it to operate stably because it can suppress electrical noise and prevent electrostatic discharge.

Application range

Industrial automation: In manufacturing, GE DS200LDCCH1AHA used broadly to manage production lines. It is able to control the functioning of conveyor belts, robotic arms, and other automated machinery, thereby improving productivity and product quality.

Power Generation: In power plants, GE DS200LDCCH1AHA can be involved in controlling turbine generators, voltage regulators, and power distribution systems. It used to ensure steady power generation in the grid.

Oil and Gas:Industry In refineries and drilling platforms, it controls pumps, compressors, and valves It is capable of withstanding harsh operating conditions, such as high pressures, corrosive substances, and explosive environments, ensuring the safe and efficient operation of critical devices.

Troubleshooting

Power-On Issues: If the device does not power on, start by inspecting the power supply connections and checking the voltage at the input terminals. Vessel a note of power switch position and inspect blown fuses or tripped circuit breakers. In that case, it would indicate an internal failure of power supply, and the device should be examined by a technician.

Errors in Communication: If there is a problem in communicating with other devices, the first thing to check is the communication protocol settings on both the GE DS200LDCCH1AHA and the connected equipment. Check the cable connections for loose or damaged wires. However, if that’s possible use a communication tester to isolate between the hardware and software side of the problem.

Performance Anomalies: If control precision is not as expected, or if the device seems to be acting erratically, you should begin by looking for sources of interference externally. Keep an eye out for nearby strong magnetic fields, radio frequency interference, or electrical noise generators. Check relevant sensor connections ( e.g., pressure, flow) to confirmed feedback of controlling zeroes. And revise and tune up the settings and parameters of the control algorithms to ensure they are adapted to the current operating conditions.
