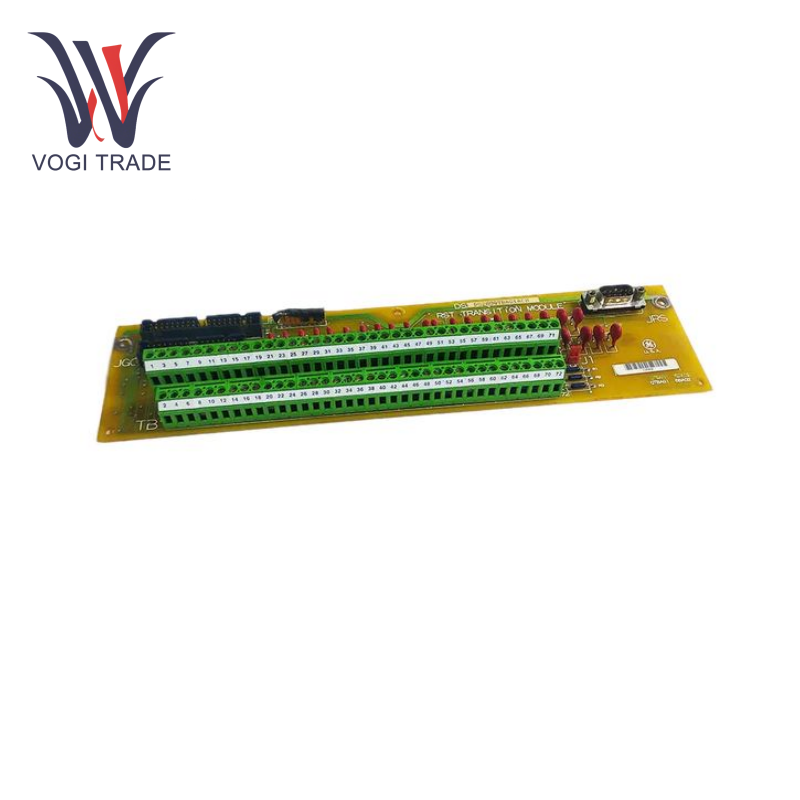

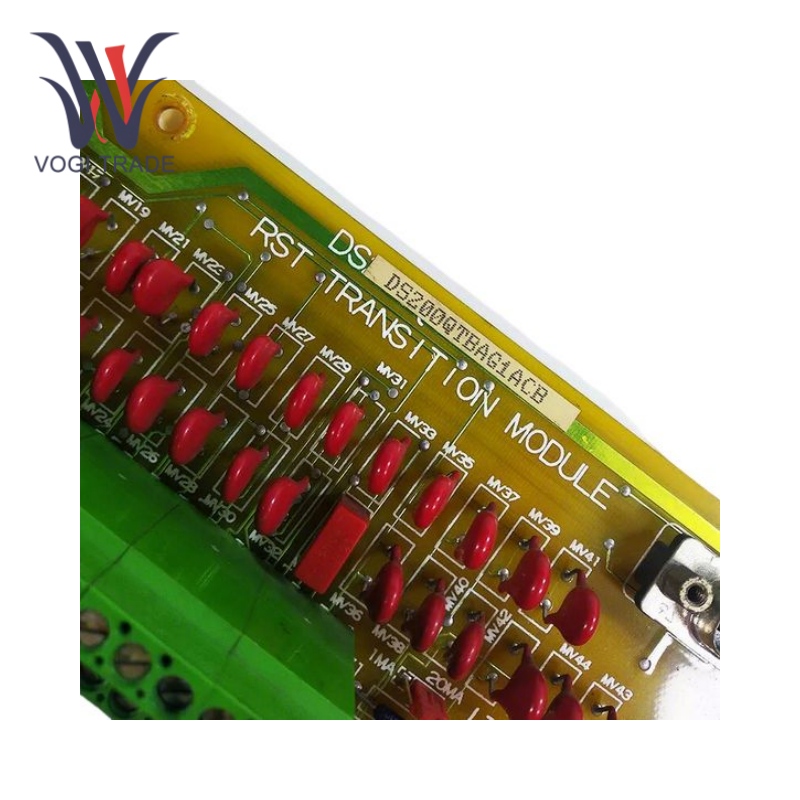

GE DS200QTBAG1ACB

Operating Parameters

Operating Voltage: 125 VDC, with a tolerance of ±10% .

Input Current: Typically around 50 mA under normal conditions, peaking up to 100 mA during peak loads or complex tasks.

Operating Temperature Range: From -20°C to +60°C, and storage temperature from -40°C to +85°C.

Frequency Response: From DC to 50 kHz.

Module Type: Ethernet Interface Module

Communication Protocols: Supports SRTP  over standard TCP/IP

Data Transfer Rate: 10 Mbps

Product Features

Digital Input/Output (I/O) Functionality: The GE DS200QTBAG1ACB has 16 digital input and 16 digital output ports. In this tutorial, we will use some of these ports to connect external devices such as switches, relays, and sensors. Digital inputs are used to read the state of external devices , and digital outputs are used to control other devices  This is a useful way to control and monitor industrial processes.

Analog Input/Output: In addition to digital I/O, the GE DS200QTBAG1ACB supports 4 analog input channels and 2 analog output channels. Analog inputs allow signals from sensors  to be converted to digital work. For example, analog outputs can be used to generate control signals to regulate the speed of a motor or adjust the position of a valve based on the processed data.

Control Logic Functionality: The GE DS200QTBAG1ACB provides powerful PLC functionality. Specialized software can be used to write specialized control logic. For example, they can generate ladder diagrams, function block diagrams, or structured text programs to automate industrial processes. This programmability allows users to define complex control sequences and react to various operating conditions.

Communication Interfaces: RS-485 and Ethernet. These can be used to address points for communication with different industrial devices such as other controllers, sensors, actuators, and HMIs. This interoperability is essential for developing integrated industrial automation systems.

Application Range

Industrial Automation: The GE DS200QTBAG1ACB is widely used in manufacturing plants for controlling production lines and machines. It can control robotic arms, conveyor belts, and machine tools. It is the core of the entire automation, connecting with other components and providing I/O and PLC functions to improve production efficiency and product quality.

Power Generation Field: Used to monitor and control electrical equipment in power plants and substations. It also helps in power distribution to provide reliable power to end users, including voltage, current and power parameter measurement, fault detection and protection measures, etc.

Process Control: The GE DS200QTBAG1ACB plays an important role in monitoring and controlling process variables in industries such as chemical, pharmaceutical, and food processing. It mainly controls temperature, pressure, flow, etc. The module must be precise because it ensures stability and safety throughout the production process.

Troubleshooting

Module Not Powering/Random Behavior: If the module is powered properly or random behavior is not occurring, first check the power supply voltage using a multimeter. It should be between 125 VDC ± 10%. Check the power connector for looseness or corrosion. If the voltage is incorrect, check the power supply and linkage.

If you have I/O signal issues, also check to make sure the digital and analog I/O ports are connected. Make sure the cables are properly plugged in and not damaged.
