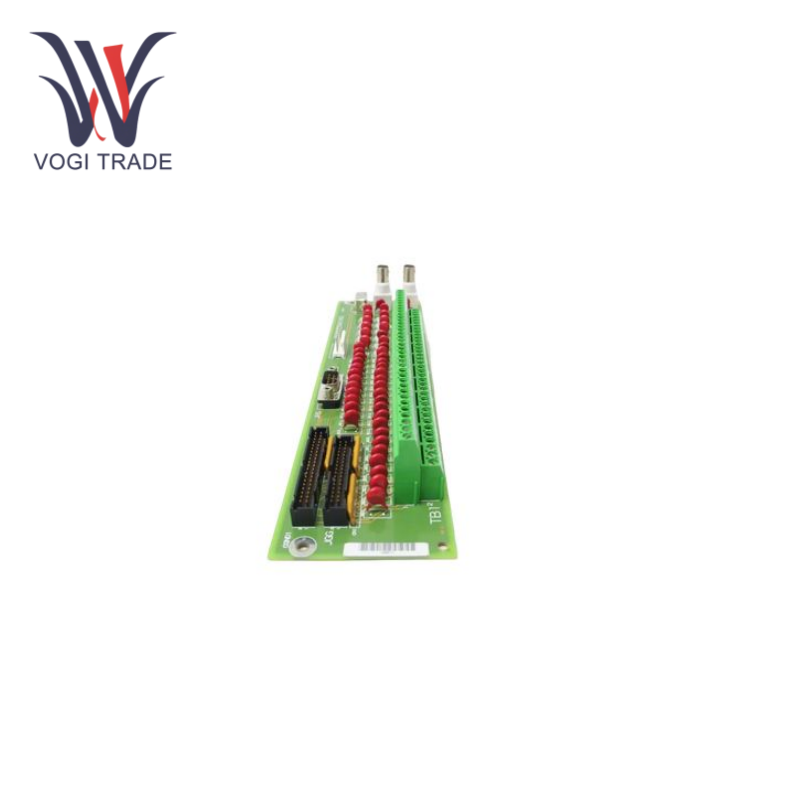

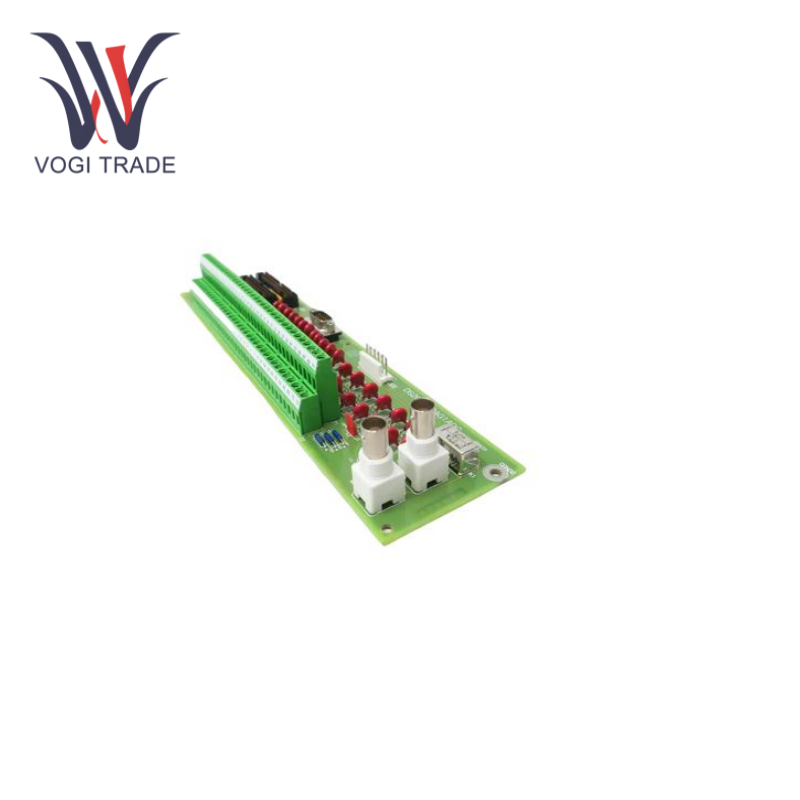

Brand: GE Description: RST Termination Board Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE DS200QTBAG1ADC is used in turbine control systems to manage and monitor critical signals. Its rugged design and comprehensive monitoring capabilities make it key to ensuring reliable operation of turbine control processes.
|
Manufacture |
GE |
|
Model Number |
DS200QTBAG1ADC |
|
Ordering Number |
DS200QTBAG1ADC |
|
Catalog |
Speedtronic Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
28.6cmx7cmx3.5cm |
|
Packing Dimension |
30cmx10cmx5cm |
|
Weight |
0.34kg |
Input: 6 magnetic pulse rate inputs.
Output: 8 servo value outputs.
Excitation Source: 6 LVDT excitation sources.
Port: Equipped with 2 terminal blocks with 72 signal lines.
Product Features
Signal Inputs: GE DS200QTBAG1ADC has 6 magnetic pulse rate inputs to measure various turbine control system signals.
Signal Outputs: GE DS200QTBAG1ADC provides 8 servo valve outputs to facilitate servo valve control in the control system.
Excitation Sources: The board identifies 6 LVDT excitation sources to provide accurate position feedback.
Connectivity: It has two terminal blocks, each capable of accommodating 72 signal lines, and a 40-pin JFF connector for a straight-forward connection to other system blocks.
Serial interface: GE DS200QTBAG1ADC includes a serial connector for even more communication options for system configurations.
Configuration and Diagnostics: Enables configuration and diagnostics over the serial connector.
Application range
Power Generation: GE DS200QTBAG1ADC An integral part of PGT compatible turbine control systems used for generating electricity in a safe and efficient manner.
Oil and Gas: Control of and monitoring equipment in production and processing to ensure normal operation.
Chemical Processing: GE DS200QTBAG1ADC Used to monitor and control the chemical reaction processes to maximize reaction efficiency and product quality. Also usable for filling and packing
Manufacturing: Controls production equipment such as machine tools, conveyors and robotic arms to enhance efficiency and product quality.
Troubleshooting
Connection Problems: Verify terminal blocks, connectors and wire connections Ensure they are securely seated and in good shape. Replace if necessary.
Configuration Errors: Make sure jumper settings, communication protocol settings and signal mapping are correct by checking configuration parameters.
