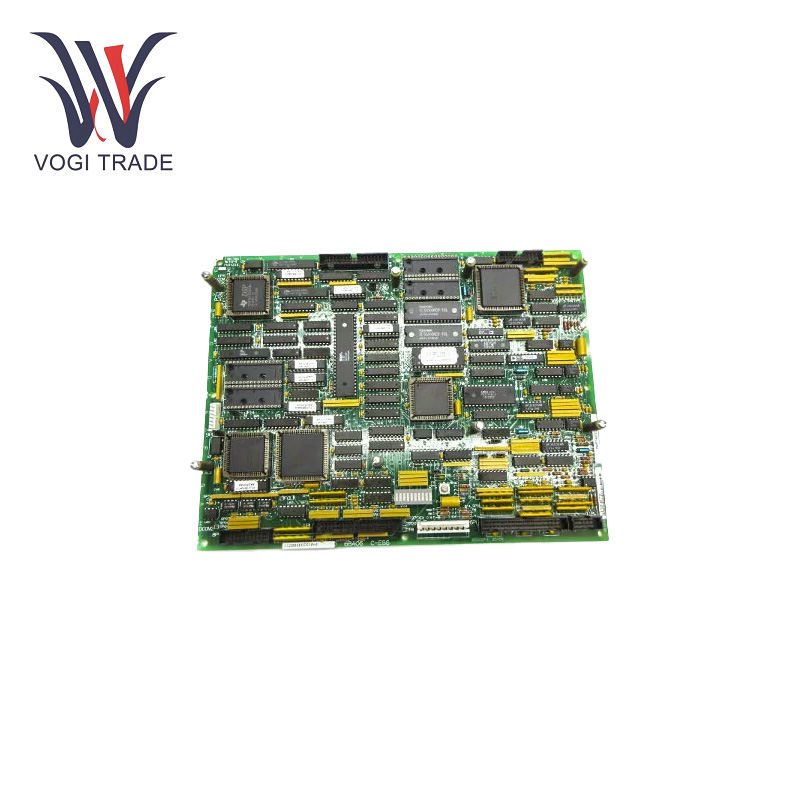

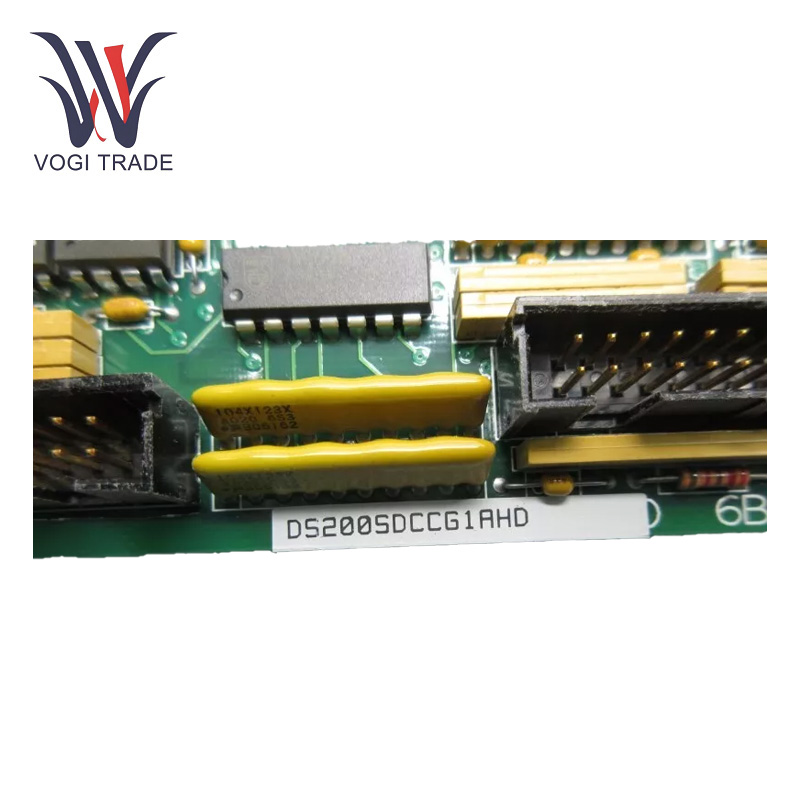

Brand: GE Description: Drive Control Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE DS200SDCCG1AHD is a drive control card. It is the main controller for drive operation. Key features include configuration flexibility, diagnostic capabilities, and adaptability to various operational requirements.
|
Manufacture |
GE |
|
Model Number |
DS200SDCCG1AHD |
|
Ordering Number |
DS200SDCCG1AHD |
|
Catalog |
- |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
35cm*35cm*3cm |
|
Packing Dimension |
37cm*37cm*3cm |
|
Weight |
1.5kg |
Operating Parameters
Input Voltage: Dual AC (120V or 240V) or DC (125V)
Power Consumption: Designed for efficient operation in industrial settings
Microprocessors: Multiple microprocessors for drive control and data processing
Memory: Shared RAM accessible by multiple processors for seamless data handling
Operating Temperature: Rated for use in a wide range of industrial environments
Communication: Supports serial communication for configuration and data transfer
Product Features
Drive Control Core: The GE DS200SDCCG1AHD drive control core is the core of the whole drive, which is composed of 3 built-in microprocessors and random access memory (RAM) memory. Multiple microprocessors can access RAM at the same time. Each microprocessor takes control of the drive control and motor control work respectively and work together on the task.
Expansion of signal processing capability: GE DS200SDCCG1AHD can install LAN communication card, such as DS215SLCC or 531X306LCC, 531X309SPC signal processor card, DS200SPCB multi-bridge signal processor card, to enhance signal processing capability and realize the network communication function.
Flexible and editable configuration: GE DS200SDCCG1AHD through a serial interface to connect your laptop, download the configuration software, edit and upload the configuration file, so that the device be flexible configuration.
Installation
Preparation: Clean off the card again before installation and ensure the jumper settings on the new board are identical to the timely board's avoid installation error.
Note: Install the replacement board in a protective bag to avoid damage and operate with holding the edge of the board on the flat surface. The suspect cables on the failed board can be plugged into the new board, marked for reconnection, with no soldering required.
Application Scope
Energy field: GE DS200SDCCG1AHD is crucial in the control system of automatic drive elements of wind, steam and gas turbines. Ensures the control and management of drive capabilities in the process of energy production.
Some Manufacturers: GE DS200SDCCG1AHD is applicable to all kinds of industrial automation production lines with high requirement of precise control and monitoring, such as automation equipment of manufacturing industry, robot control system.
Troubleshooting
Hardware failure: If the board does not work properly, first check whether the power supply is normal, and confirm whether each voltage input is within the specified range. Look for obvious damage or overheating of the components on the board, for example, whether the capacitor is bulging or the chip is burned.
Software configuration problem: If the device is abnormal, it may be that the configuration file is incorrect or incompatible. Ensure all the parameters in the configuration file is matching the real application scenario and device connection, please double check, and re-download and upload the configuration file again.
Communication failure: If the communication with the device has a problem, please check whether the communication interface has been properly connected to the device and whether the communication protocol you are using has been configured correctly. You can use professional communication test tools to detect the communication link to see if there is signal interference, transmission errors.
