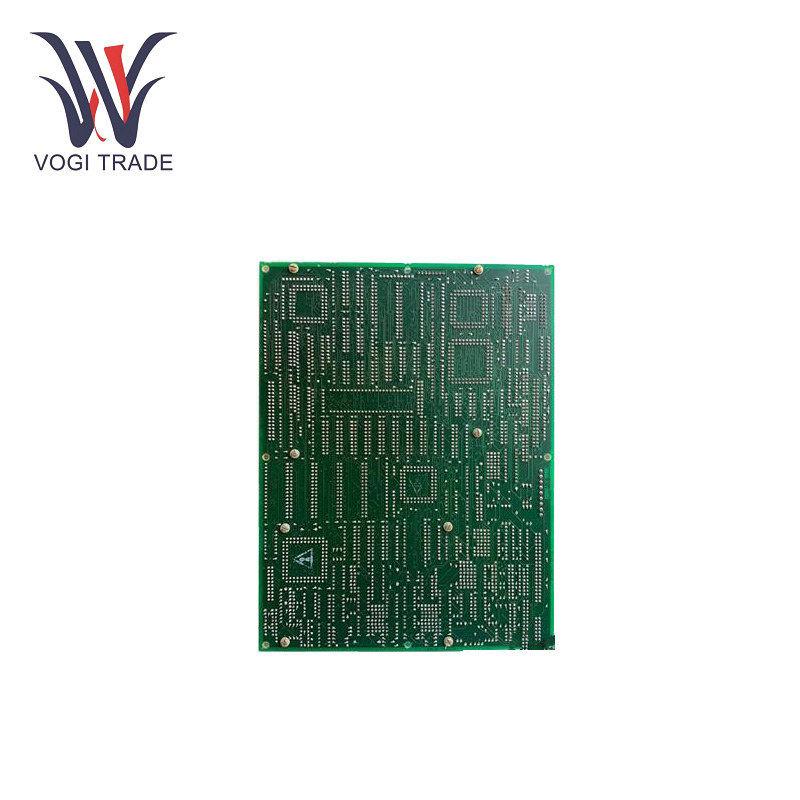

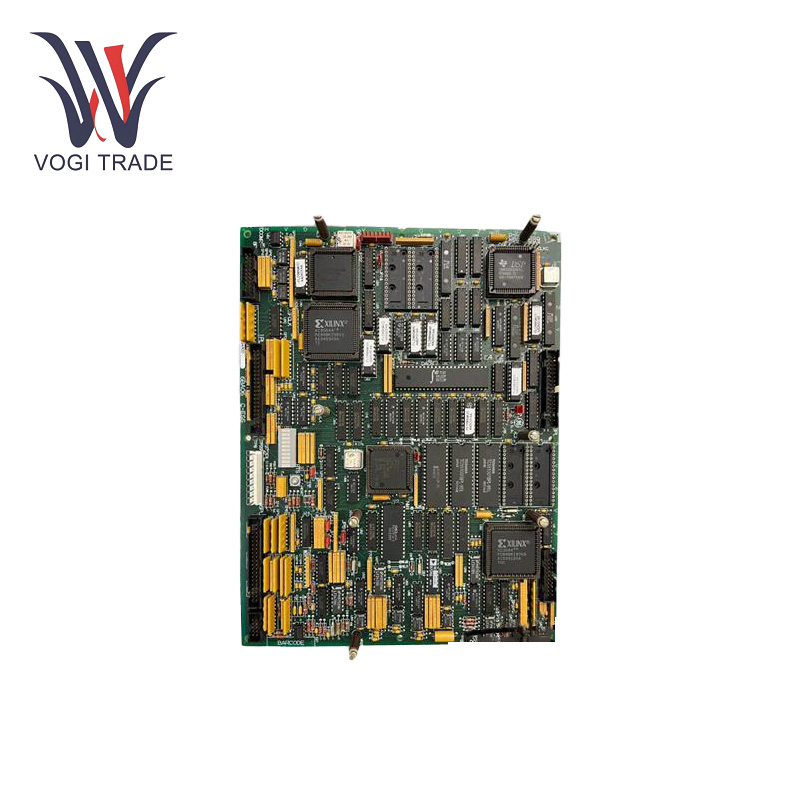

GE DS200SDCCG4AGD

Technical parameters

Input type: 24 dry contact inputs

Processor: 3 onboard microcontrollers.

Isolation characteristics: Through the group isolation function, GE DS200SDCCG4AGD can isolate signals and prevent interference and fault propagation.

Memory: Powerful RAM construction, which can be accessed by multiple microprocessors at the same time

Power test point: +15V power supply

LED indicator: There are 10 LED indicators on the board

Field environment: Mark V series turbine control system

Features

Precise signal processing: GE DS200SDCCG4AGD supports precise processing of mixed signal types, including digital and analog, it can instantly and accurately detect the unique logic state of digital signals, allowing uninterrupted data transmission for monitoring and control. If it is an analog signal, it can be finely sampled and converted in real time to reduce the probability of error and maintain high data accuracy.

Excellent reliability: Made of high-end materials and advanced manufacturing technology, the GE DS200SDCCG4AGD can work reliably even under harsh industrial conditions. Its internal circuits are highly resistant to electrical noise, voltage fluctuations and temperature changes. In addition, over current protection, overvoltage protection, short-circuit protection, etc. are designed internally, which greatly reduces the risk of failure and ensures long-term stable and continuous operation.

Easy to configure: The GE DS200SDCCG4AGD has a user-friendly interface or software that allows operators to configure multiple parameters according to their specific industrial process needs, set signal sampling frequency and adjust input/output mode and communication protocol settings. Its versatility makes it suitable for different applications, from simple control tasks in small workshops to complex multivariable control environments in large industrial installations.

Versatile communication protocols: The GE DS200SDCCG4AGD is equipped with a variety of communication ports and supports a range of industry standard protocols, including Modbus, Profibus and Ethernet/IP. It can be smoothly integrated into the existing industrial network infrastructure to achieve real-time data sharing and remote monitoring.

Powerful diagnostic capabilities: It has built-in diagnostic functions that can continuously diagnose the operating status of the device itself and its connected modules, and promptly diagnose and point out problems such as abnormal signal patterns, component failures, or communication errors. When corrective actions are taken for abnormalities, it can provide detailed diagnostic information to help technicians effectively identify and solve problems, thereby reducing downtime and reducing repair costs.

Application Scope

Industrial Automation: In factories, the GE DS200SDCCG4AGD can command the work of robotic arms, specifically adjust the speed and direction of conveyor belts, and check the working status of different machines. It helps to improve production efficiency and product quality through precise coordination and control between different functions.

Power Generation: The GE DS200SDCCG4AGD is used in power plants to monitor and control the operation of generators, transformers, and other electrical equipment. By collecting the latest information on parameters such as voltage, current, temperature, and vibration, this can promote the optimization of the power generation process, detect possible faults as early as possible, and ensure stable and efficient power supply to the grid.

Process Industries: In the chemical, pharmaceutical and food processing industries, the GE DS200SDCCG4AGD can precisely control the flow of raw materials, maintain precise temperature and pressure conditions in reactions, and manage pumps and valves to help ensure consistent product quality, meet strict regulatory requirements and improve production safety.

Control Systems in Automated Warehousing and Logistics: In automated warehousing and logistics, the GE DS200SDCCG4AGD can be used to control automated storage and retrieval systems, manage the movement of forklifts and automated guided vehicles, and track inventory levels.
