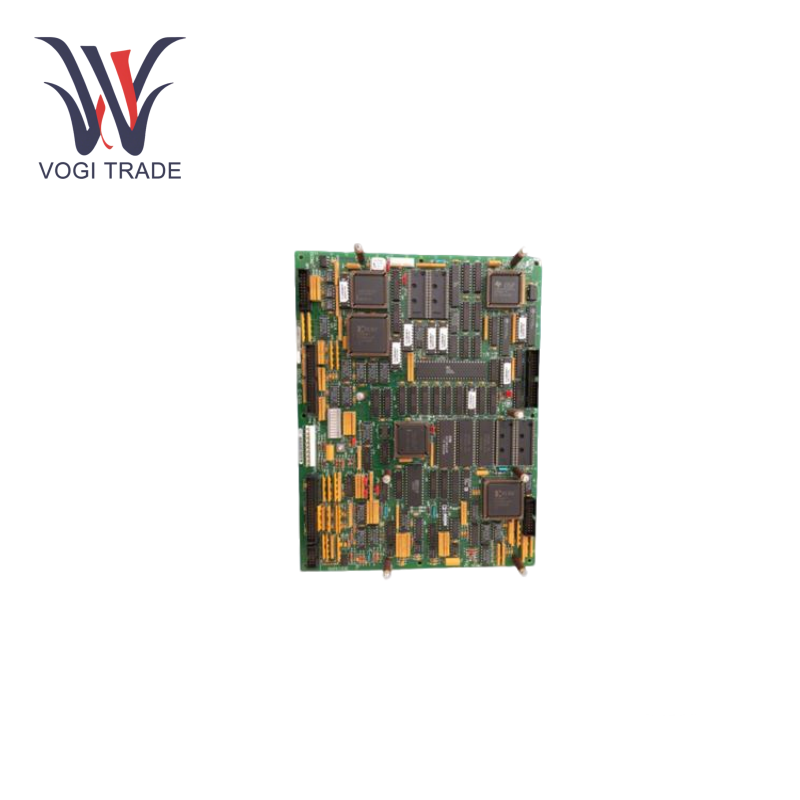

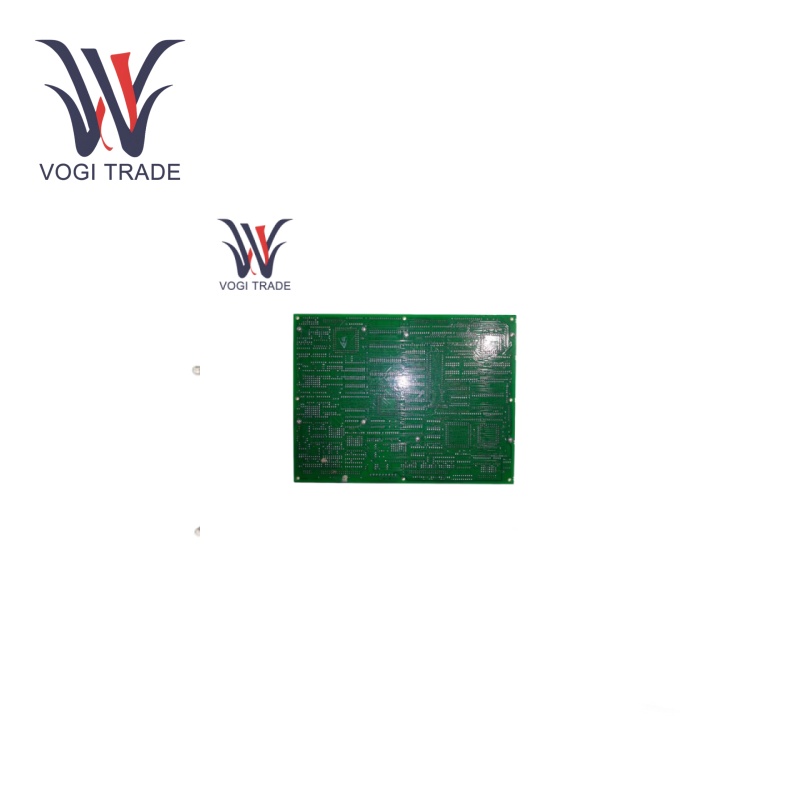

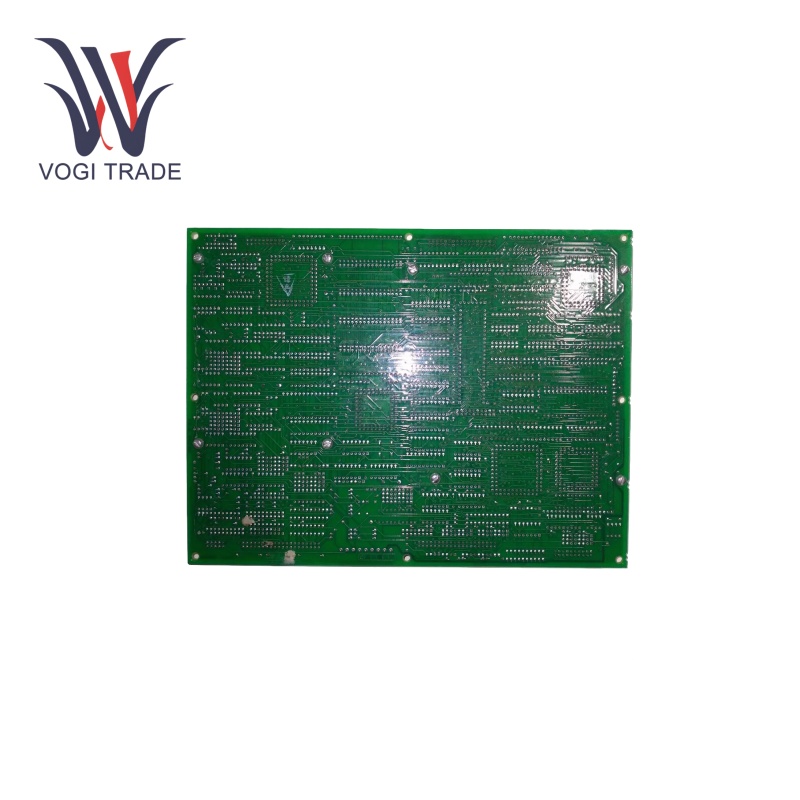

Brand: GE Description: Drive Control Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen GE DS200SDCCG5AHD is a drive control card that is primarily used in industrial automation and turbine control applications. It acts as a central processing unit that manages drive and exciter operations by processing input signals and performing control functions.
|
Manufacture |
GE |
|
Model Number |
DS200SDCCG5AHD |
|
Ordering Number |
DS200SDCCG5AHD |
|
Catalog |
Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
28cm*23cm*10cm |
|
Packing Dimension |
30cm*25cm*12cm |
|
Weight |
0.8kg |
Operating Parameters
Input Voltage: 24 VDC.
Operating Temperature Range: -20°C to +60°C.
Humidity Tolerance: 5% to 95%.
Operating Temperature: -40°C to +85°C.
Communication Protocol: Supports high-speed communication protocols for seamless integration with other control system components.
Signal Processing: Capable of handling analog and digital signals with high precision, ensuring accurate control and monitoring.
Redundancy: Features redundant communication paths to enhance system reliability and minimize downtime.
Product Functions
Signal Conditioning: GE DS200SDCCG5AHD can Processes and modifies input signals from sensors and other devices to ensure accurate interpretation.
Control Logic Execution: GE DS200SDCCG5AHD can executes complex control algorithms to manage turbine operations.
Data Communication: GE DS200SDCCG5AHD it enables the exchange of data in real-time between the turbine control system and other modules or external systems.
Fault Detection: Monitors systems for performance and anomalies triggering warnings and shutdowns to avoid damage.
Diagnostics: Diagnostic information for use in maintenance and troubleshooting.
Installation
Pre-Installation Checks:Pre-Installation ChecksEnsure that the power supply voltage meets the module specifications. Install in a dust-free, moisture-free, and electromagnetic interference-free environment.
Validate compatibility with the existing control system.Mount the module to the slot in control cabinet securely. Ensure stability using the appropriate screws and brackets.
Power-Up : Power on the module and check if it initializes properly. Status LEDs on the module can help indicate errors.
Configuration:Create a configuration for the module using GE's provided software tools. Exercise the functionality of the module while simulating control signals and checking responses.
Application Scope
Power Generation: GE DS200SDCCG5AHD to improve the efficiency and reliability of electricity generation in power plants.
Industrial Automation: GE DS200SDCCG5AHD it suitable for applications requiring high-speed signal processing and control logic execution.
Oil and Gas: Used both upstream and downstream for process monitoring and control.
Troubleshooting
Power Supply Problem: In case module is not turning ON, first check the power supply voltage at input terminals with the help of Multimter. Be particularly certain that the voltage is in spec. If the voltage is corrected and still the module is not working, then try to find any blown fuses or damaged power connectors.
Communication Problems: If you are facing communication errors, check the communication settings. Module configuration Not match to connected device. Check to see if the communication cables are broken or loose. If it’s possible, try a different cable or different USB ports to isolate the problem.
Control Malfunctions: If the module fails to respond to control commands, review the control logic program. The code could be buggy.
