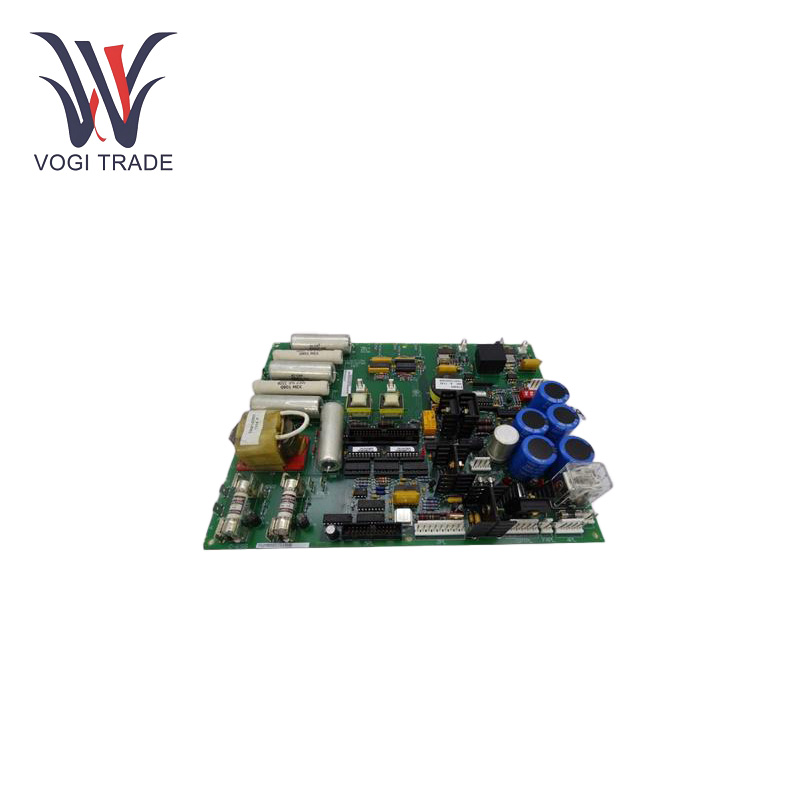

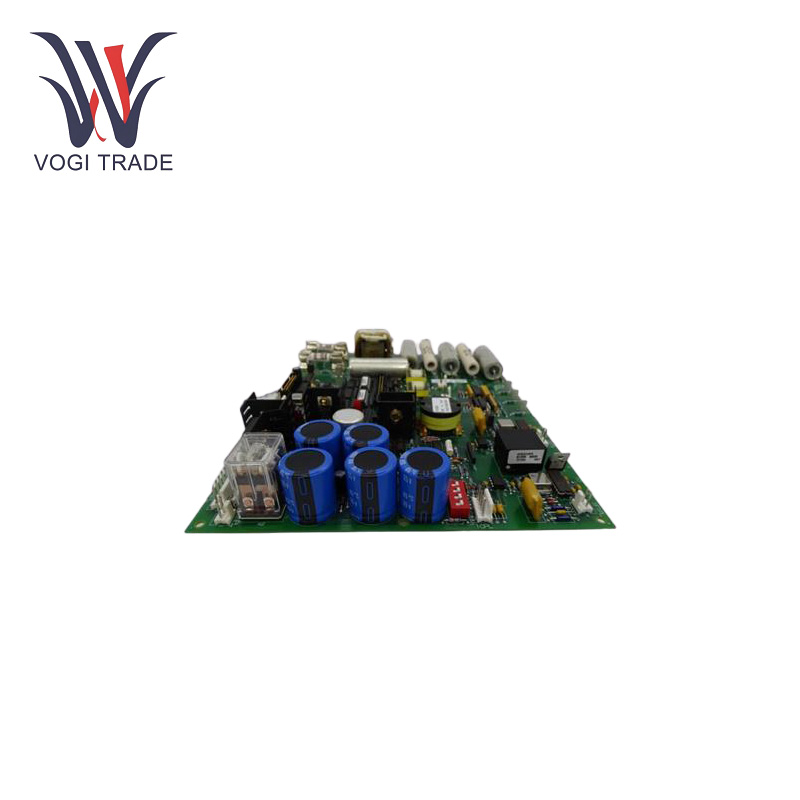

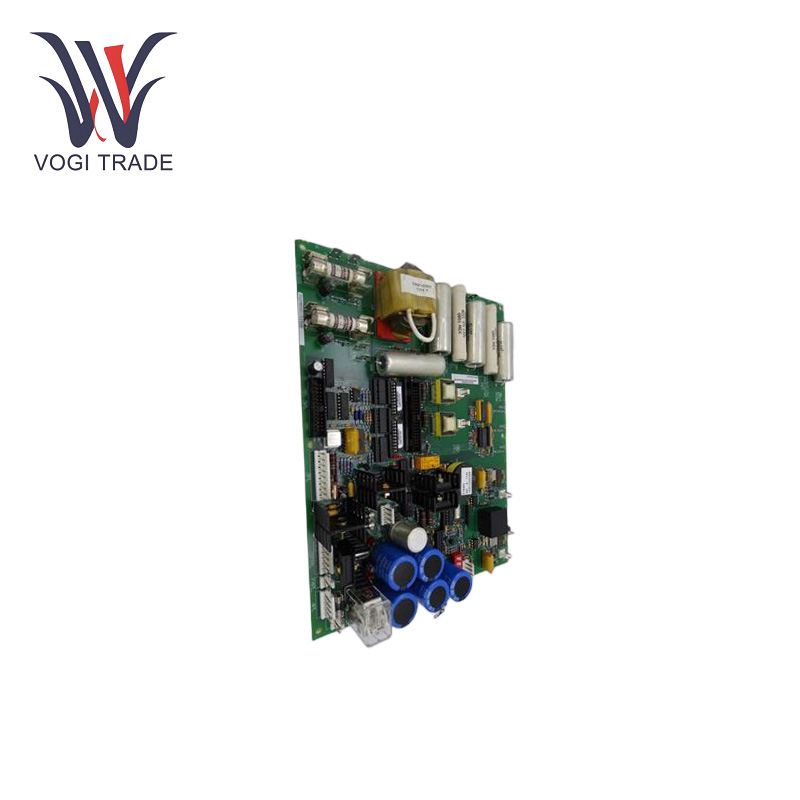

GE DS200SDCIG1AHB

Technical Parameter

Power input: 5V and 15V DC

Fuses: There are multiple, for 115V power, positive signal power, negative signal power, 15A NRX components, 10A NRX components

Jumpers and switches: Equipped with manually movable Berg-type jumpers and DIP switches, such as JP1 MD control source jumper, JP2 MA AC contactor trip time jumper, SW1 selects AC line load switch according to nominal DC output current

Protection components: Contains hardware components such as rectifiers, diodes, capacitors, etc. for voltage limitation

Operation Process

Power-On Initialization: Upon receiving power, GE DS200SDCIG1AHB instantly commences a self-check protocol. These microcontrollers and FPGAs will perform integrity checks on their internal memories, registers, and connected peripherals. Once finished, the unit sits waiting for incoming data.

Sensor Data Acquisition: GE DS200SDCIG1AHB is always polling over numerous sensors in an actual industrial use case. In a manufacturing plant, for example, it collects machine vibration, temperature, and rotational speed data. This real time data is then routed to the processing units onboard.

Intelligent Processing and Control: The microcontrollers and FPGAs process the collected data using preset algorithms. These algorithms are tailored towards optimizing production processes and safety while enhancing efficiency. Control signals are generated based on this processed data.

Actuator Actuation and Feedback: Control signals obtained from the calculations by it are sent to various actuators such as motors, valves, and relays. Also, GE DS200SDCIG1AHB monitors how well the actuators are performing, using feedback loops, as the actuators carry out commands. Through the user-friendly GE proprietary control software, operators can monitor and tune the process, providing real-time visualizations of important parameters, alarms, and diagnostic information.

Key Advantages

Both Digital and Analog Signals: its ability to manage digital and analog signals; depending on the requirements, it can be a fundamental part of hybrid control systems since they require a combination of discrete on/off control and continuous process monitoring.

Precision and Accuracy: It allows for high-resolution analog inputs and outputs, making it appropriate for applications needing high precision in data acquisition and system control, including temperature control, pressure measurement, and other process control systems.

Scalability: GE DS200SDCIG1AHB can scale when it comes to accommodating bigger, more complex industrial systems because it has multiple I/O channels. No matter if users have a small operation or a massive facility, it can work for users.

Cost-Efficient: Built as a single board with within digital and analog features, it lowers the number of separate components required for use, effectively minimizing hardware costs, and installation effort.

Applications and Use Cases

Power Generation: GE DS200SDCIG1AHB plays a pivotal role in power plants by interfacing with diverse sensors and control devices, including temperature sensors, pressure gauges, and motor controllers to ensure optimal operation. Its capability for handling both digital and analog signals makes it possible for comprehensive monitoring and control of turbines, generators, and boilers.

Chemical Processing: Precise control of processes in chemical plants is critical for both safety and efficiency. It connects to numerous types of sensors to monitor and control the chemical reaction processes in real time, maintaining the repeatability and reliability of the process.

Water Treatment and Distribution: In water treatment plants, it allows the operation of different pumps, valves and filtration systems. With accurate analog voltage inputs, water quality parameters such as pH and turbidity can also be accurately monitored, while digital outputs can control automated valves and pumps.

Industrial Automation: GE DS200SDCIG1AHB is used in large scale manufacturing plants to control and monitor automated machinery such as robotic arms, conveyor systems, and assembly lines. It can manage analog and digital signals, which is especially helpful for controlling production lines accurately.
