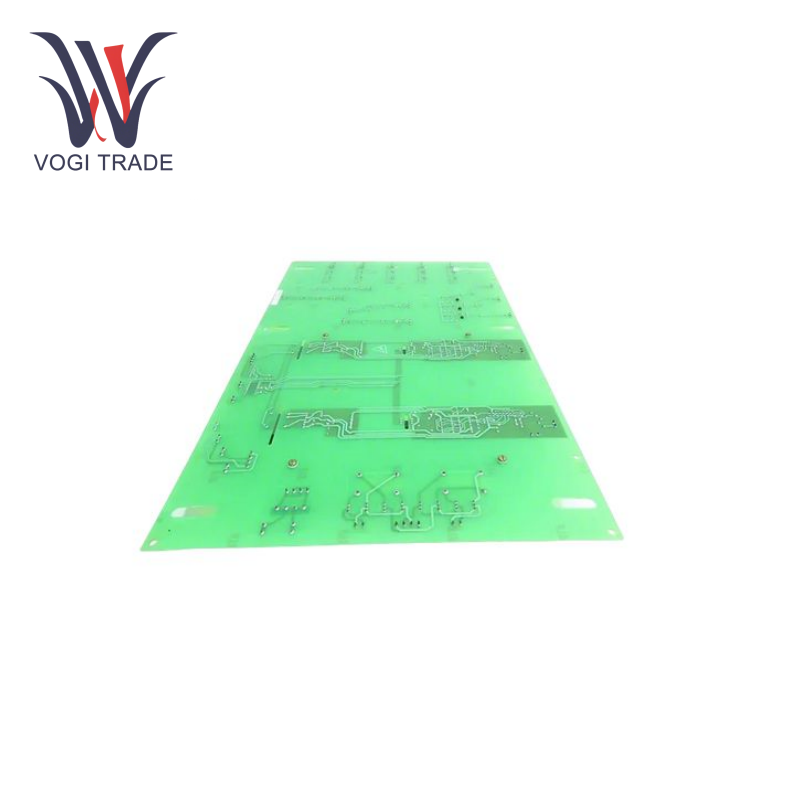

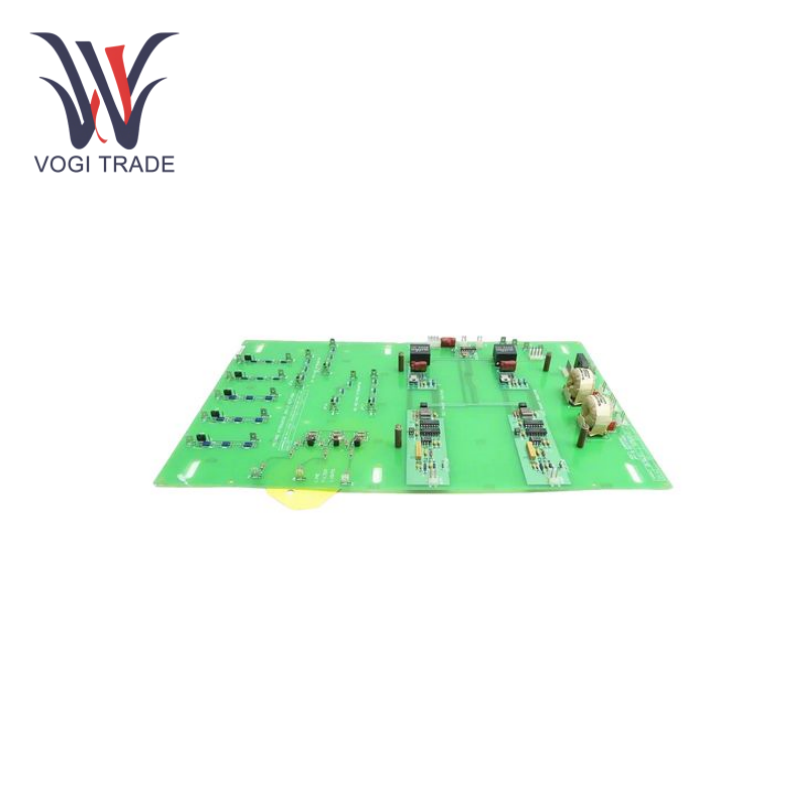

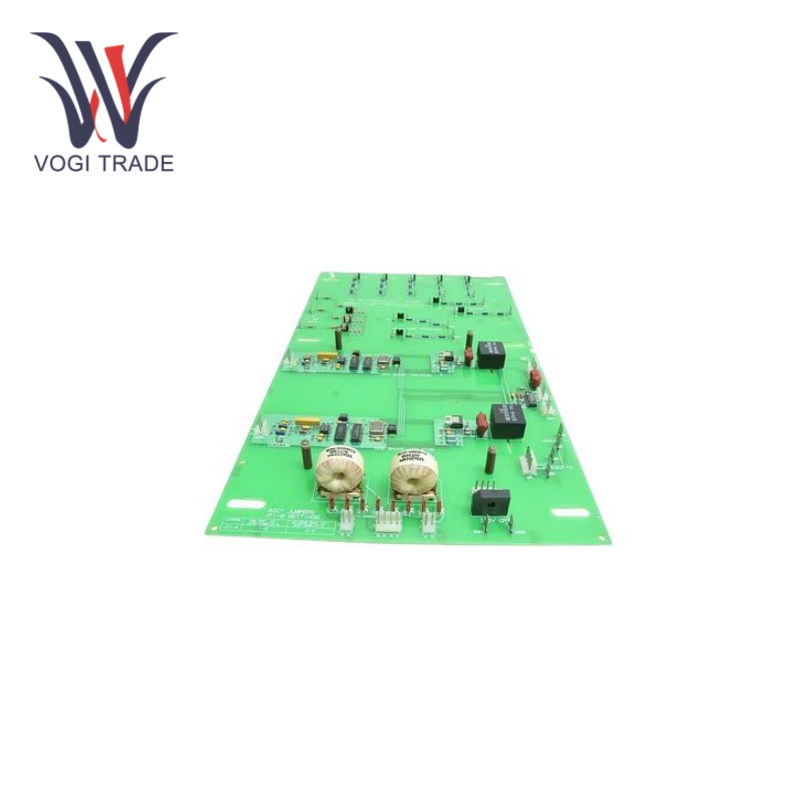

GE DS200SHVIG1BFC

Input Voltage: 24V DC.

Input Signal Range:  0–10V.

Operating Temperature Range: 0°C to 60°C.

Storage Temperature Range: -40°C to 85°C.

Humidity: 5% to 95% non-condensing.

Output frequency range: The converted differential frequency is 0 to 500kHz.

Function Features

High-Voltage Handling:  GE DS200SHVIG1BFC specializes in high - voltage handling. It can handle voltages in the range appropriate for large - scale industrial power distribution systems. For example, it may be utilized in high - voltage switch gear, allowing correct switching operations and protecting the electrical network from conditions of over - voltage or under - voltage.

Advanced Protection Mechanisms: GE DS200SHVIG1BFC is armed with several protection functions that establish resistance to short-circuits, overloads, and over-temperature. This protection is essential to safeguard equipment and equipment personnel. Those are practical things, for example in short - circuit event, the module can quickly stop the power transmission to prevent fire hazards and large-area electrical losses.

Flexible Configuration: GE DS200SHVIG1BFC can be configured flexibly according to the specific needs of the users. According to the specifications of the industrial structure, the module can be adjusted for different input and output voltage levels as well as for different protection and communication protocols.

Operation Methods

Remote Operation through SCADA:  GE DS200SHVIG1BFC may be built directly into a SCADA (Supervisory Control and Data Acquisition) system for remote operation. This enables centralised monitoring and control of it via the SCADA system. This is especially helpful for large industrial plants where the module could be in difficult - to - reach places or in several distributed locations.

Automated calibration: It has an automated calibration feature. This guarantees the time-stability of the voltage and current measurements. The calibration can be performed either on-demand or periodically to ensure that the module’s performance remains optimal.

Application Areas

Industrial Power Systems: GE DS200SHVIG1BFC is popular in industrial power systems like factories, refineries, and manufacturing plants. In some place, it can also use to manage and defend high - voltage electricity flow and distribution networks, to gain and sustain a stable and safe electricity provision to some industrial machinery.

Renewable Energy Installations: For renewable energy installations such as wind farms and solar power plants, it can be used to regulate the high-voltage output of the generation systems. It can help step - up the voltage for efficient transmission and protect against electrical faults.

Power Substations: GE DS200SHVIG1BFC can be used in power substations for controlling and monitoring high - voltage transformers, switch gear, and other electrical equipment. So it aids to ensure safe and trustworthy substation operations.
