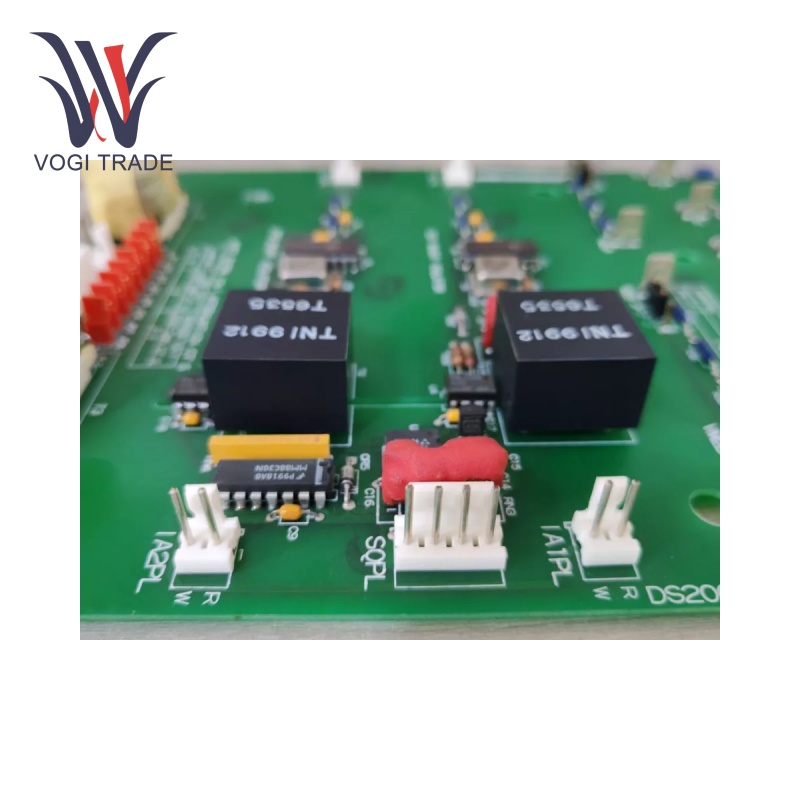

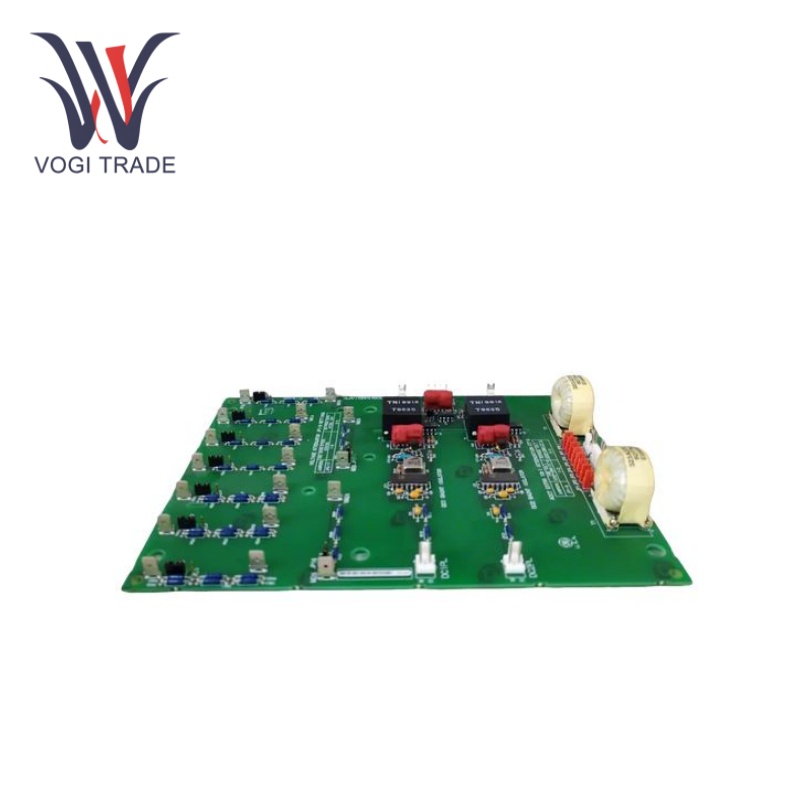

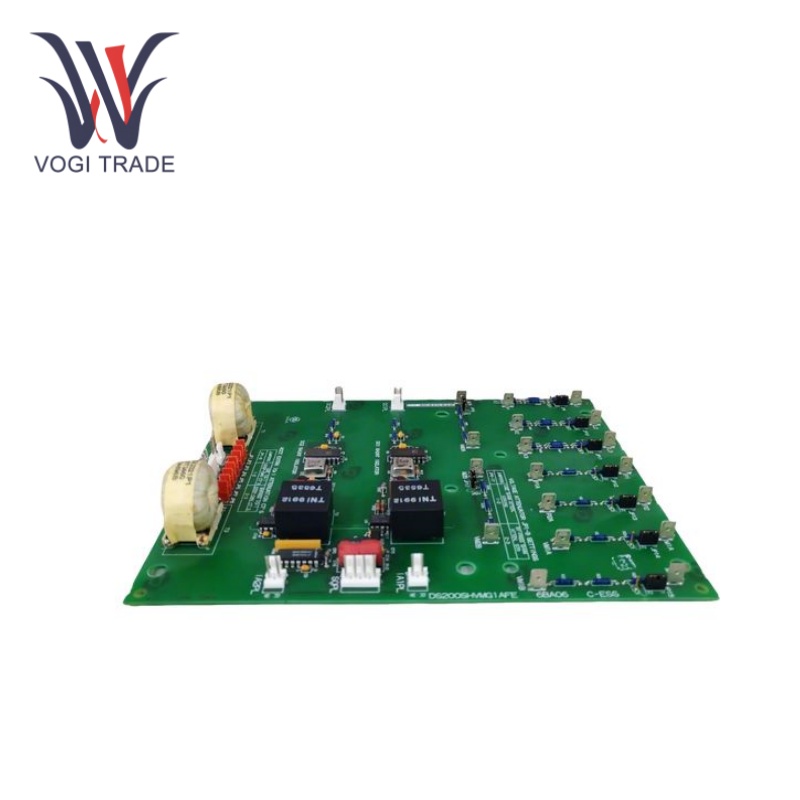

GE DS200SHVMG1AFE

Input Voltage: 24V DC.

Current Transformer: Provides 10:1 current transformer attenuation, the desired attenuation can be selected by configuring 17 on-board configurable jumpers.

Input Signal Range: -500mV to 500mV.

Output Frequency Range: Converted differential frequency is 0 to 500kHz.

Operating Temperature Range: -40°C to +70°C.

Storage Temperature Range: -55°C to +85°C.

Humidity Range: 5% to 95%, non-condensing.

Functional Features

Advanced Signal Processing: GE DS200SHVMG1AFE has advanced signal processing capabilities. It has the capability to resolve various electrical signals accurately, responding quickly to any shifts in the power system. It involves accurate measurement of voltage, current, and frequency, crucial for ensuring stability of the system.

Customizable Protection Logics: GE DS200SHVMG1AFE provides highly customizable protection logics. For different applications, users can configure the different protection settings. They can customize trip settings for over current, under voltage time delay and over frequency protection for precise protection coverage for the downstream equipment.

Redundancy and Fault Tolerance: This feature allows multiple circuits to function independently, enabling redundant circuits to take over in the event of a component failure, thus ensuring a continuous supply of power and functionality to the system. This greatly lowers the risk of unplanned outages.

Troubleshooting

Detailed Event Logging: GE DS200SHVMG1AFE has a comprehensive event logging system. It logs each significant occurrence, including errors, warnings, and changes to how it functions. Details of the event log include the time stamp of the event, fault type, and components impacted. This allows technicians to easily diagnose the root cause of a problem.

Remote Diagnostic Support: GE provides remote diagnostic support for this module This allows technical experts to connect to the device through a secure tunnel, retrieve data and perform diagnostic tests. They can also help to diagnose complex problems, offer real - time instructions to technicians on - site and to minimize the duration needed to resolve issues.

Application Areas

Power Generation Plants: GE DS200SHVMG1AFE is commonly used in power generation plants to monitor and protect electrical systems. This helps to ensure that generators, transformers, and other key equipment can continue to operate stably and prevent the integrity of the entire power generation process from being compromised.

Industrial Automation Systems: This module may be used in industrial automation applications as part of the control system. To protect motors, drives, and other automation equipment from electrical faults and to ensure uninterrupted operation of the production line.

Smart Grid Applications: GE DS200SHVMG1AFE can be an integral part of smart grid systems for monitoring power quality and ensuring grid safety. It assists in the stability of the grid, fault diagnosis, and response, and optimal dispatch of power.
