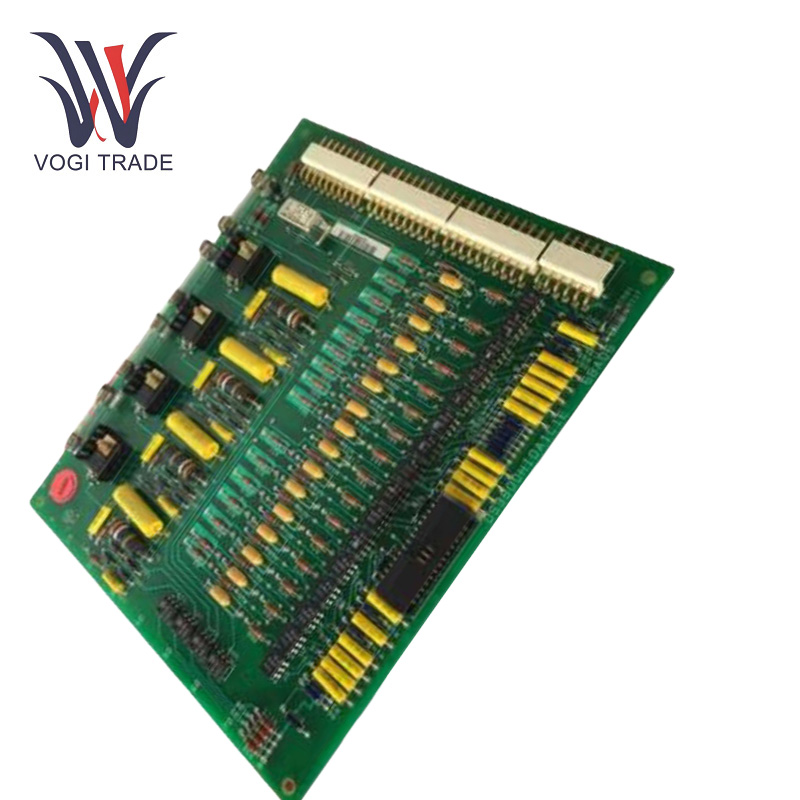

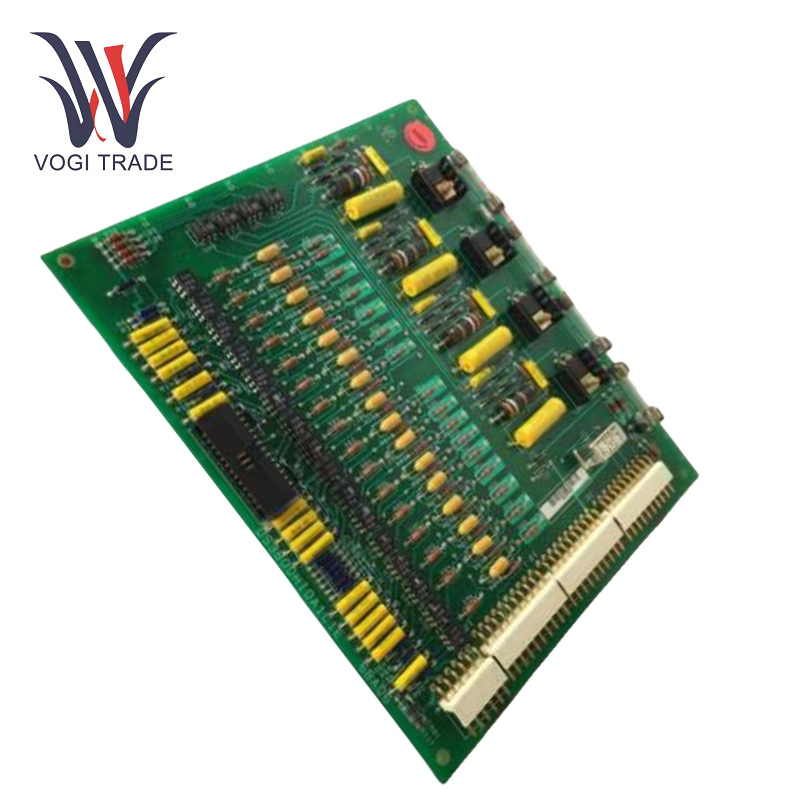

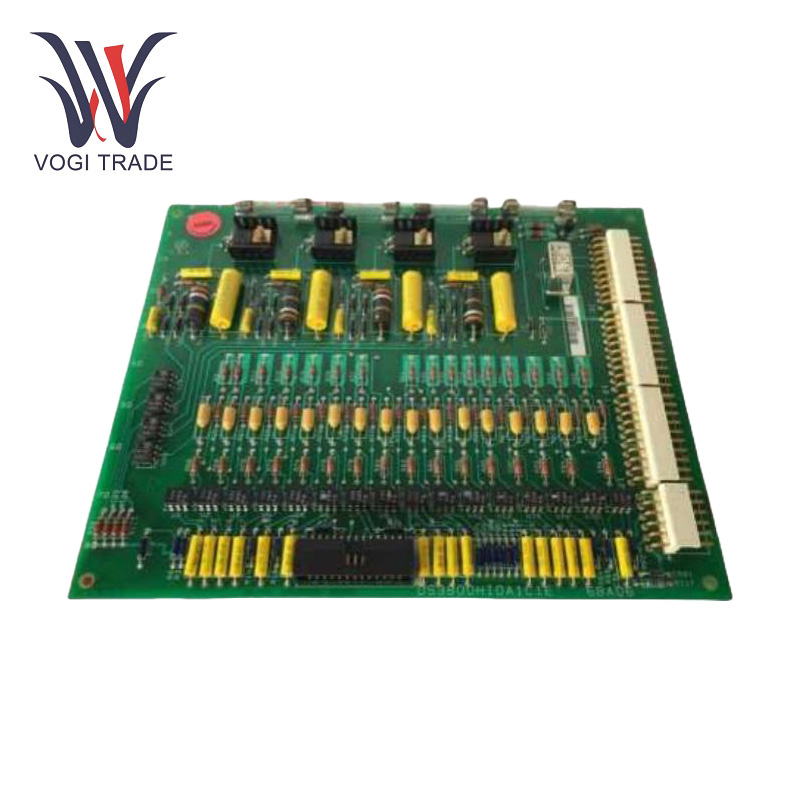

Brand: GE Description: Drive Snubber Board Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen GE DS200SSBAG1A is a Drive Snubber Board. Its main role is suppress the high voltage spike generated in the motor starting and stopping cycle preferred by the drive system components and improves the stability and reliability of the system.
|
Manufacture |
GE |
|
Model Number |
DS200SSBAG1A |
|
Ordering Number |
DS200SSBAG1A |
|
Catalog |
Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
21cm x 12cm x 2.5cm |
|
Packing Dimension |
25cm x 15cm x 5cm |
|
Weight |
0.5kg |
Technical Parameter
Battery Rating: 660 VAC.
Connector Type: 2-pin FCPL connector.
Vibration Operating: 10 to 500 Hz, 5G, 0.030 inches maximum peak-to-peak.
Shock Operating: 30G panel mounted.
Relay Operation: 2G.
C-UL Certified: Under CSA C22.2 No. 142
UL 508 Listed: CE and C-Tick compliant for all applicable directives.
Hazardous Environment: Class I, Division 2, Hazardous Location, Groups A, B, C, D.
Functional Features
Snubber Function: GE DS200SSBAG1A is mainly used to suppress voltage spikes and transient over-voltages of DC 300/2000 drive system. It can effectively protect the voltage spikes in power transient devices, such as power transistor or thyristor.
Power Backup: The two AZ Cap K 90017-437 batteries help to provide the power and backup to ensure that the board will function stably when the power supply fails or the voltage fluctuates.
Energy Dissipation：The snubber circuit on GE DS200SSBAG1A can dissipate excess energy in the form of heat, absorbing and then releasing energy in a controlled manner to ensure that voltage spikes do not build up.
Noise Rejection: Logic Divider Circuit minimizes electromagnetic interference (EMI), and electrical noise created as a result of the switching events, which is good for the optimal operation of nearby electronic equipment and telecommunication information systems.
Application Areas
Thermal Power Generation: GE DS200SSBAG1A is used in generation field and transformer control systems in thermal power plants and hydropower plants and other generating units, and can protect power electronic devices in the processes of power generation and transmission. Overvoltage and overcurrent protection can guarantee stable power supply.
Industrial Automation: used in the automation production line, such as automobile manufacturing, steel processing, chemical factory and other motor drive system. GE DS200SSBAG1A Voltage surge and a normal cycle of motors and other machinery can be the driven components of these systems.
Power inverter applications such as renewable energy conversion systems (solar and wind power):GE DS200SSBAG1A can help smooth voltage spikes and noise, optimizing the energy conversion process for improved efficiency and reliability.
