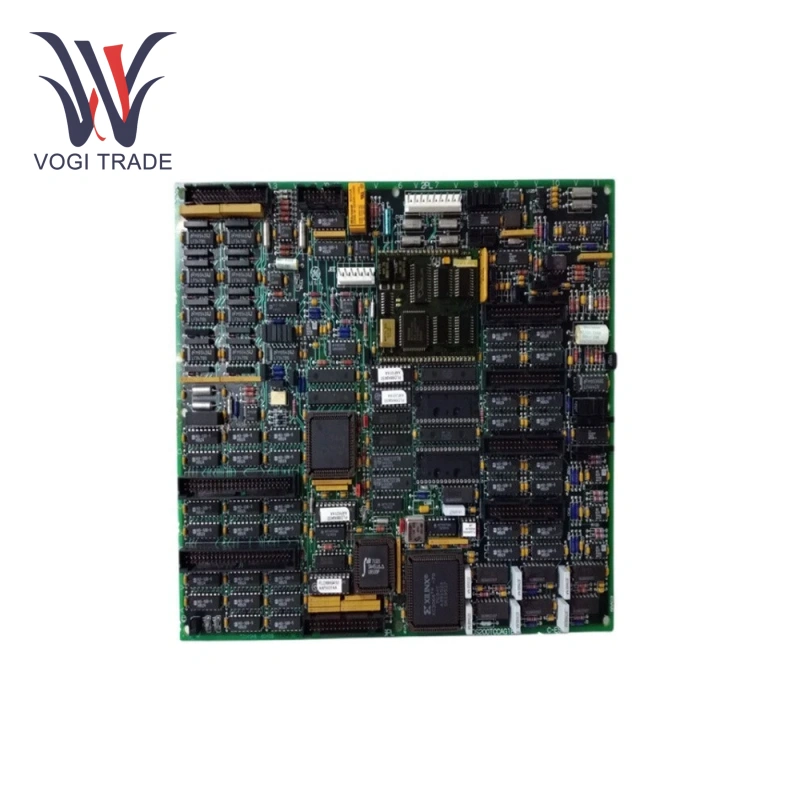

GE DS200TCCAG1B

Technical Parameters

Core Processor and Storage

Processor: 667 MHz PowerPC or 32-bit high-speed microprocessor (slightly different descriptions in different sources) to ensure fast data processing capabilities.

Memory: 64 MB RAM and 64 MB Flash to support complex program storage and operation.

Input/Output (I/O) Configuration

Analog Input: 8 channels, input range covers -10V to +10V, 0 to 20mA, resolution up to 16 bits, accuracy ±0.1% (thermocouple).

Analog Output: 4 channels, output range is the same as input, support high-precision signal output.

Digital Expansion: Supports combination with digital I/O modules to expand to hundreds of I/O points.

Communication Function

Protocol Support: Modbus RTU, Profibus DP, EtherCAT, Profinet, EtherNet/IP, etc.

Interface type: RS485, Ethernet, USB, serial port, compatible with a variety of industrial networks.

Environmental adaptability

Working temperature: -25℃ to +85℃.

Power supply and power consumption

Input voltage: 24V DC, maximum power consumption 30W (some models are 220VAC input).

Product function

High-precision signal processing: GE DS200TCCAG1B Supports thermocouple (J/K/T/E and other types), RTD (resistance temperature detector) input, provides cold end compensation and filtering functions, suitable for continuous signal acquisition such as temperature, pressure, flow, etc.

Flexible configuration and expansion: GE DS200TCCAG1B Can be used with GE TC2000 series PLC to realize the conversion of analog signals and digital signals, and supports LVDT, servo valve and other equipment interfaces.

Real-time monitoring and diagnosis: Built-in LED status indicator, real-time display of module operation status; support remote monitoring and fault diagnosis to improve system reliability.

Multi-field application adaptation: GE DS200TCCAG1B Supports VxWorks real-time operating system, suitable for automation control systems in power, petroleum, metallurgy and other industries.

Use and collocation of related products

Core supporting modules

DS200TBCAG1A: Analog input/output expansion module of the same series, providing more channel expansion capabilities.

DS200TCQAG1BFD: Terminal control board, used for signal management of steam turbine control systems.

Extension components

DS200TCCBG1B: C expansion analog input board, enhanced signal processing capabilities.

DS200SLCCG1A: LAN communication module, improves network connection stability.

Software support

GE Proficy Machine Edition: Programming and debugging tools, supporting IEC 61131-3 standard languages (ladder diagram, function block diagram, etc.).
