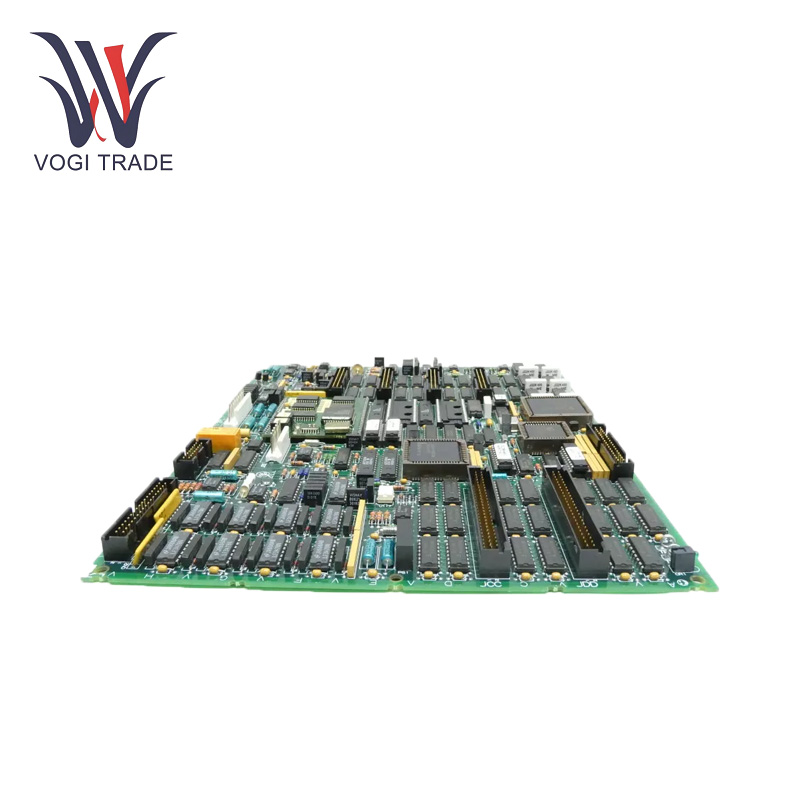

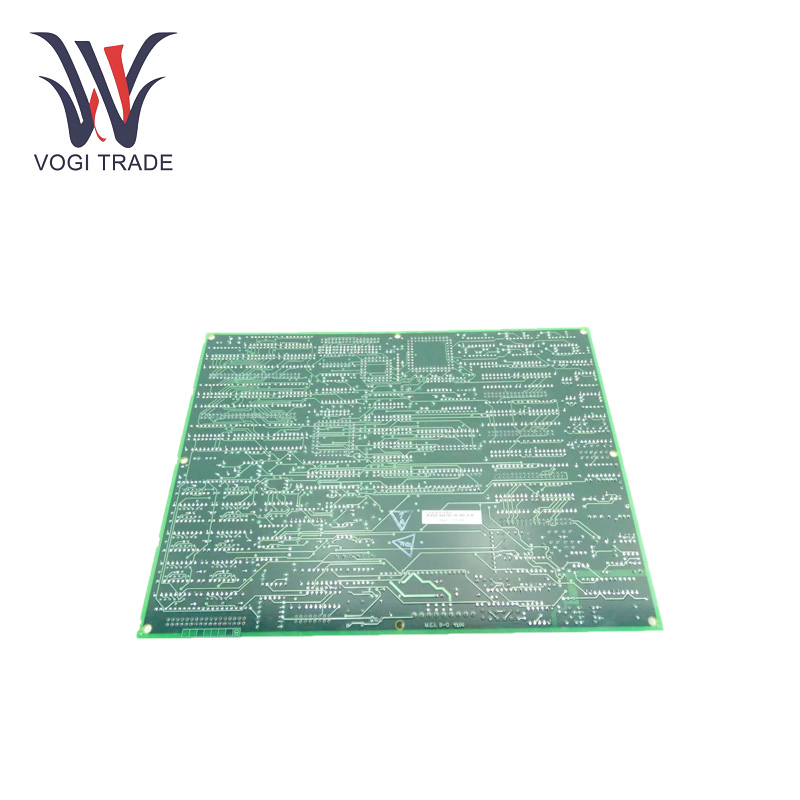

GE DS200TCCAG1BAA

Technical Parameter

Rated input voltage: 24V DC.

Operating voltage range: 20V DC to 30V DC.

Analog channels: 4-8.

Operating temperature range: -40°C to +70°C.

Storage temperature range: -40°C to +85°C.

Analog signal resolution: 12 bits, ensuring precise process control.

Digital signal response time: Fast response, suitable for industrial applications requiring high-precision control.

Operation Process

Signal Reception: The constant reception of signals from the different sensors that are paired with the turbine, ie temperature, pressure, speed sensors, etc.

Signal Processing: GE DS200TCCAG1BAA processes received signals and applies pre-programmed algorithms to identify required control actions .

Control Output: GE DS200TCCAG1BAA will send device control outputs to the turbine actuator systems based on the processed data. This could mean sets the fuel flow, set the valves and set other mechanical elements to keep working under optimal conditions.

Feedback and Adjustment：Continuous feedback from this device is provided to the control system to ensure that the turbine operates efficiently, safely, and within specified limits.

Distinctive Advantages

Real-Time Control and Precision：GE DS200TCCAG1BAA stands out in its ability to offer real-time control over turbine operations. For example, it can dynamically tune both turbine parameters and its own configurations, allowing for high performance under misinteractions during load transitions.

Seamless Integration: GE DS200TCCAG1BAA is designed to easily interface with GE Mark V and Mark VI control systems, allowing for smooth integration into existing infrastructure. This compatibility streamlines user's setup and limits reconfiguration time.

Enhanced Fault Protection：This is further linked with enhanced fault protection where it is capable of real time monitoring of key turbine parameters with high speed fault detection. It can initiate immediate responses, such as an automatic shutdown or adjustments, to avoid damaging the turbine and other equipment in case of a fault.

Application Fields

Renewable Energy: In renewable energy systems like the wind farms, wind turbines are controlled by GE DS200TCCAG1BAA, maintaining the speed and angle of the wind turbine blades to generate maximum energy and protect the blades of the wind turbine from destruction. It ensures that wind turbans works smoothly as well as safely on different environmental conditions.

Industrial Manufacturing: Heavy industrial applications, including the chemical and petrochemical industries, rely on precise control of the turbines for safe and efficient operation. It makes this level of control possible, ensuring not only that turbines operate at the needed speed and load, but also that safe operating parameters are not exceeded.

Marine use: It is often used in propulsion or power generation of marine power plants or ships. That is exactly why GE DS200TCCAG1BAA enables these turbines to be functional and efficient on even the most difficult of days at sea.
