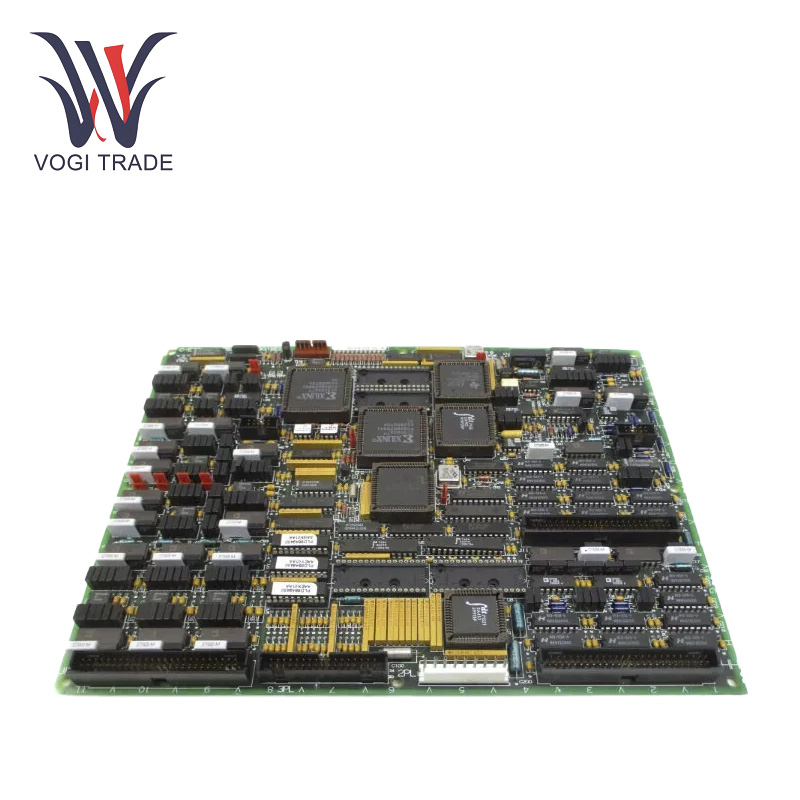

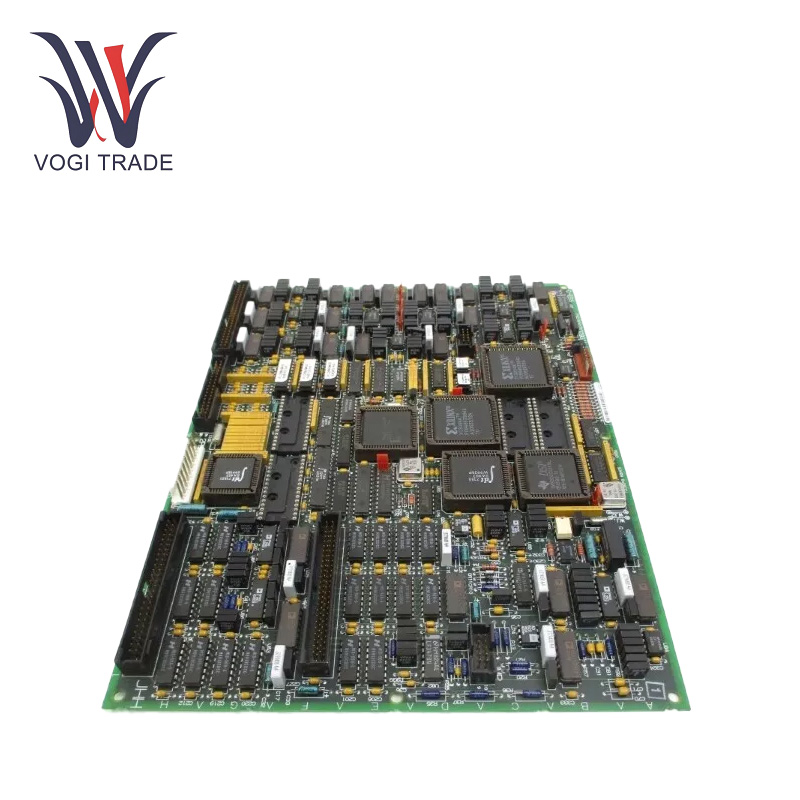

GE DS200TCCBG1BED

Operating Parameters

Input Voltage Range: 100 VAC-240 VAC, 50/60 Hz。

Operating Temperature: -20°C- 60°C。

Dynamic Processing: 1 GHz。

Memory: 512 MB。

Communication Protocol: RS-232 and RS-485。

Output Channels: 8 analog output channels, 16 digital output channels 12 Analog Input channels。

MTBF (Mean Time Between Failures): More than 50,000 hours。

Product Features

Precise control: GE DS200TCCBG1BED uses advanced circuit design and intelligent algorithms, which enable it to perform precise control in a variety of processes. It can maintain accuracy in complex and dynamic working situations.

Multi-port: It supports protocols including Ethernet, serial (RS-232/485), which enable real-time data exchange and remote observation. This allows operators to receive real-time updates on the status of the device and make remote adjustments.

Adaptive processing: The GE DS200TCCBG1BED can adapt to different input signals and environmental conditions. It can automatically adjust and calibrate itself based on the information it receives, achieving optimal performance based on the surrounding situation or conditions. For example, in a changing temperature environment, it can internally adjust internal parameters to keep the output stable.

Onboard memory system: The onboard memory system is designed to retain a large amount of operating data. This data logging function can be used for post-analysis, troubleshooting, and performance enhancement. Engineers can review old data to determine trends and any potential problems that may have occurred in previous operations.

Installation

Rack mount: You can install it in a standard 19-inch equipment rack. The included screws and mounting brackets align perfectly with the rack slots. This installation method is often used in data centers or control rooms, where slots are used to organize multiple devices in an orderly and accessible manner.

Panel mount: For applications that require direct access and visibility, panel mounting can be used. The GE DS200TCCBG1BED features a front panel design that can be integrated into the control panel. Specific cutouts and gaskets are included to ensure that a proper seal is established to prevent dust and moisture from entering.

DIN Rail Mounting: It can also be mounted on a DIN rail in industrial applications where modular mounting is preferred.

Troubleshooting

Communication Failure: If the device is unable to communicate with other devices, the first step you need to take is to check that the cabling is connected correctly. Make sure the Ethernet connection for the serial cable is correct and not damaged. Check the communication parameters such as the IP address, baud rate, and parity bits and make sure they also correspond to the connected device.

Output is not as expected: Check the input signal to verify that the input providing sensor is working properly. Perform the built-in calibration procedure on the device if required. Make sure to also review the control algorithms and settings to ensure that they are appropriate for the application.

Overheating Issues: If the GE DS200TCCBG1BED is overheating, check the temperature of the operating environment. Make sure the device is properly ventilated. Clear any dust or debris that has accumulated on the various heat sinks. Restart the computer and check if the problem persists: If the problem persists, you can try installing a new cooling fan or moving the device to a cooler location.

Memory Style Errors: For memory style errors, try restarting the device to eliminate the temperature fault. Check the available space if the problem persists. Delete any conflicting firmware updates or data.

Application range

Power generation industry: GE DS200TCCBG1BED helps control parameters such as turbine speed, temperature, pressure, etc. to ensure a smooth and efficient power generation process. It does this by precisely managing these variables, helping to optimize power generation while minimizing wear and tear.

Oil and gas industry: Applied to pipeline monitoring and control, tracking flow, pressure, pipeline integrity. The onboard department of offshore drilling platforms helps maintain the complex functions of drilling equipment, improve safety and productivity.

Industrial automation: Applied to automated production lines from automotive manufacturing to food processing plants. It controls robotic arms, conveyors and other machines to ensure that products are assembled or processed in a consistent and high-quality manner.
