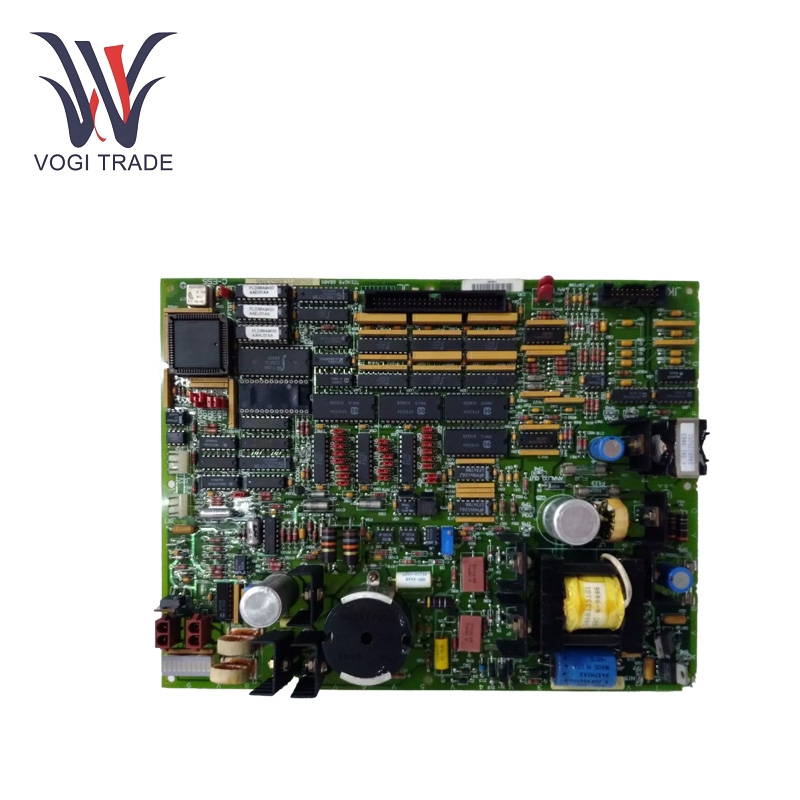

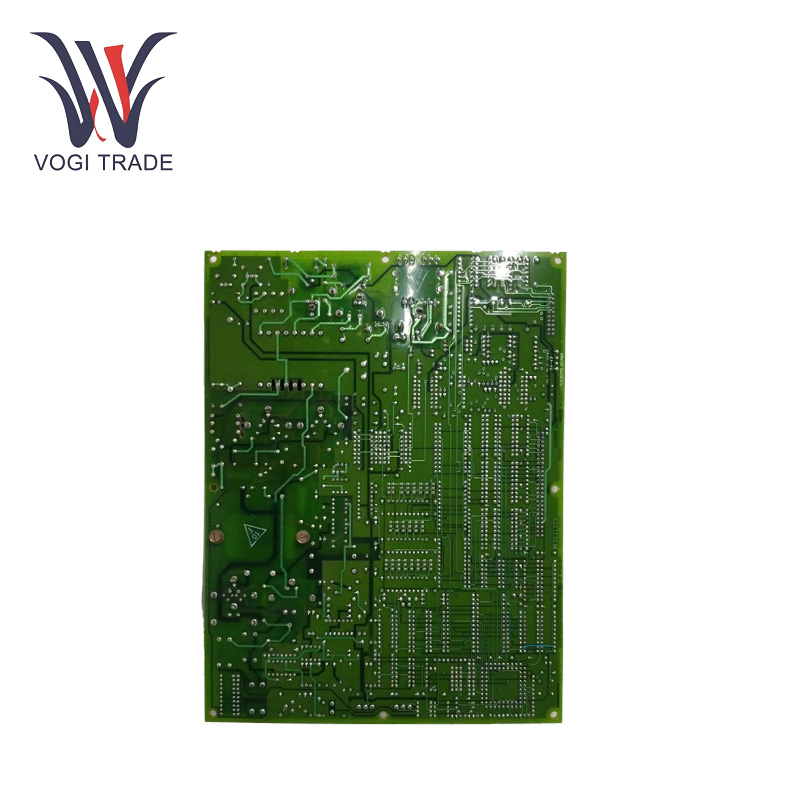

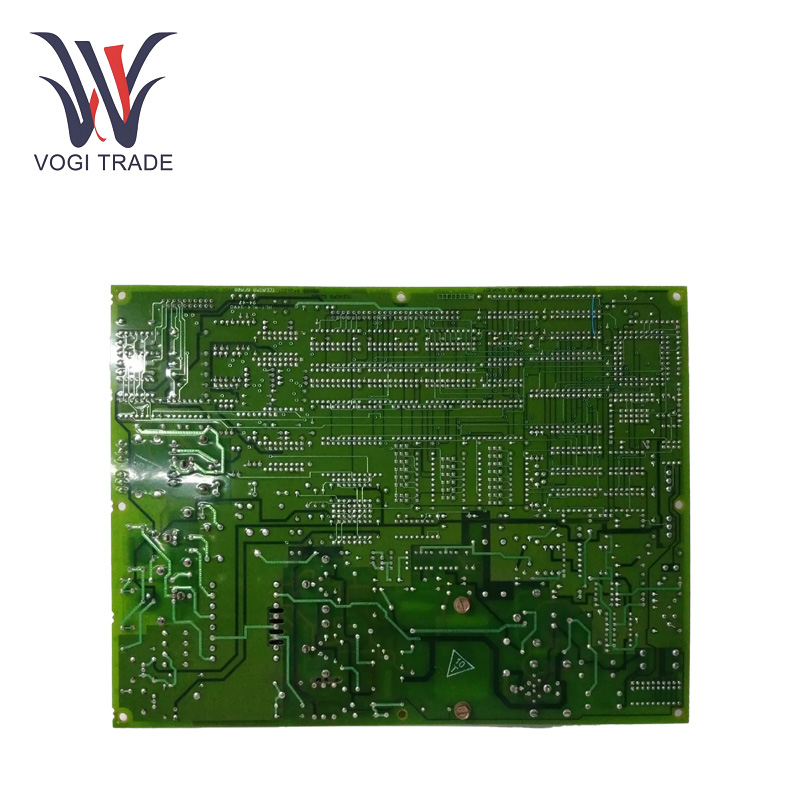

GE DS200TCEAG1BNE

Technical Parameters

Measurement Range: 0-100%

Measurement Accuracy: ±0.5%

Storage Temperature: -40°C to + 85°C.

Operation Temperature: -55 °C - + 90°C.

Relative Humidity: 5% to 95%

Protection Level: IP65

Number of Jumpers: 30

Number of Fuses: 3

Type: Bayonet Connector

Output Signal: Analog Output, Digital Output

Safety Measures: Stop Fuel Supply and Start Emergency Stop Procedure

Features

Microprocessor: GE DS200TCEAG1BNE is equipped with a high-performance microprocessor that can quickly respond to speed changes and ensure real-time and accurate monitoring of the speed of rotating equipment.

Programmable Read-Only Memory: Multiple PROM modules are inserted to store the firmware and operating instructions used by the microprocessor. The PROM can be programmed according to actual needs to achieve customized overspeed protection functions.

Monitoring System: GE DS200TCEAG1BNE automatically takes safety measures when the speed exceeds the predetermined threshold, ensuring reliable overspeed detection and reliable response.

Easy to integrate: The DS200TCEAG1BNE emergency overspeed board uses a bayonet connector, which is easy to interconnect with other devices and boards, supports a variety of installation and integration methods, and can adapt to different industrial environments.

High reliability and durability: It uses high-quality drugs and designs to ensure long-term stable operation, and can work in a variety of power grid industrial environments such as high temperature, high humidity, and shutdown.

Application range

Power generation industry: Used as a speed monitor and controller for power equipment such as gas turbines and wind turbines to ensure that the power generation equipment does not exceed the safe working range and avoid damage and accidents caused by overspeed.

Oil and gas industry: Gas turbines act as a power source in the exploration, processing and transportation of oil and gas. At this stage, an overspeed protection board can be applied to control the speed of these gas turbines to make the system run stably.

Ships: Gas turbines are used as propulsion or auxiliary power systems on some ships. By utilizing the GE DS200TCEAG1BNE, the speed of ship gas turbines can be monitored and controlled, so that ships can be used for safe exploration.

Aerospace: The aerospace industry also utilizes gas turbines for electricity generation and also for monitoring the speed of gas turbines in aircrafts to ensure flight safety.

Gas turbine power generation: GE DS200TCEAG1BNE In a gas turbine power plant, the speed of the gas turbine is monitored in real time. When the speed exceeds the set safety threshold, the protection mechanism is quickly triggered to cut off the fuel supply or start the emergency stop procedure to prevent equipment damage and safety accidents caused by overspeed and ensure the stable operation of the power generation system.
