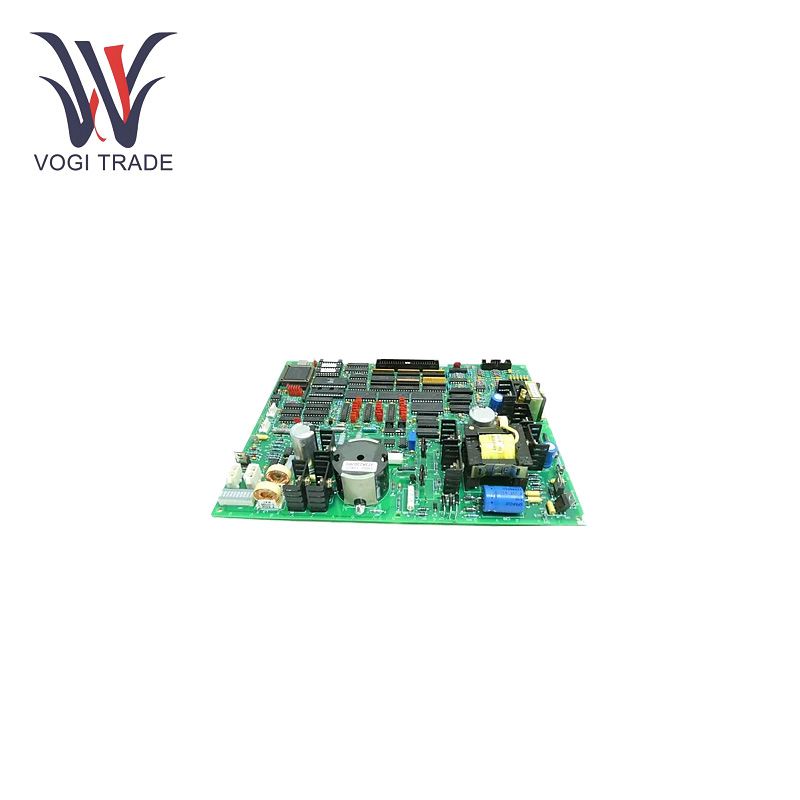

GE DS200TCEAG1BTF

Technical Parameters

Microprocessor: 80196 microprocessor

Power input voltage: 100V-240V

Operating temperature range: 40°C to 85°C

Fuse: 3 fuses

Jumper: 30 jumpers

Bayonet connector: 2

Memory: There are multiple additional programmable and erasable read-only memories.

Circuit: TCEA flame detection, TCEA turbine overspeed, TCEA automatic synchronization.

System: Mark V turbine control system

Output signal type: overspeed, flame detection, trip and trip signal, etc.

Features

Configuration of microprocessor and storage system: 80196 microprocessor, with powerful processing power, GE DS200TCEAG1BTF can quickly and effectively implement various signals and data, according to the motherboard multiple programmable erasable read-only memory module slots, store firmware and operating instructions in a modular and flexible way can adapt to the requirements of specific applications, so that the motherboard can work according to different operating scenarios.

Comprehensive signal processing: GE DS200TCEAG1BTF can process overspeed signals and flame detection trip signals separately. The turbine constantly monitors its own speed and flame status during operation. Once an abnormal flame or overspeed occurs, an alarm trip signal is immediately sent to the turbine or external protection system, and the necessary mechanical interlocking and electrical protection measures are initiated to improve the overall safety protection of the turbine's adjacent systems.

Fuse: There are 3 fuses on the GE DS200TCEAG1BTF board to shield voltage spikes and other irregular voltage fluctuations and protect internal components. In addition, 30 jumpers and 2 bayonet connectors allow a wide range of configuration options. They provide users with ways to customize the board's electrical connections, adjust its functionality, or even mix it to suit their own needs, making it highly adaptable to different industrial environments.

Flexible connector arrangement: J7 pd core TCEA board power connector, JK TCEB board P1 core signal connector, JL TC TG board trip signal connector, JW TCEB board flame detection signal connector, JX1 and JX2 daisy chain Ionet TC QC board connector. These communication connections facilitate integration with other components in the turbine control system.

Application Scope

Power Generation Industry: GE DS200TCEAG1BTF monitors turbine speed and flame conditions in real time during power generation. It can protect the turbine from overspeed conditions and respond to flame detection signals to mitigate potential flame conditions before they escalate, thereby ensuring stable and safe operation and helping to improve the overall reliability and efficiency of power generation.

Petrochemical Industry: GE DS200TCEAG1BTF aims to keep the turbine driving this important equipment running within a safe speed range and detect any signs of abnormal flames. This helps prevent costly downtime and safety incidents that can have life-or-death consequences in environments that handle flammable and industrial materials.

Marine Industry: The GE DS200TCEAG1BTF Emergency Overspeed Panel is a must-have for gas or steam turbine driven vessels. It monitors turbine speed and flame status, protects the ship’s power supply, ensures smooth sailing, and safeguards the safety of the crew and the ship itself.
