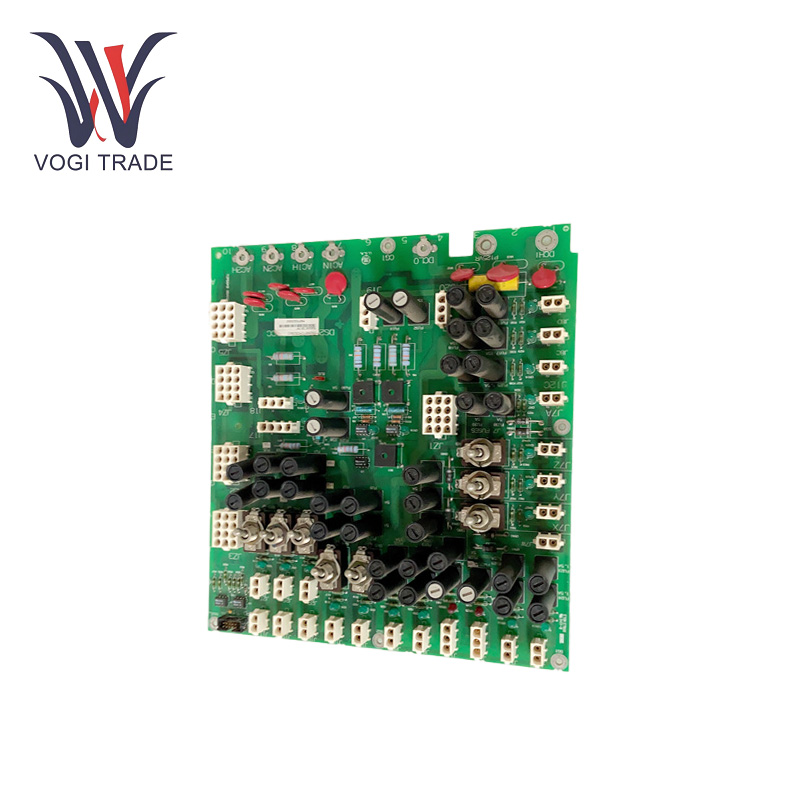

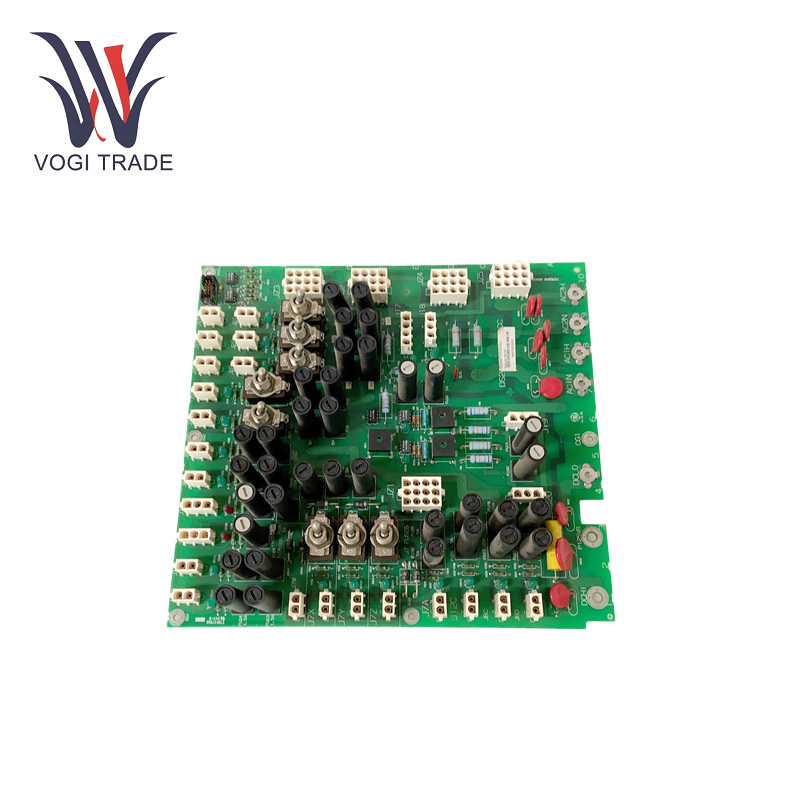

GE DS200TCPDG2BEC

Technical Parameters

Input voltage: 125 VDC

Working current: 20A

Input type: digital signal input

Output type: contact output

Number of channels: 8

Common mode rejection: 120dB at DC/50/60Hz.

Common mode impedance: > 10 MΩ.

Normal mode release: 60dB at 60Hz.

Local bus current: 210mA at 12V DC nominal

Communication protocol: Modbus protocol, EtherNet/IP protocol, Profibus protocol

Functional Features

Reliable power distribution: Through 125 VDC input voltage and 20A current. Through 8-way relay contact output, the power supply of different components can be accurately controlled to ensure the normal operation of each component.

Fault protection: Built-in fault protection function can automatically cut off the power supply. At the same time, the sound alarm function can effectively prevent damage, protect equipment and ensure personnel safety.

Fuse Protection: 36 fuses are packaged in a black plastic container. These protections prevent overcurrent conditions in the circuit, and faulty fuses can be detected and replaced by quickly and visually checking the fuse status through the 36 OK LED on the circuit board.

Multifunctional Input and Output Interface: GE DS200TCPDG2BEC supports different types of equipment and systems, with multifunctional input and output interfaces such as digital signal input and relay contact output. It also contains 4 signal line terminals and 1 10-pin connector for smooth interconnection between each other, making it easy to integrate with other devices in the control system.

Excellence：GE DS200TCPDG2BEC is made of high-quality materials and high-quality electrical components, which has excellent working performance and longer service life. It is developed according to the strict specifications of power plant operation, using component redundancy and built-in self-test to maintain its integrity.
