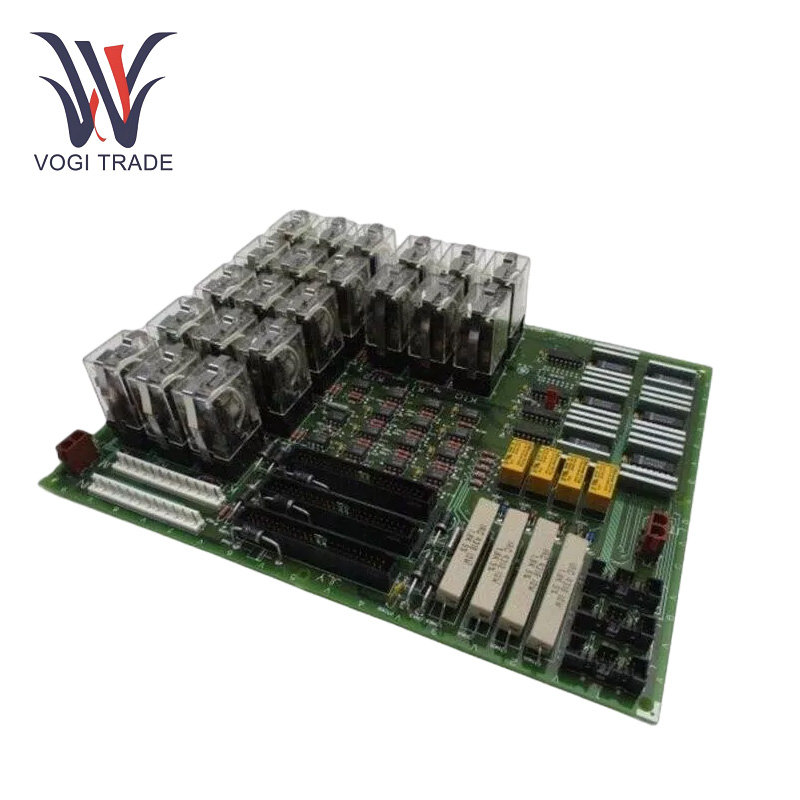

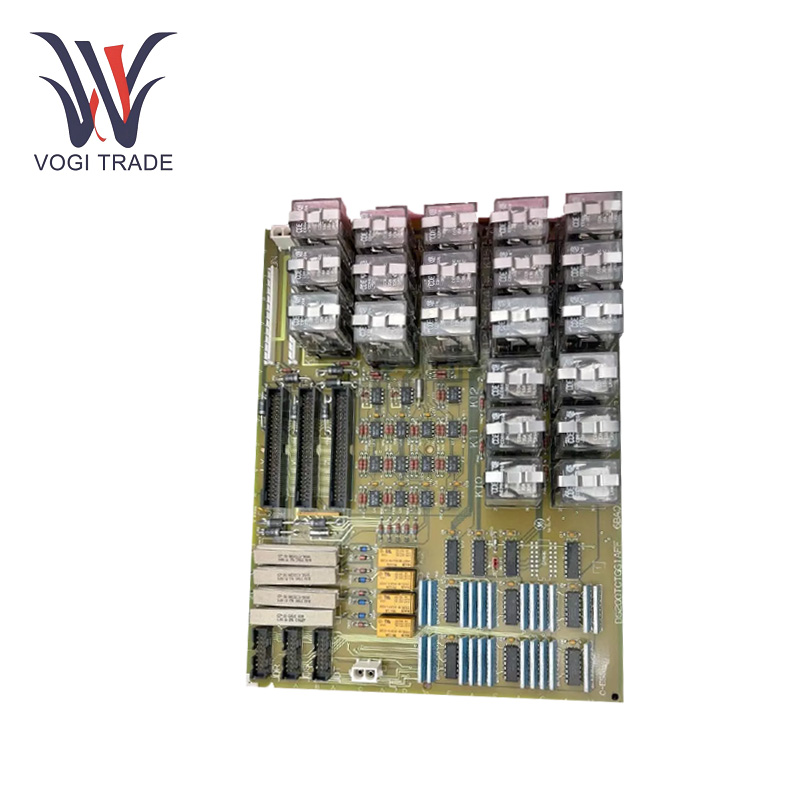

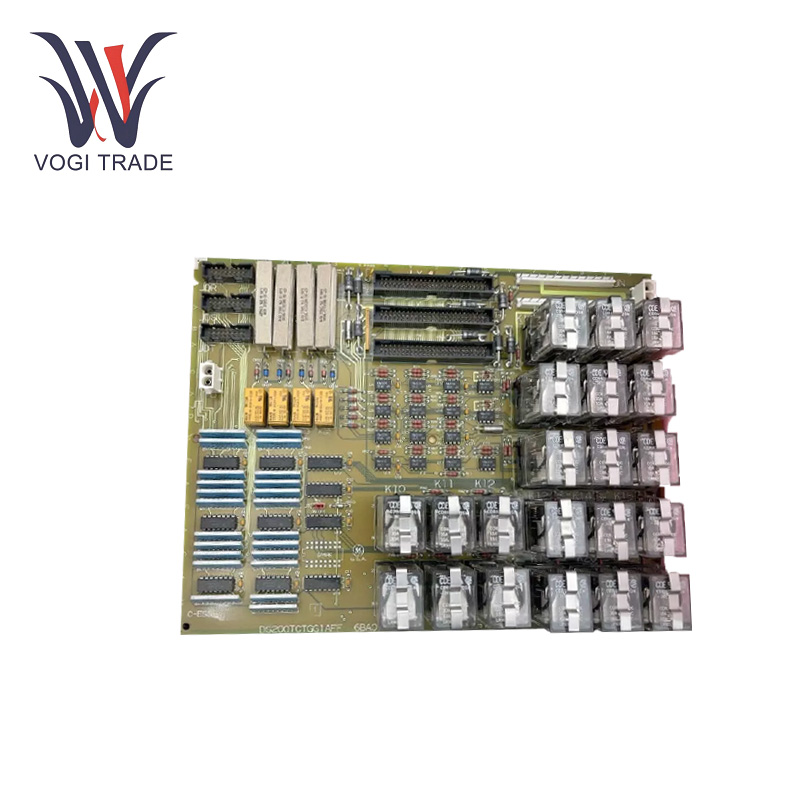

Brand: GE Description: GT TMR/Simplex Trip Board Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen GE DS200TCTGG1AEE is an adjustable speed AC drive module that is designed to precisely control the speed of AC motors through variable frequency technology, achieving efficient startup and operation protection of turbine units.
|
Manufacture |
GE |
|
Model Number |
DS200TCTGG1AEE |
|
Ordering Number |
DS200TCTGG1AEE |
|
Catalog |
- |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
27.9cm*20.4cm*6cm |
|
Packing Dimension |
31cm*23cm*8cm |
|
Weight |
1.5kg |
Operating Parameters
Input voltage 24V DC
Main circuit: 480V AC
Output voltage: 5V DC
Drive output: 1200V DC
Rated current: 200A
Control mode: Trigger gate control (IGBT drive)
Operating temperature: -40°C ~ +85°C
Protection level: IP20
Communication interface: 40-pin connector + LED status indicator
Humidity: 5% to 95% (non-condensing).
Supply Voltage: 24V DC.
Low Power Consumption: Approx. 500mA.
Product Features
Signal Processing and Conditioning: GE DS200TCTGG1AEE handles signal processing and conditioning. It is able to convert analog signals from sensors into digital values for processing by the control system. In addition, the chip "cleans" the digital signals before transmitting them, so they match perfectly with other devices in the system, improving signal quality and reliability.
Data Acquisition and Conversion: The GE DS200TCTGG1AEE can acquire data from multiple sensors and convert the data into a format that is easy for the control system to process. This allows precise tracking of physical parameters (temperature, pressure, flow rate, and vibration).
Control and Drive: GE DS200TCTGG1AEE can provide control signals to other devices in an industrial control system (such as motors, valves, pumps, etc.) based on the processed inputs. It can also communicate with actuators to open and close valves, start and stop motors, or change the speed of rotating machines.
Communication Interface: Enables it to interact with other parts of the control system. It uses standard communication protocols such as Modbus, Profibus, or Ethernet/IP, allowing smooth integration and data transfer with PLCs, HMIs, and other control devices.
Fault Detection and Diagnostics: We have also added FDD capabilities to the product. It is able to self-monitor its own operations, including the signals it processes to find abnormal conditions or faults. If a fault occurs, it is able to issue an alarm signal and provide diagnostic data, allowing maintenance personnel to find and correct the fault, ensuring minimal downtime.
