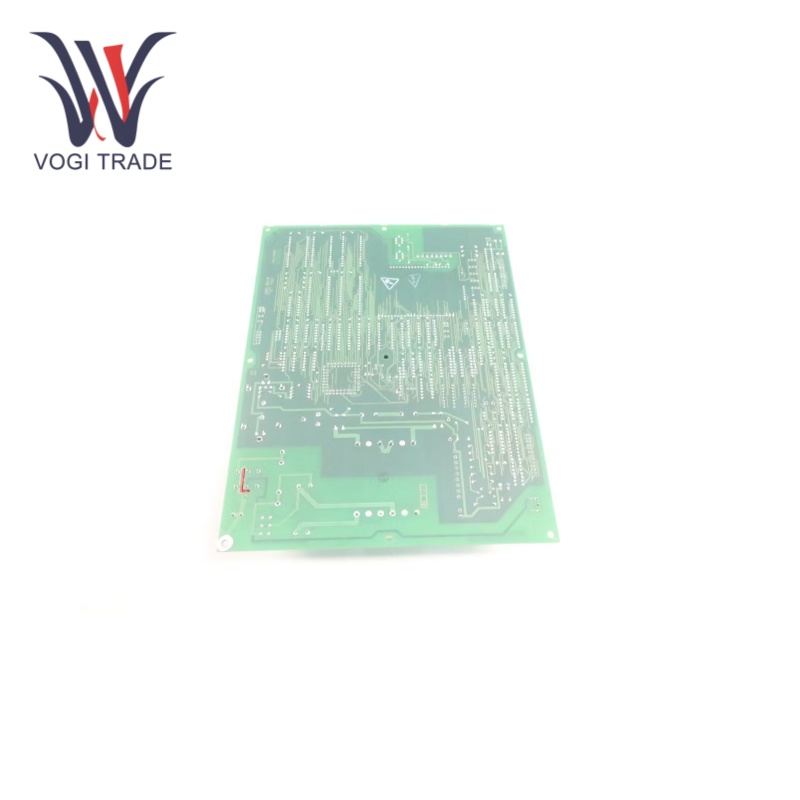

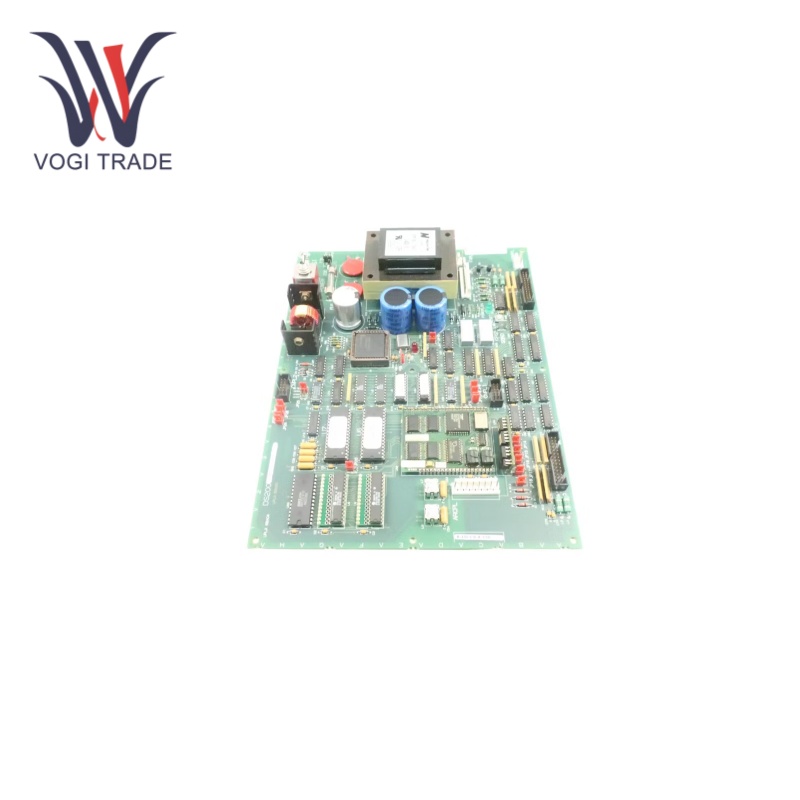

GE DS200UPLAG1BDA

Operation Parameters

Functional Acronym: UPLA

PCB Coating: Normal Coating

Assembly Type: Normal Assembly

Series Grouping: Mark V, Group 1

Connectors: Two 26-pin connectors, one 8-pin connector

Additional Components: One fuse, one toggle switch, one reset button

Customization Options: 17 jumpers and 16 switches for configuration

Product Features

High-Speed Data Processing: Equipped with advanced microprocessors, it can handle complex data streams at high speeds. Doing so allows GE DS200UPLAG1BDA to receive real-time data from sensors and other input types, and to act quickly and make new decisions in automated systems.

Several Communication Protocols: Ethernet, RS-422, RS-485, etc. These allow seamless integration with a variety of other industrial machinery such as programmable logic controllers (PLCs), human-machine interfaces (HMIs) and Supervisory Control and Data Acquisition (SCADA) systems. This ensures effective data interoperability and synchronized control.

Integrated Diagnostic Mechanism: The device is designed with self-diagnostic features. GE DS200UPLAG1BDA triggers the detection of internal faults, overheating, and abnormal operating conditions. But if something goes wrong, it returns error codes and detailed diagnostics, aiding in the speedy identification and correction of problems, reducing downtime.

Installation

Durable : It is designed with rugged mounting fixtures for quick installation, on DIN rails or to control panels. Summary Make sure that all components are properly aligned and that the appropriate fastening hardware is utilized to avoid vibration during use.

Orientation: Install per the manufacturer's instructions. Certain internal parts such as heat sinks or cooling fans may need to be positioned in a particular way to operate effectively.allowing your device to dissipate heat effectively, for example.

Wiring: Follow the diagram provided, exactly. Attach the power supply wires to the correct terminals, ensuring there is no reverse polarity. Use shielded cables for signal and communication wires, and run them away from high power lines.

Propagation: A solid path to ground is established through the device chassis. This is not just a safety thing; It helps stabilize the operation by dissipating electrical noise and preventing electrostatic discharge.

Application range

Industrial automation: GE DS200UPLAG1BDA is commonly used to control production lines in manufacturing plants. It is capable of controlling conveyor belt speed and synchronization, robotic arm operation, and machining tools to improve productivity and product quality.

Power Generation: GE DS200UPLAG1BDA can find its application in all power plants where turbine generators and voltage regulators and power distribution systems are controlled. It helps provide consistent power generation and delivery to the grid.

Oil and Gas Sector: GE DS200UPLAG1BDA controls pumps, compressors, and valves in refineries and drilling platforms. It is designed for high pressures, corrosive materials and explosive atmospheres to ensure that critical equipment operates safely and efficiently.

Troubleshooting

Power-On Related Issues:In the event that the device does not power on, ensure that all wires are properly connected to the power source and verify voltage at the input terminals. Make sure the power switch is not turned off and that no fuses have blown or circuit breakers tripped. This may indicate that the internal power supply has failed and would need to be checked out by a qualified technician.

Communication Issue: If you face communication issues with the other devices, cross-check the communication protocol configuration on the GE DS200UPLAG1BDA and the network device. If possible, use a communication tester to help determine whether the issue lies in the hardware or software layer.

Performance Anomalies: If the device is not delivering the anticipated level of control precision or acting erratically, begin by looking for external interference sources. Check for strong magnetic fields nearby, radio frequency interference, or electrical noise generators. Check the temperature, humidity and sensor connections corresponding to the controlled parameters (like pressure sensors, flow meters) for proper feedback. Finally, review and tweak the control algorithm settings and parameters to ensure they stay adapted to the existing operating conditions.
