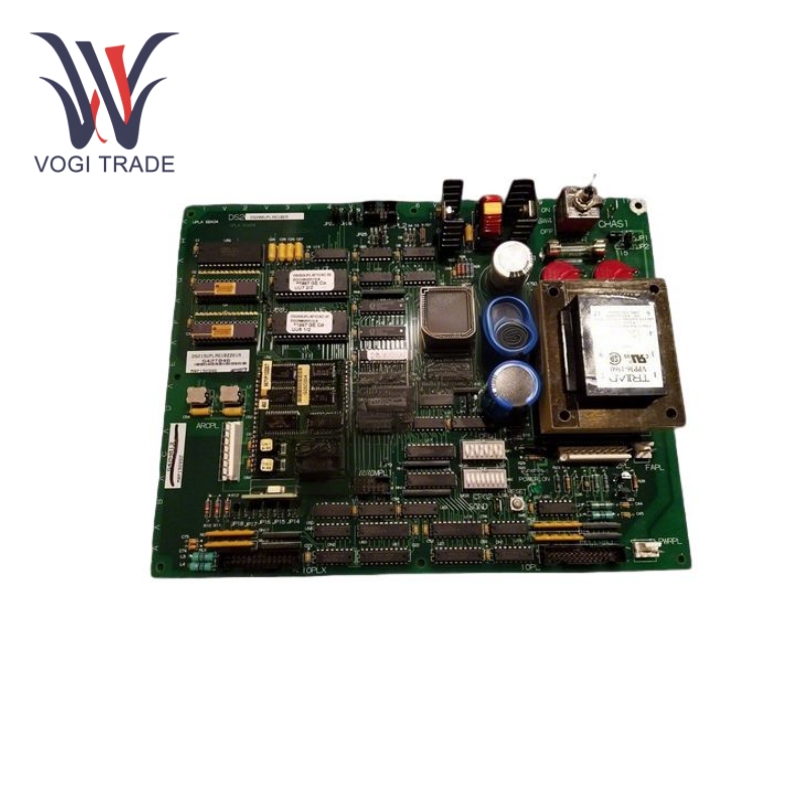

GE DS200UPLAG1BEA

Operation Parameters

Input Voltage: 115/230 VAC, 50/60 Hz

Output Voltages: +24V and +5V DC

Connectors: Two 26-pin connectors for ribbon cables, one 8-pin connector

Configuration Options: Equipped with 17 jumpers and 16 switches for customization

Product Features

Precision Control Capability: It adopts advanced control algorithms and can accurately control different industrial processes. Regardless of whether this relates to controlling the flow rate of fluids, the rotational speed of machinery or the position of automated actuators, GE DS200UPLAG1BEA makes certain that the rate of deviation away from set targets is at an absolute minimum, which contributes to elevated levels of precision in the entire process.

Powerful Communication Interfaces: Comes with multiple communication protocols support such as Ethernet, RS-422, and RS-485. These interfaces allow seamless communication with other industrial equipment like PLCs, HMIs, and SCADA systems. This enables both efficient data transfer and coordinated control among complex industrial networks.

Comprehensive Self-Monitoring and Diagnostics Features: The device has extensive self-monitoring capabilities. (FDT) and over voltage/over temperature/low voltage/under temperature protection. In case of a failure, GE DS200UPLAG1BEA quickly produces detailed error codes and diagnostic messages, making it easier to identify and fix problems quickly and with lower downtime.

Installation

Mechanical Installation: Standardized mountings ease the installation on DIN rails or control panels. Keep in mind here that you'll have to do it in such a manner that there is no vibration or movement when the flywheel is operating.

Orientation: Install in accordance with the manufacturer's instructions. Internal structural hardware — such as heat sinks or cooling fans — may require a specific orientation to perform optimally, especially in terms of efficiently dissipating heat.

Wiring: Follow the supplied wiring diagrams carefully. Connect the power supply wires to the appropriate terminals, ensuring correct polarity. Geometrics, for signal and communication wires, use shielded cables and route them as far as possible away from high-power lines.

Grounding: All grounding connections to the device chassis must be reliable. This protects against electrical noise and electrostatic discharge that could affect stable operation.

Application range

Industrial Automation: GE DS200UPLAG1BEA is used extensively in manufacturing plants to control production lines. This can then be used to control the speed and synchronization of conveyor belts, robotic arms and machining tools, increasing productivity and product quality.

Power Sector: Used in controlling and monitoring, in power substations, and grid control centers. GE DS200UPLAG1BEA can help regulate voltage levels, switchgear operations, and power factor correction, thus providing reliable delivery of electricity.

From Transport systems: GE DS200UPLAG1BEA controls signals, track switches and train propulsion systems in railway and subway control systems. It is designed to cope with the vibrations and extreme environmental conditions that transport infrastructure experience, allowing for safe and efficient operation.

Troubleshooting

Power-On Problems: If the device does not power on, check the power supply connections and make sure the correct voltage appears at the input terminals. Just remember to check that the power switch is in the right position as well as any fuses that may have blown or circuit breakers tripped. If the voltage is between the specs but the device still doesn't power on, it could be a sign of internal power supply failure, which should be investigated further by a qualified service technician.

Communication Error: When the device having difficulty in communicate with other devices, firstly check the communication protocol settings of GE DS200UPLAG1BEA and the connected equipment. Look for differences in baud rate, data bits, stop bits, and parity. Check the cable connections for any loose or damaged wiring. If you can, use a com tester to help isolate the problem between the hardware and software layers.

Performance Anomalies: If the device fails to control as desired, or behaves inappropriately, firstly look for external interference sources. Search for nearby strong magnetic fields, radio frequency interference, or electrical noise generators. Check the connections for the sensors associated with the parameters being controlled (e.g., speed sensors, position encoders, etc.) to verify that feedback is being received accurately. Also verify that the adjustment of control algorithm settings and constants is suitable for the current operating conditions
