GE DS215SDCCG1AZZ01B

Product Overview

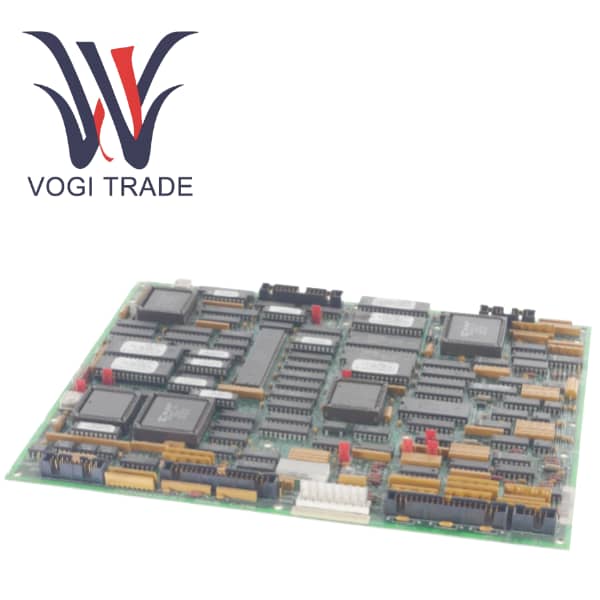

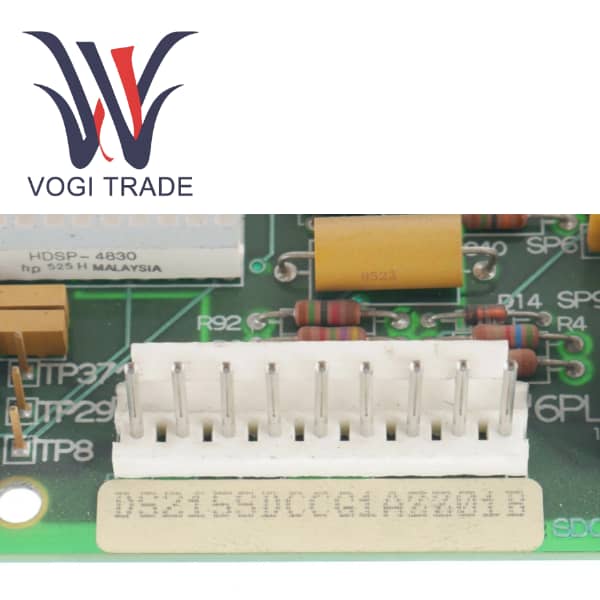

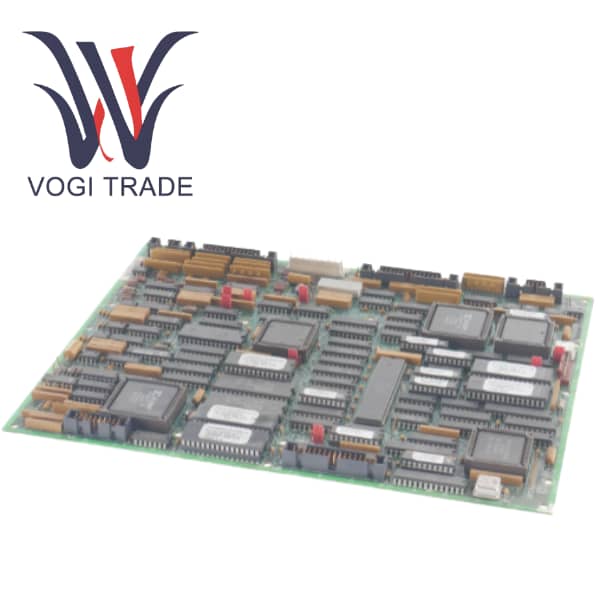

DS215SDCCG1AZZ01B is a drive control card (SDCC) produced by GE Motors & Industrial Systems for its DIRECTO-MATIC 2000 series industrial drives. GE drive control card serves as the central intelligent and main control unit for the AC2000, DC2000 and EX2000 drive systems. The "G1" in its part number indicates that it is the full-featured version of the SDCC series, specifically designed for complex drive applications that require high-performance regulation and rich I/O capabilities.

As the brain of the system, SDCC integrates three dedicated microprocessors to manage all aspects of driver operation, from advanced user interfaces and speed loops to low-level motor control algorithms. The DS215SDCCG1AZZ01B is a key component that converts control instructions into precise motor power output, ensuring efficient and reliable operation in harsh industrial environments.

Product Function

The division of labor among the three-processor architecture DCP, MCP and CMP achieves high response speed and computationally intensive control, thereby supporting advanced functions such as precise motion control and complex motor control algorithms.

Comprehensive I/O processing, the board card can interface with various signals, including:

Digital I/O for commands (run, jog) and status.

Analog I/O for speed reference, feedback (tachometer) and instrument output.

Encoder feedback for precise position and speed control.

Motor current and voltage feedback for closed-loop regulation.

Serial communication for programming and networking (RS-232, RS-422).

Integrated LAN connection, connected to the SLCC card through a 3PL connector, thereby achieving system integration and networking in the factory automation environment.

Advanced feedback processing is reflected in the support for multiple feedback devices, including analog tachometers and single-ended and differential encoders (with marked channels on the G1 pin). The feedback VCO circuit can be configured for different sensor types.

Flexible configuration: Control logic and functions can be widely customized through hardware jumpers and software parameters using dedicated configuration tools (ST2000, GE Control System Toolbox, LynxOS driver configurator).

The powerful protection and diagnostic functions enable it to be equipped with a hardware watchdog timer, reset circuit and LED indicator light, which can provide detailed fault indication and thus quickly eliminate faults.

Comparison with Similar Products

The primary comparison is with other group numbers of the SDCC card, particularly the G3 variant.
