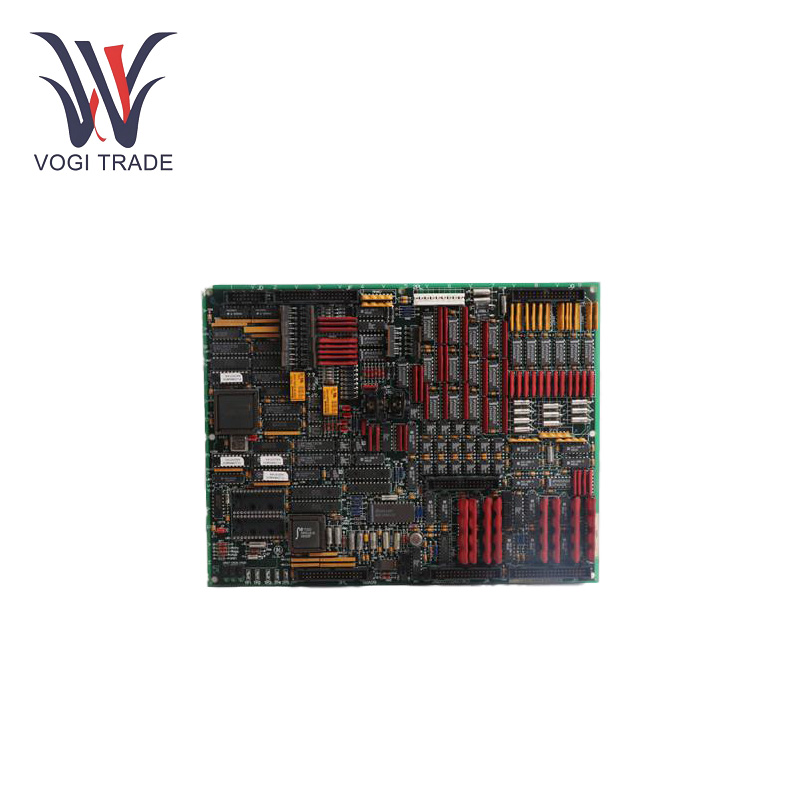

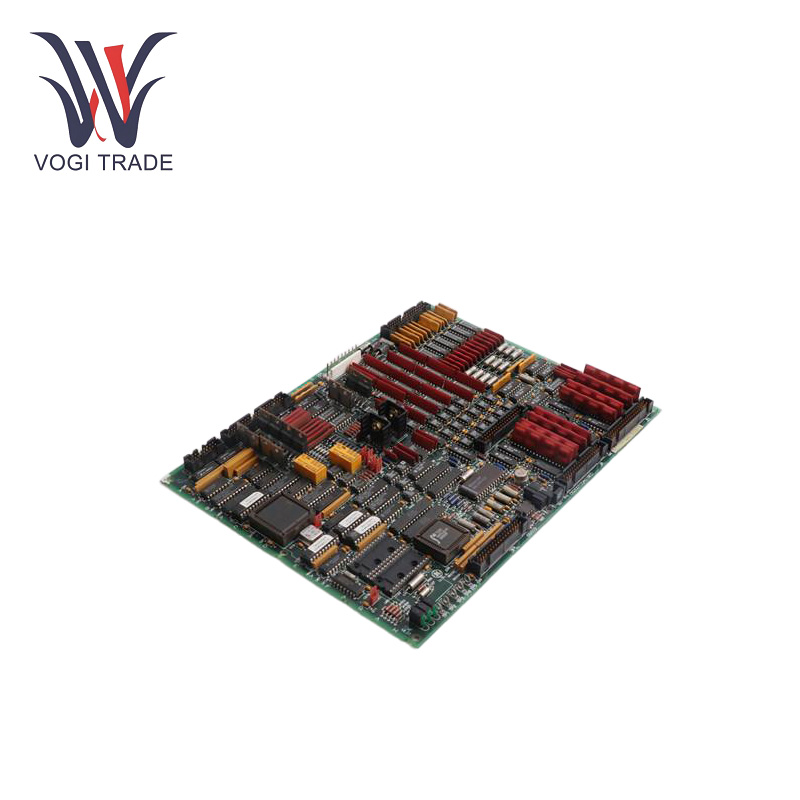

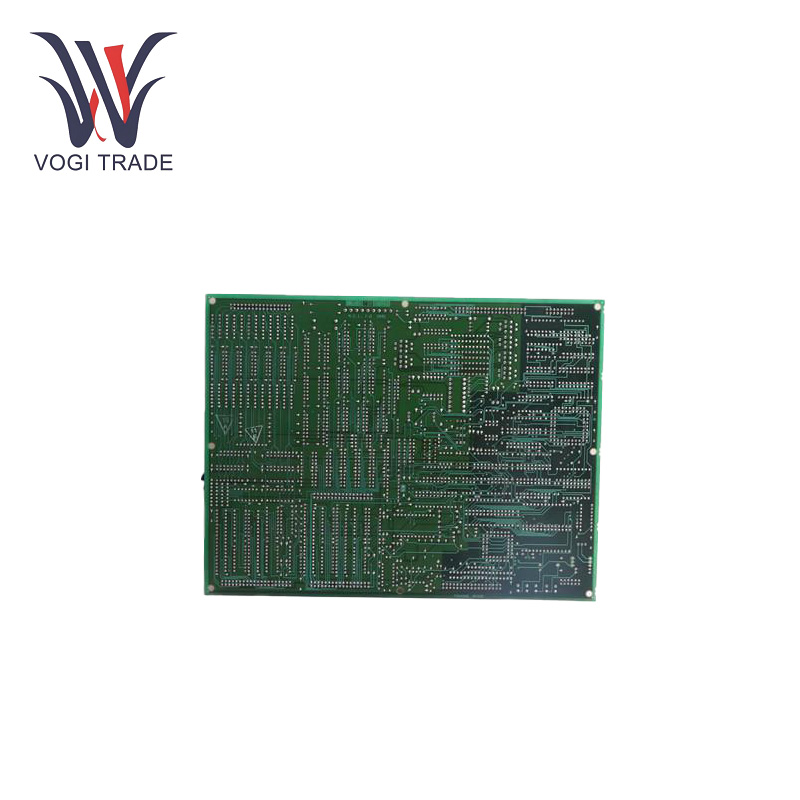

GE DS215TCQAG1BZZ01A

Operating Parameters

Rated Input Voltage: 24 VDC.

Power Usage: 15-30 W.

Ambient Operating Temperature Range: −40 °C to +70 °C.

Storage Temperature: -40°C to +85°C.

Communication Ports: RS-232, RS-485 (Modbus and proprietary GE protocols supported).

Digital I/O: 8 digital inputs and 8 digital outputs.

Analog I/O: 4-20 mA analog inputs.

Product Features

Board Functionality: The function ofGE DS215TCQAG1BZZ01A  is to monitor and control turbine performance by ensuring system efficiency for smooth operation while protecting the equipment from damage. It controls parameters such as speed, load, temperature and pressure to ensure that the turbine avoids unsafe operating conditions.

Real-time Data Collection: It collects data from turbine real-time sensors, provides understanding, and notifies of deviations from safe or optimal operating conditions.

Fault Detection and Diagnostics: The board provides extensive diagnostic capabilities that can detect faults in turbine components, control signals, sensors or actuators. It allows proactive actions to reduce risk and maintain operations.

Unified Communications: The GE DS215TCQAG1BZZ01A  provides smooth integration with other control system components using RS-232 and RS-485 communication protocols, allowing different parts of the turbine control system to communicate.

User Interface Support: The board is compatible with UI software for viewing and modifying turbine parameters. This enables operators to modify operating limits and thresholds, improve performance, and view diagnostic data.

Robustness and Redundancy: The board is designed for industrial environments with redundancy and fault tolerance features to ensure reliable operation even during component failures.

Overheat and High Pressure Prevention: Overheat and high pressure can have catastrophic effects on turbines.

Advanced Alarm Management: Advanced alarm management features sense abnormal conditions in turbines and provide early warnings to operators.

Installation

Mounting the Board: GE DS215TCQAG1BZZ01A  can be rack or panel mounted. Ensure the board is mounted with the correct protection from environmental factors; this means the board should be mounted in a chassis or control cabinet. Once mounted, connect the board's input and output terminals. Input signals will be provided by sensors that monitor parameters such as temperature, pressure, and speed, while output signals will actuate actuators and other turbine components. Ensure all connections are secure and properly shielded to prevent interference with the signals.

Power Connections: The board requires a constant 24 VDC power supply. Connect the power terminals to the system at the appropriate voltage and current levels. Test that grounding is correct to avoid surges or noise.

Network Integration: Connect the board to a network using its RS-232 or RS-485 communication port to interact with the overall control system. Check the underlying communication settings  to confirm that data can be properly sent from the board to and received by the central controller.

Configuration and Calibration: After the hardware is installed, configure the board through its software interface to set the control parameters according to the specifications of the turbine system. Calibrate sensors and I/O devices for accurate readings.

Initial Tests: Run some tests to ensure the board is functioning properly. Check that all I/O channels are configured and that the board is communicating with the control system. Test that turbine parameters are being read correctly and that the board is moving on time in response to control signals.

Troubleshooting

Power or communication failure: Check that the 24 VDC power supply is functioning properly. Verify that the communication cable is properly connected to the board and the control system. Also, verify your communication configuration .

Fault alarms triggered: Check the sensors connected to the board to ensure that they are transmitting accurate data. Recalibrate or replace faulty sensors if necessary. The alarm log will contain fault codes that can help identify the process.

Turbine operation is erratic: Check the control parameters of the configuration software and ensure that the sensors are reading properly. Recalibrate the sensors or replace them if necessary.

Overheating: Place the board in a cool location and ensure that there is adequate air flow around it. Monitor turbine load to prevent damage due to overloading. Improve the cooling system if necessary.

Signal interference: Ensure that the communication cables are well shielded. Run communications over twisted pair cabling away from high-power cabling routing to minimize EMI.

Application range

Power Generation: The GE DS215TCQAG1BZZ01A is used in power plants, especially steam, gas, and hydro turbines. This maximization of the turbines allows for efficient production of stable and reliable electricity.

Petrochemical and Oil & Gas Industries: Turbines are used in these industries for various processes, including compression, pumping, and power generation. It helps maintain the performance of turbines in the field in accordance with the safety standards and reliability of the industrial complex.

Manufacturing: Turbines are used in large manufacturing plants to drive machinery including compressors, blowers, and other equipment. The control board improves the efficiency of manufacturing processes by optimizing the operation of turbines.

Chemical and Process Industries: Turbines are often used to drive pumps, compressors, and other equipment. GE DS215TCQAG1BZZ01A prevents turbines from operating in unsafe thermal and mechanical areas to maintain system integrity.

Marine Applications: Also used in marine turbine systems for propulsion and power generation on ships and offshore platforms.

Mining and Cement Industries: Used in processes such as grinding, material handling and cement production. Control and monitoring for optimal turbine performance
