Brand: GE Description: HE700GEN200 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 2 year Inventory Qty: 17 Payment Term: T/T Shipping Port: Shenzhen GE HE700GEN200 is used in Mark VI and other GE control-system cabinets to bridge proprietary IONet communication with standard VME bus architectures.

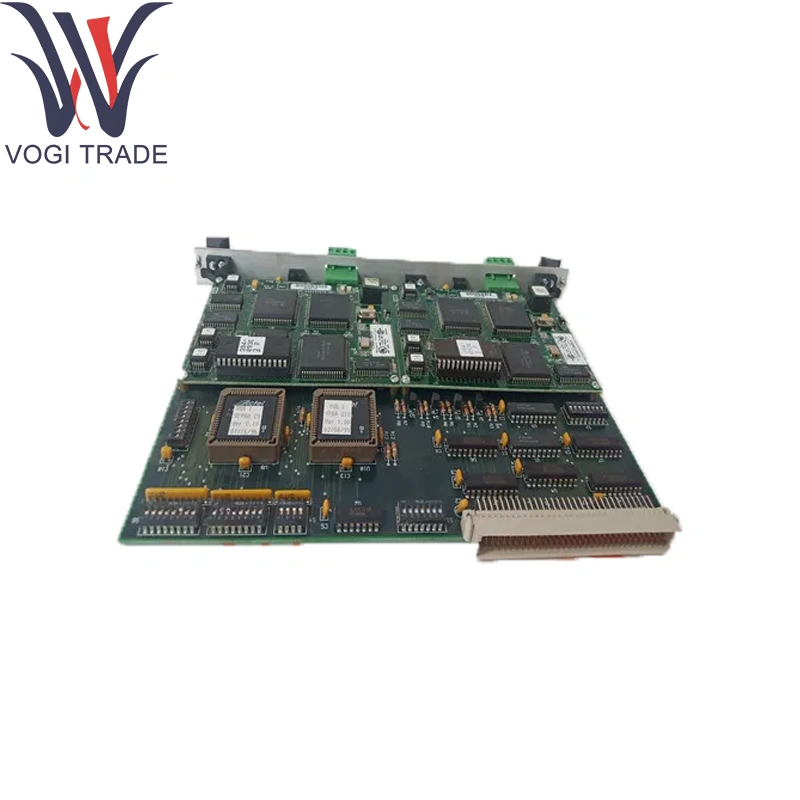

The HE700GEN200 is a dual-channel Genius bus interface module compatible with the GE Fanuc VME rack. It belongs to the Horner uGENI VME series card and is the core communication unit of the Mark VI steam turbine control system. The module is equipped with a dual GNI2C1 sub-board, which can be flexibly configured through the on-board DIP switch. The screw terminals on the front panel ensure stable and reliable on-site wiring. Relying on the VME backplane, it enables high-speed data interaction between the controller and on-site sensors as well as I/O sub-stations. The HE700GEN200 features an industrial-grade multi-layer circuit board design with strong anti-interference ability. It is suitable for power and heavy industry automation scenarios, capable of collecting equipment status and transmitting control instructions. With a compact structure and convenient plug-and-pull maintenance, it stably meets the long-term continuous operation requirements of the industrial sector
|
Manufacture |
GE |
|
Model Number |
HE700GEN200 |
|
Ordering Number |
HE700GEN200 |
|
Catalog |
Mark VI |
|
Description |
GE HE700GEN200 VME Interface Module |
|
Country Of Origin |
USA |
|
HS Code |
8471800000 |
|
Dimension |
233 × 160 mm |
|
Weight |
0.21 kg |
Technical Parameters
Interface Module (VME GENIUS Gateway – GE HE700GEN200)
Interface Type: VME64x dual-channel GENIUS bus, compatible with GE Fanuc VME racks
Supply Voltage: 5 V DC ± 5 %
Current Consumption: 200 mA typical (≈ 1 W)
Connectors: Screw-type front-panel I/O terminals; backplane edge connector to VME slot
Configuration: DIP switches for channel selection and mode setup
Environmental:
Operating Temp: 0 °C to +60 °C
Humidity: 5 %–95 % RH non-condensing
Product function
The GE HE700GEN200 serves as a protocol-conversion gateway, mapping GE IONet frames to the VME bus and vice versa. It enables deterministic, low-latency communication between Mark VI/VIe control CPUs and VME-based I/O boards without requiring software drivers.
Core supporting modules
GE HE700GEN200 is typically installed in a VME rack alongside:
GE Mark VI CPU modules (e.g., IS200TPROH1C)
VME processing boards (DSP, logic cards)
IONet Ethernet switches (IS420ESWB series)
Extension components
For GE HE700GEN200:
DIP-Switch Kits for rapid channel remapping
Front-Panel Connector Modules for field wiring
VME Backplane Adapters (slot guides, extraction handles)
Software support
GE HE700GEN200:
Fully transparent to Mark VI/VIe software—no firmware updates or drivers needed
Presence and version ID auto-detected at power-up; mismatches flagged in controller diagnostics
