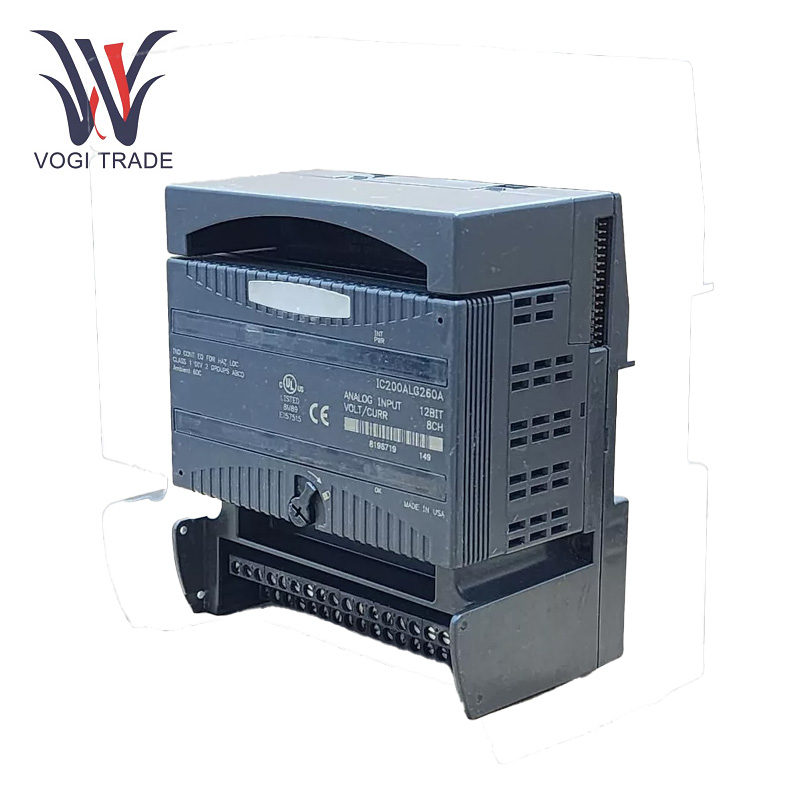

Brand: GE Description: Analog Input Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 13 Payment Term: T/T Shipping Port: ShenZhen With 8 channels, GE IC200ALG260 is designed to run current inputs in high resolution, which means users can gather vital data from sensors monitoring temperature, pressure, and flow.
|
Manufacture |
GE |
|
Model Number |
IC200ALG260 |
|
Ordering Number |
IC200ALG260 |
|
Catalog |
Versamax |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
11cm x 7cm x 4.5cm |
|
Packing Dimension |
13cm x 9cm x 7cm |
|
Weight |
0.8kg |
Technical Parameter
Channels: 8 single-ended channels.
Voltage Input Range: -10VDC to +10VDC.
Current Input Range: 4mA to 20mA.
Resolution: 12 bits, 2.5mV， 8 counts in bipolar voltage mode。
Input Impedance: 126kOhms in voltage mode, 200Ohms in current mode.
Accuracy: ±0.3% of full scale.
Channel-to-Channel Crosstalk Rejection: Minimum 30dB.
Update Rate: 0.4 milliseconds.
Input Filter Response Time: 5.0 milliseconds.
Functional Characteristics
Hot Swappable: GE IC200ALG260 can be hot-swapped, allowing for the replacement or addition of modules without shutting down the entire system, improving system maintainability and availability.
Fast Update Rate: with 0.4 ms update rate, switching on the spot in response to input signal changes, it ensures data acquisition and processing timeliness.
Internal Power Supply:GE IC200ALG260 operates without an external power supply, and its internal power is provided by the backplane. However, in the current mode, isolated inputs may require a separate power supply.
Fault Diagnosis
LED Indicator Diagnosis:An internal power (INT PWR) LED and a normal (OK) LED are included on GE IC200ALG260 for diagnostic troubleshooting. The INT PWR LED shows the internal power status of the analog field-side circuit, while the OK LED indicates the backplane power status. If the corresponding LED does not light or the flash is abnormal, it is possible that the problem with the power supply or the module is faulty.
Self-Diagnostic Function: The built-in self-diagnostic function of GE IC200ALG260 can work continuously to monitor the working status of the module and its components, and can detect various faults such as under-range, over-range, open circuit, power loss, and non-volatile memory failure. The module will report the fault information through the diagnostic system when the fault occurs, and the operator can view the fault code or alarm message to locate and solve the problem quickly.
External Testing Equipment: Based on the error code and module state presented by this function, it is possible to quickly narrow the range of module inspections to compare with the expected module performance. Therefore, checking whether the built-in diagnostic function of an electronic module is available is the most effective method to pinpoint any issues with the module.
Application Fields
Manufacturing Industry: GE IC200ALG260 can be applied in the production processes to accept analog input signals from various sensors and actuators, such as temperature, pressure, and flow sensors, and the input signals are converted into digital data, which is used to monitor the control of various parameters in the production process, such as temperature, pressure, flux, and speed, thereby ensuring the quality and stability of product production.
Chemical and Petrochemical Industry: It is used to just for receiving the analog input signals from reactors to storage tanks and various other equipment such to monitor and control the temperature, pressure and other parameters in the chemical reaction and process, thus ensuring safety and efficiency of the process.
Energy Industry: GE IC200ALG260 can be applied in energy industry to accept analog input signals from generators, transformers and other appliances, and is utilized for monitoring and controlling the voltage, current, power and other parameters of the power system, in order to protect the stability of power grid operation and power quality.
