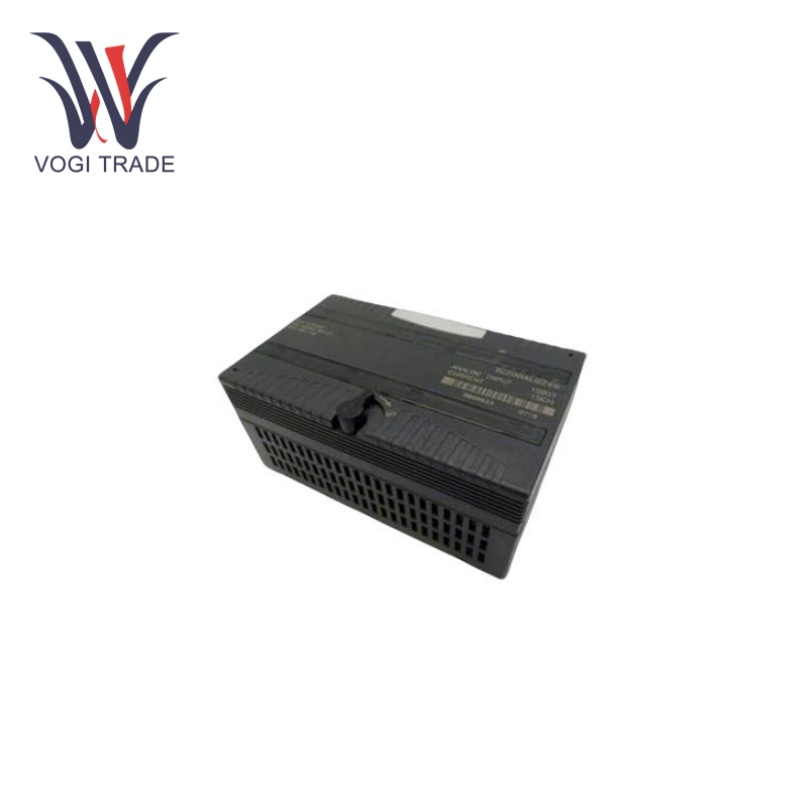

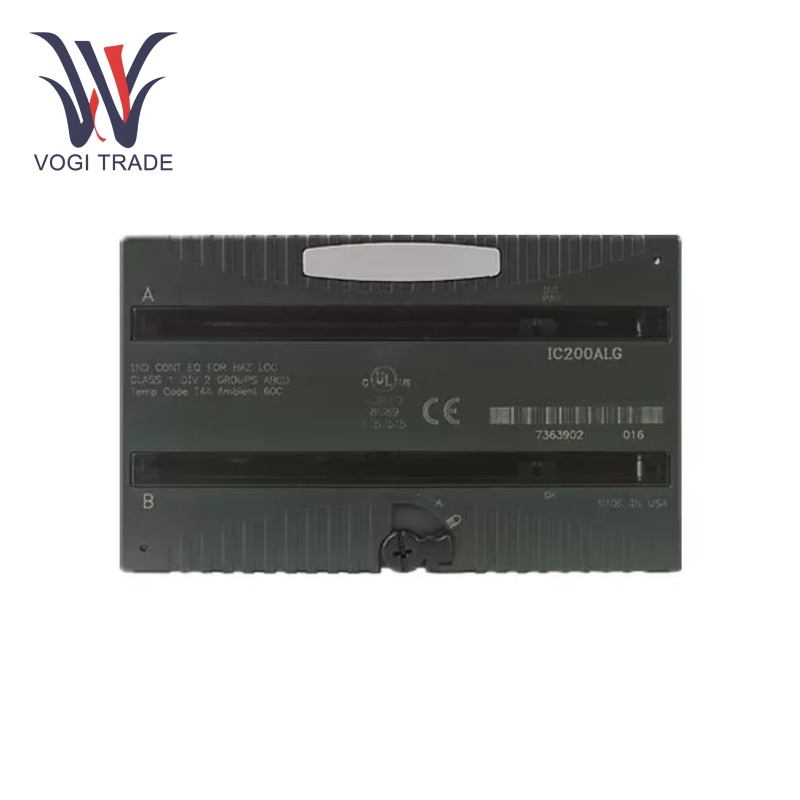

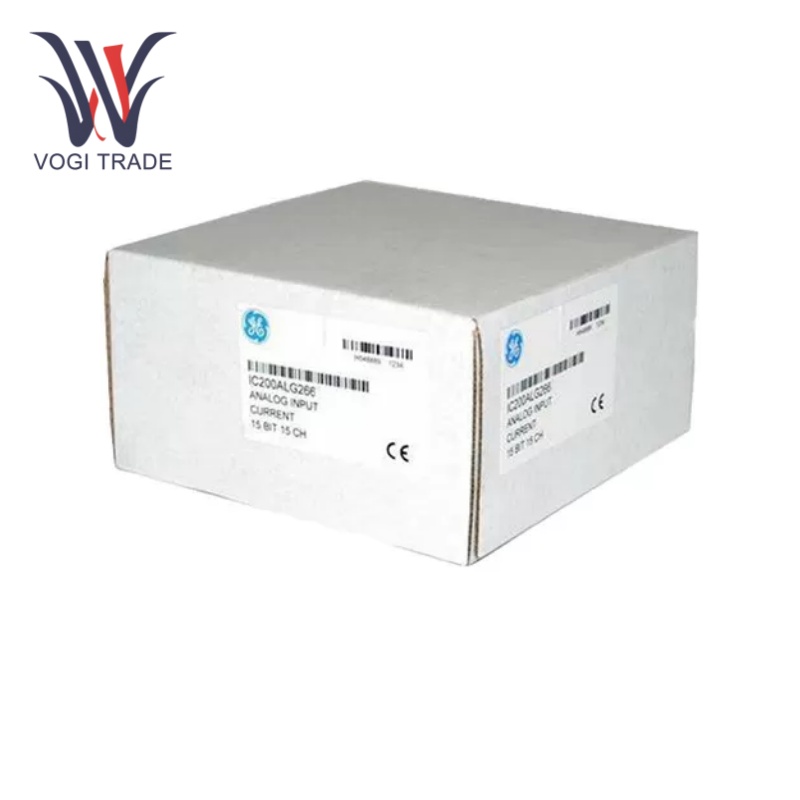

Brand: GE Description: Analog Input Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 13 Payment Term: T/T Shipping Port: ShenZhen GE IC200ALG266 offer precise and reliable data transmission, which is an indispensable component for optimizing automation in demanding industrial settings. Its built-in isolation protects against electrical interference, ensuring stability in challenging environments.
|
Manufacture |
GE |
|
Model Number |
IC200ALG266 |
|
Ordering Number |
IC200ALG266 |
|
Catalog |
VersaMax |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
13cm x 12cm x 4.5cm |
|
Packing Dimension |
15cm x 9cm x 7cm |
|
Weight |
0.8kg |
Technical Parameter
Isolation Voltage: 1500V
Power Supply: 24V DC
Input Channels: 15 single-ended input channels.
Input Signal: Accepts -10 to +10 VDC input signals.
Resolution: 15 bits, 0.3125mV per count
Filter Response: 32 Hz.
Update Rate: 7.5 ms.
Backplane Current Consumption: 150 mA.
Full Scale Accuracy: +/-0.3% .
Outstanding Advantages
Versatile: GE IC200ALG266 is capable of handling voltage and current input signals; hence a flexible input option is available. It is able to read signals from different kinds of industrial sensors, allowing for versatile system design.
Individual Channel Isolation: One group of 15 input channels, but all channels are individually isolated somewhat. However, if one channel fails, it will not cause other channels to fail, so GE IC200ALG266 is more reliable and stable.
Electromagnetic Interference Immunity: The galvanic isolation and signal conditioning protect the data from electrical noise and electromagnetic interference, which is commonplace in industrial settings.
High Accuracy and Precision: The high-resolution analog-to-digital conversion capability of GE IC200ALG266 ensures that even minor fluctuations in the input signal are detected, resulting in enhanced control and more reliable automation processes.
Fault Diagnosis
Open circuit detection: It is the ability to detect when an open circuit or broken connection occurs and notify the user that a sensor is missing or has become disconnected.
Internal Errors: GE IC200ALG266 can internally diagnose itself which means if there is any malfunction in its working or it cannot communicate properly with the controller such module can detect that and inform accordingly to help minimize down time.
Signal Out-of-Range: When an incoming signal is higher than or lower than the input range configured for the module, the system will report this condition for prompt intervention.
Application Fields
Industrial Automation: GE IC200ALG266 is widely used in various industrial automation control systems, including manufacturing, energy, transportation, water treatment, etc. to collect analog signals of sensors, transmitters, and other devices, and output the collected data to the CPU for processing and control, to ensure the normal operation and accurate control of the production process.
Building Automation: It can be used in building automation systems to convert the analog signals of various sensors like temperature, humidity, and light sensors, and send the information to the controller to achieve the automation control of building lighting, air conditioning, and ventilation systems.
Process Control Process control: GE IC200ALG266 can be used in process control industries such as chemical, pharmaceutical and food processing to monitor and control process variables such as temperature, pressure, flow rate and concentration, and provide accurate data support for the production process to ensure product quality and production safety.
