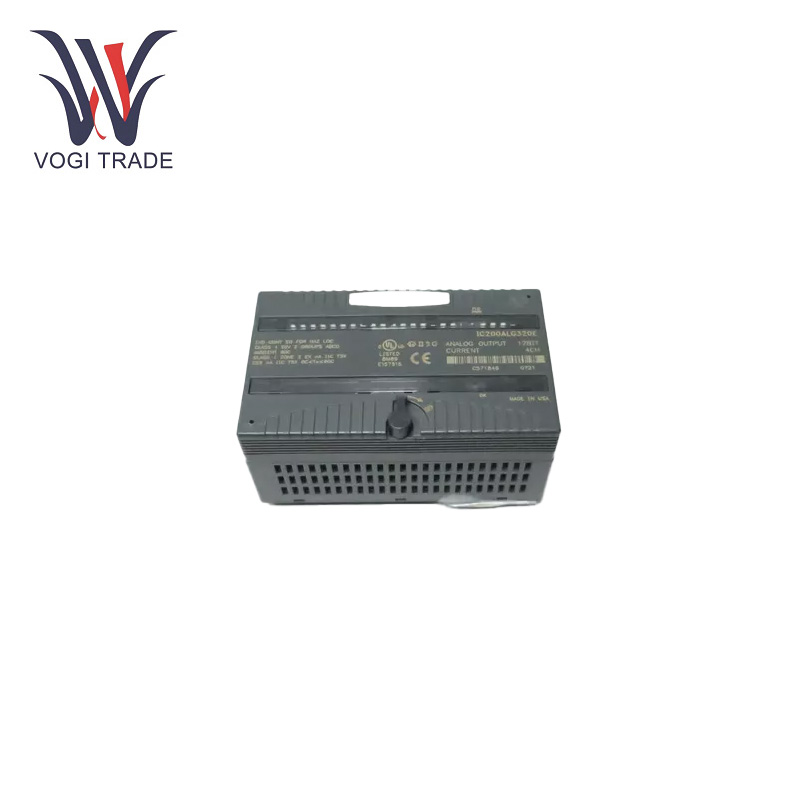

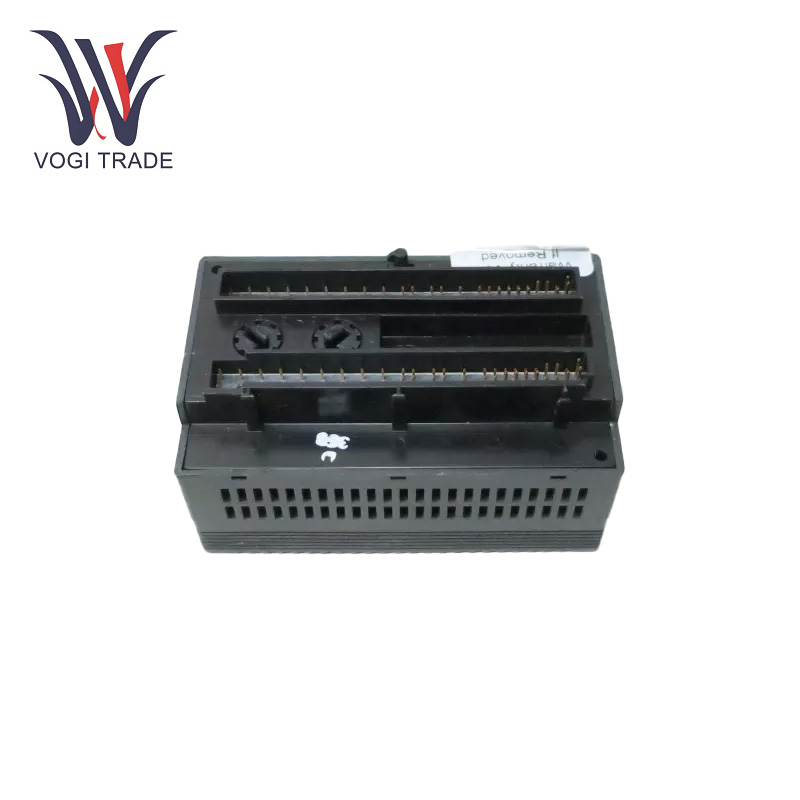

GE IC200ALG320

Technical Parameter

Channels: 4 single-ended channels.

Current Range: 4mA to 20mA, with a slight over-range capability of approximately 20.38mA per channel.

Resolution: 4µA， 8 counts.

Update Rate: 0.3 ms maximum.

External Power Supply: 18-30VDC.

Power Consumption: 160mA maximum。

Isolation Voltage: 250VAC continuous, 1500VAC for 1 minute.

Functional Characteristics

Excellent Isolation Performing: With an isolation between the user input and the logic and rack ground of 250VAC continuous and 1500VAC for 1 minute, GE IC200ALG320 can effectively isolate the interference between the input and output circuits and improve the stability and reliability of the entire system.

Output Over-range Ability: There is a small amount of over-range current for each channel, about 20.38mA current size can output to drive the output load, to provide some special load requirements of the additional drive capacity.

Multi-channel Output: Four single-ended analog output channels of GE IC200ALG320 can output 4mA to 20mA output current signal with a resolution of 4µA, allowing simultaneous control of multiple analog devices.

Fault Diagnosis

LED Indicator Diagnosis: The OK LED and the FLD PWR LED can be easily confirmed whether the field power and the backplane power are normal. If the corresponding LED does not light up or flashes abnormally, it may indicate a power supply problem or GE IC200ALG320 failure.

Current Output Monitoring: Seek to observe the output current of each channel on a regular basis. The output current is significantly larger or smaller than usual, or the module output is much less stable than the initial state. This may be due to a short-circuit fault in the module output circuit or the attached load circuit.

Diagnostic Tools: There are some diagnostic tools built in GE IC200ALG320 could generate report generating that could present the loss of user-side power fault in the field circuit. User can just analyze the diagnostic reports to locate and fix the problem quickly.

Application Fields

Process control: It is used extensively in process control industries, including chemical, petrochemical, and pharmaceutical, to produce analog current control signals to regulate valve openings, pump speeds, and heater heating power, thus achieving precise control of process parameters such as temperature, pressure, and flow.

Machine control:  GE IC200ALG320 can be used in fields such as machine tool manufacturing, packaging machinery, textile machinery, etc., to control the speed of motors, the position of cylinders, and the torque of clutches to achieve accurate control of the working situation of the machine and improve production efficiency and product quality.

Building Automation: In building automation systems, it can control the opening of air conditioning valves, the speed of fans, and the water flow of water pumps to achieve the regulation of indoor temperature, humidity, and air quality, and to improve the comfort and energy efficiency of the building.

Data Acquisition and Instrumentation: GE IC200ALG320 is also used in data acquisition systems and instrumentation, where it converts a digital signal to an analog current signal for output to analog meters, and other recorders or data acquisition devices, enabling a human-visible form of the digital signal for data display, recording, and analysis.
