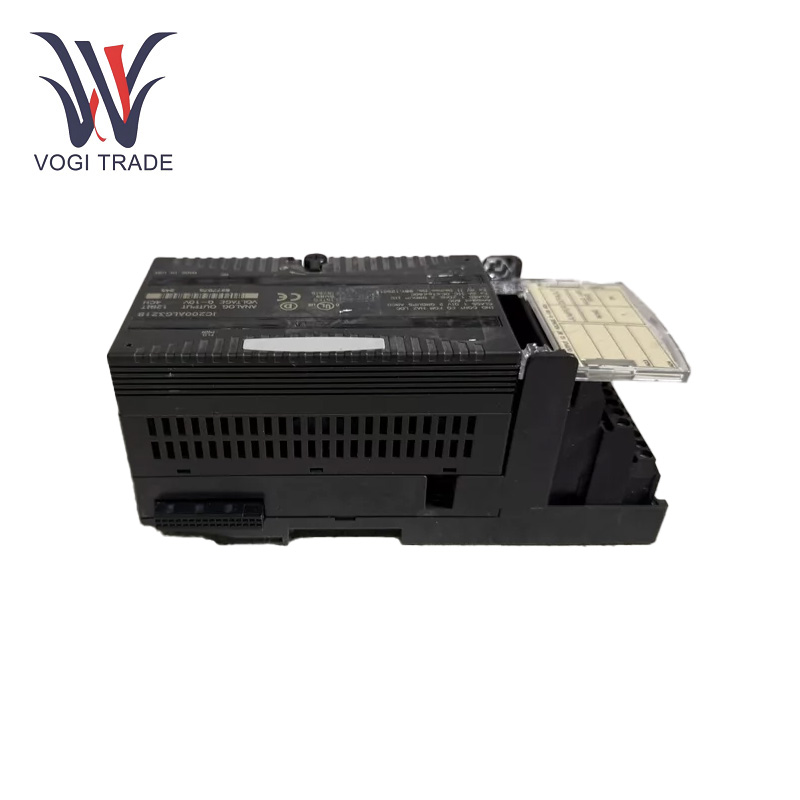

Brand: GE Description: Analog Current Output Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen GE IC200ALG321 is a 12-bit analog output module from the VersaMax series, featuring four single-ended channels that provide voltage outputs ranging from 0 to 10.24 VDC. It offers an update rate of 0.3 milliseconds, ensuring timely signal processing.
|
Manufacture |
GE |
|
Model Number |
IC200ALG321 |
|
Ordering Number |
IC200ALG321 |
|
Catalog |
VersaMax |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
9.4cm x 12.4cm x 7cm |
|
Packing Dimension |
13 cm x 15 cm x 9cm |
|
Weight |
2kg |
Technical Parameter
Number of Channels: 4 single-ended channels.
Output Signal: 0 - 10.24 VDC.
Resolution: 12 bits, 2.5 mV digital resolution.
Update Rate: 0.3 ms.
Required External Power: 18 - 30 VDC or 9.6 - 15 VDC, nominal 12/24 VDC.
Backplane Current Consumption: 50 mA.
Maximum Current Consumption: 210 mA.
Resistive Load: Minimum 5000 ohms.
Capacitive Load: Maximum 1 μF.
Isolation Rating: 250 VAC continuous, 1500 VAC for 1 minute.
Operating Temperature Range: 0 °C - 60 °C.
Functional Features
High Resolution: With 12-bit resolution, GE IC200ALG321 can generate a highly accurate output signal thereby providing accurate control — output signals.
Fast Update: 0.3 ms update rate for high speed response to fast input signals and high-speed applications.
Serial Connection: GE IC200ALG321 provides support for serial communication, which makes it easier to connect, thereby reducing circuit design complexity. Since the single-ended output channels can operate separately to satisfy varying control needs.
Status Indication: Having FLD POWER LED and OK LED to show status of available output Field Power and available backplane power, for faster status check and troubleshooting.
Isolation protection: Isolation between user input and logic ground and frame ground. GE IC200ALG321 allows 250 VAC continuous and 1500 VAC for 1 minute isolation voltage which can effectively protect the module and other equipment from electrical interference and damage.
Application Areas
Power Industry: It is used in power plants and substations to monitor and regulate parameters like voltage and current, and to control generators output and transformers operation. In power distribution systems, GE IC200ALG321 can also be used to control the opening and closing of circuit breakers and the adjustment of reactive power compensation.
Industrial automation: It is extensively utilized in industrial automation production lines for controlling the speed of motors, valve opening and closing, mechanical arm position, and more. In the hit of such as automobile manufacturing, paint robot's move speed, paint valve opening degree control can be applied, can get rid of painting ball quality.
HVAC Systems: GE IC200ALG321 is used for controlling temperature, humidity, and air volume in heating, ventilation, and air conditioning systems. It can then control the energy-saving and comfortable control by adjusting the compressor speed of the air conditioner and the opening degree of the air damper.
Process Control: It is used in chemical, petroleum, and food processing industries for process control like liquid level control, pressure control, and flow control. GE IC200ALG321 can control the pumps, valves and other equipment required to operate accurately and keep the production process stable and the quality of the product.
